Title: Measuring vibrations: Why?


1

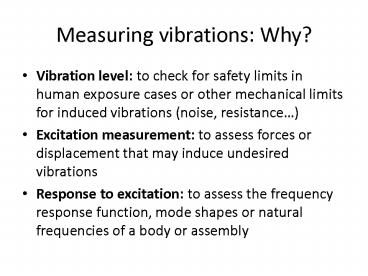

Measuring vibrations Why?
  • Vibration level to check for safety limits in
    human exposure cases or other mechanical limits
    for induced vibrations (noise, resistance)
  • Excitation measurement to assess forces or
    displacement that may induce undesired vibrations
  • Response to excitation to assess the frequency
    response function, mode shapes or natural
    frequencies of a body or assembly

2
Measuring vibrations how?
  • Low frequency lt 1Hz DISPLACEMENT
  • High frequency gt100Hz ACCELERATION
  • exceptions
  • Human exposure to vibrations ACCELERATION
  • Building structural integrity VELOCITY

3
Measuring vibrations how?
  • Peakmaximum absolute value
  • Peak-to-peakmaximum variation
  • Peak-to-averageor crest-factor, useful for
    impacts damage evaluations
  • RMSenergy content of vibration

peak
rms
0
4
Measuring vibrations how?
PSD
TFA
FFT
5
Measuring vibrations FRF
  • If measuring both the input X and the output Y is
    a viable solution, H(?)Y(?)/X(?) could be
    experimentally determined using spectral tools

Displacement/Force Velocity/Force Acceleration/Force
Admittance, Compliance Mobility Accelerance, Inertance
Force/Displacement Force/Velocity Force/Acceleration
Dynamic Stiffness Mechanical Impedance Apparent Mass
6
Modal Analysis Approaches
INPUT MEASURED INPUT NOT MEASURED
SINGLE SHOT Impact, sine sweep FRF EXPERIMENTAL MODAL ANALYSIS ImpactFFT/PSD NATURAL FREQUENCIES IDENTIFICATION
REPEATED MEASUREMENTS Pseudorandom FRF/PSD EXPERIMENTAL MODAL ANALYSIS No inputAveraged PSD OPERATIONAL MODAL ANALYSIS
7
Measuring vibrations Why?
  • Vibration level PSD/RMS
  • Excitation measurement PSD/RMS
  • Response to excitation
  • Mechanical properties FRF
  • mode shapes FRF
  • natural frequencies PSD/FFT/FRF
  • In most cases the analysis follow an incremental
    complexity approach, starting from a simple
    natural frequency identification to a full
    experimental modal analysis
