An example Apache Hadoop Yarn upgrade

1

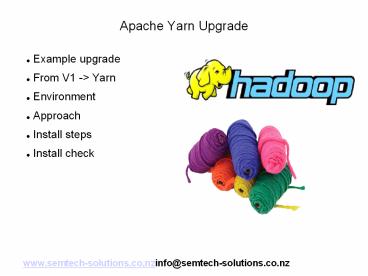

Apache Yarn Upgrade

• Example upgrade
• From V1 -gt Yarn
• Environment
• Approach
• Install steps
• Install check

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
2
Yarn Upgrade Environment

• Java OpenJDK 1.6.0_27
• Ubuntu 12.04
• Maven 3.0.4
• Hadoop 1.2.0
• Mahout 0.9
• Hadoop to install
• 2.0.6-alpha
• Full details are available from our web site site
• under guides folder

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
3
Yarn Upgrade Approach

• Install along side existing Hadoop on all nodes
• Use existing hdfs
• Change cfg files on all nodes
• Set up as single nodes and test via mapreduce
• Create cluster and test via mapreduce
• Check web GUI access
• Full details are available from our web site site
• under guides folder

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
4
Yarn Upgrade Install

• Build with Maven into a distribution directory
• mvn clean package -Pdist -Dtar -DskipTests
  -Pnative
• release created under ./hadoop-dist/target/hadoop
  -2.0.6-alpha
• Only skip tests after first build to speed
  things up
• Configure HOME/.bashrc
• HADOOP_COMMON_HOME
• HADOOP_HDFS_HOME
• HADOOP_MAPRED_HOME
• HADOOP_YARN_HOME
• HADOOP_CONF_DIR
• YARN_CONF_DIR
• MAPRED_CONF_DIR
• HADOOP_PREFIX
• PATH
• YARN_CLASSPATH

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
5
Yarn Upgrade Install

• Set up core-site.xml
• cd HADOOP_COMMON_HOME/etc/hadoop
• Alter values for
• fs.default.name
• hadoop.tmp.dir
• fs.checkpoint.dir

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
6
Yarn Upgrade Install

• Set up hdfs-site.xml
• cd HADOOP_HDFS_HOME/etc/hadoop
• Alter values for
• dfs.name.dir
• dfs.data.dir
• dfs.http.address
• dfs.secondary.http.address
• dfs.https.address

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
7
Yarn Upgrade Install

• Set up yarn-site.xml
• cd YARN_CONF_DIR
• Alter values for
• yarn.resourcemanager.resource-tracker.address
• yarn.resourcemanager.scheduler.address
• yarn.resourcemanager.scheduler.class
• yarn.resourcemanager.address
• yarn.nodemanager.local-dirs
• yarn.nodemanager.address
• yarn.nodemanager.resource.memory-mb
• yarn.nodemanager.remote-app-log-dir
• yarn.nodemanager.log-dirs
• yarn.nodemanager.aux-services
• yarn.web-proxy.address

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
8
Yarn Upgrade Install

• Set up mapred-site.xml
• cd MAPRED_CONF_DIR
• Alter values for
• mapreduce.cluster.temp.dir
• mapreduce.cluster.local.dir
• mapreduce.jobhistory.address
• mapreduce.jobhistory.webapp.address

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
9
Yarn Upgrade Install

• Set up capcity-scheduler.xml
• cd HADOOP_YARN_HOME/etc/hadoop
• Alter values for
• yarn.scheduler.capacity.maximum-applications
• yarn.scheduler.capacity.maximum-am-resource-percen
  t
• yarn.scheduler.capacity.resource-calculator
• yarn.scheduler.capacity.root.queues
• yarn.scheduler.capacity.child.queues
• yarn.scheduler.capacity.child.unfunded.capacity
• yarn.scheduler.capacity.child.default.capacity
• yarn.scheduler.capacity.root.capacity
• yarn.scheduler.capacity.root.unfunded.capacity
• yarn.scheduler.capacity.root.default.capacity
• yarn.scheduler.capacity.root.default.user-limit-fa
  ctor
• yarn.scheduler.capacity.root.default.maximum-capac
  ity
• yarn.scheduler.capacity.root.default.state
• yarn.scheduler.capacity.root.default.acl_submit_ap
  plications
• yarn.scheduler.capacity.root.default.acl_administe
  r_queue
• yarn.scheduler.capacity.node-locality-delay

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
10
Yarn Upgrade Install

• Start Resource Manager
• cd HADOOP_YARN_HOME
• sbin/yarn-deamon.sh start resourcemanager
• Start Node Manager
• cd HADOOP_YARN_HOME
• sbin/yarn-deamon.sh start ndemanager
• Test via map reduce job
• cd HADOOP_MAPRED_HOME/share/hadoop/mapreduce
• HADOOP_COMMON_HOME/bin/hadoop jar \
• hadoop-mapreduce-examples-2.0.6-alpha.jar
  randomwriter out

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
11
Yarn Upgrade Install

• Mapreduce job should end with
• BYTES_WRITTEN1073750341
• RECORDS_WRITTEN102099
• File Input Format Counters
• Bytes Read0
• File Output Format Counters
• Bytes Written1085699265
• Job ended Sun Aug 25 124535 NZST 2013
• The job took 89 seconds.
• Run this test on each node being upgraded

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
12
Yarn Upgrade Install

• Stop the servers
• cd HADOOP_YARN_HOME
• sbin/yarn-daemon.sh stop resourcemanager
• stopping resourcemanager
• sbin/yarn-daemon.sh stop nodemanager
• stopping nodemanager
• Alter Hadoop env
• cd HADOOP_CONF_DIR
• vi hadoop-env.sh
• add a JAVA_HOME definition at the end. i.e.
• export JAVA_HOME/usr/lib/jvm/java-6-openjdk-i386

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
13
Yarn Upgrade Install

• Alter HADOOP_CONF_DIR/slaves file
• Add details ( one per line ) for slave nodes
• Format the cluster
• DONT have the cluster running else you will lose
  data
• hdfs namenode -format
• Now proceed to start the cluster

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
14
Yarn Upgrade Install

• cd HADOOP_COMMON_HOME
• sbin/hadoop-daemon.sh --config HADOOP_COMMON_HOME
  /etc/hadoop
• --script hdfs start namenode
• cd HADOOP_COMMON_HOME
• sbin/hadoop-daemon.sh --config HADOOP_CONF_DIR
  --script hdfs start datanode
• cd HADOOP_YARN_HOME
• sbin/yarn-daemon.sh --config HADOOP_CONF_DIR
  start resourcemanager
• cd HADOOP_YARN_HOME
• sbin/yarn-daemon.sh --config HADOOP_CONF_DIR
  start nodemanager
• cd HADOOP_YARN_HOME
• bin/yarn start proxyserver --config
  HADOOP_CONF_DIR
• cd HADOOP_MAPRED_HOME
• sbin/mr-jobhistory-daemon.sh start historyserver
  --config HADOOP_CONF_DIR

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
15
Yarn Upgrade Install

• Use jps to check servers running
• jps
• 5856 DataNode
• 6434 Jps
• 5776 NameNode
• 6181 NodeManager
• 6255 WebAppProxyServer
• 5927 ResourceManager
• 6352 JobHistoryServer
• Then run the same mapreduce job on the cluster

www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
16
Web Access
www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
17
Web Access
www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
18
Web Access
www.semtech-solutions.co.nz info_at_semtech-solutions
.co.nz
19
