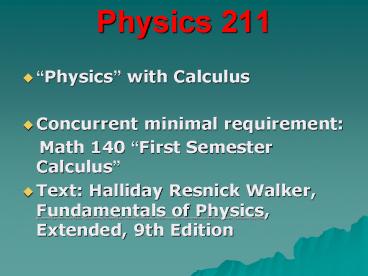

Physics 211

1
Physics 211

• Physics with Calculus
• Concurrent minimal requirement
• Math 140 First Semester Calculus
• Text Halliday Resnick Walker, Fundamentals of
  Physics, Extended, 9th Edition

2
Physics 211Introduction to Mechanics

• Course Overview
• Requirements
• Expectations
• Chapter 1

3
Course Requirements

• 3 exams 40
• Final 20
• Wiley Plus HW, Quizzes 20
• Laboratory
  20

4
Expectations

• Prepare for each class
• 1. Read text assignment ahead of time
• 2. Prepare assignments ahead of time
• 3. Make use of all resources available
• Text, website of text
• Course Webpage http//hadron2.bk.psu.edu
• class notes
• practice and homework problems
• office hours Wed 430 or by appt.
• email lpg10_at_psu.edu

5
The Major Player Isaac Newton 1642-1727

• Develops Calculus to explain the theory of
  Mechanics and Gravitation
• From his general statements on motion he develops
  calculus and shows that
• Planets follow elliptical motion
• They sweep out equal areas in equal time
  (conservation of angular momentum)
• From universal gravity he derives Keplers 3rd law

6
Johannes Kepler 1571 1630 Astronomer,
Physicist, Natural Philosopher etc
?
7
KEPLERS LAWS OF PLANETARY MOTION

• 1. All planets move in ellipses with the Sun at
  one of the focus
• 2. The radius vector drawn from the Sun to a
  planet sweeps out equal areas in equal times
• 3. The square of the period of orbit is
  proportional to the cube of the semi major axis
  of the elliptical orbit
• 4. !!! All of this is a consequence of Newtown's
  2nd Law

8
Once he knew the shape he describe how the planet
move on its orbit

• Keplers Second Law of Planetary Motion
• A line joining a planet and the Sun sweeps out
  equal areas in equal intervals of time.

9
So what do we have to master to understand these
concepts Course Overview

• Kinematics in 1, 2 (vectors) 3 Dim.
• Dynamics-Newtons Laws in 1, 2 (vectors) 3
  Dim.
• Work Energy Theorem KE, PE Conservation of Energy
• Momentum of 1 and 2 particle systems
• Kinematics and Dynamics of Extended Objects
• Rotational Motion of extended objects, Notion of
  Torques
• Equilibrium
• Oscillatory Motion
• Newtons Theory of Gravitation

10
Science Its Methods Theory and Measurement

• A scientific theory by definition is falsifiable
  it is setup to be replaced by a theory which
  supplants it by being1) More general in scope2)
  Able to explain specific cases that predate that
  theory
• 3) All of this is based upon experimental
  measurement!
• This is why have lab we will practice this use
  of data to verify or disprove the theoretical
  statements.

11
Measurement need a standard language and precision

• Fundamental Measure Base Units
• Length meters - m
• Mass kilograms kg
• Time seconds s
• Other units in terms of Standards
• e.g. F ma kg m / s2
• Systems
• SI System Standard International
• CGS (cm,grams,seconds)
• British (American)

12
Dimensional Analysis/Conversion of Units

• Dimensional Analysis
• Treat Dimensions like algebraic quantities
• Unit Conversion follows Dimensional Analysis

13
Significant Figures

• Rule No more significant figures than the least
  number in the problem
• e.g. Area of circle
• p3.14159 r2.1
• Areap r2 6.597340
• Exceptions
• ,-,x, any math operation allows gain or loss of
  significant figures

14
One Parsec (pc)The distance from which Earth
would appear to be one arcsecond from the Sun.
15
Example Problem 57 conversions
16
(No Transcript)
