EE 230: Optical Fiber Communication Lecture 13

1

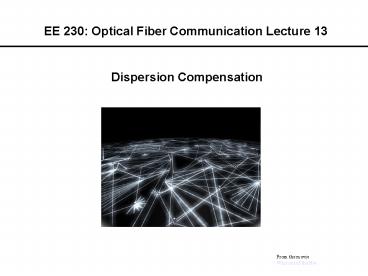

EE 230 Optical Fiber Communication Lecture 13
Dispersion Compensation
From the movie Warriors of the Net
2
Pulse Dispersion
3
Definition of chirp

• The chirp C is defined by the change in frequency
  d? due to the rate of change of the phase
• ? is the initial 1/e duration of the pulse

4
Spread of Gaussian Pulse
5
Dispersion Power Penalty at different Bit Rates
6
Degradation of a 40 Gb/s Signal
7
Ideal Dispersion Compensation Device

• Large negative dispersion coefficient
• Low attenuation
• Minimal nonlinear contributions
• Wide bandwidth
• Corrects dispersion slope as well
• Minimal ripple
• Polarization independent
• Manufacturable

8
Various Dispersion Compensation Techniques
9
Propagation of Gaussian Pulses
Input Pulse
Output Pulse chirped and broadened
b2lt0 for standard single mode silica fiber and
Ld 1800 km at 2.5 Gb/s and 115 km at 10 Gb/s
Upon further propagation the pulse will continue
to broaden and acquire chirp.
Input Pulse Already Positively Chirped
After some distance the chirp is removed and the
pulse assumes its minimum possible width
Optical Networks a Practical Perspective-Ramaswami
and Sivarajan
10
Spectral Shaping at the Transmitter
Optical Fiber Telecommunications IIIA
11
Compensation at Receiver

• Adjust decision point on the fly based on
  previous few bits
• Mathematically extrapolate signal back to what it
  presumably was at origin
• These techniques can be used only if calculations
  can be done much faster than bit rate

12
Dispersion Properties of Various Fibers
13
Chromatic Dispersion Properties of Various Fibers
14
Conventional Dispersion Compensating Fiber
Fiber Optic Communications Technology- Mynbaev
Scheiner
15
Dispersion Compensating Fiber
16
Use of Dispersion Compensating Fiber
Understanding Fiber Optics-Hecht
17
Problem with Conventional Dispersion Shifted Fiber
18
Importance of Slope Matching
19
Link Distance Dependence on Slope Matching
20
Higher order Mode DispersionProperties
LaserComm
21
High-Order-Mode Dispersion Compensation Device
22
Compensation with Optical Filters
23
Chirped fiber Bragg grating dispersion

• where ?? is the difference between Bragg
  wavelengths at ends of grating.
• For n1.45 and ??0.2 nm, D4.8x107 ps/(km-nm) as
  compared to 18 for fiber

24
Chirped Fiber Bragg Gratings
Optical Networks A Practical Perspective-Ramaswami
Sivarajan
25
Pulse Spreading due to Self Phase Modulation
26
Four-wave Mixing
27
Taylor Series expansion of ß(?)

• Through the cubic term
• where

28
Importance of Taylor Series terms

• Group velocity Vg, dispersion D, and dispersion
  slope S

29
Four-Wave Mixing Phase-Matching Requirement

• Phase mismatch M needs to be small for FWM to
  occur significantly

30
Spectral Inversion

• Add pump signal whose wavelength is ideally at
  zero-dispersion point
• Four-wave mixing generates phase conjugate signal
  at 2?p-?s
• Phase conjugate undoes both GVD and SPM over
  second half of link
• Filter out pump beam at end

31
Mid-Span Spectral Inversion
Optical Fiber Telecommunications IIIA
32
Dispersion Managed Network
33
Summary of Techniques

• At transmitter prechirping, coding
• At receiver signal analysis, decision point
  adjustment
• Fiber DCF, DSF, dual-mode fiber
• Filters Bragg gratings, Mach-Zehnders
• Spectral inversion
