Research and Development of ICBM Technology

1

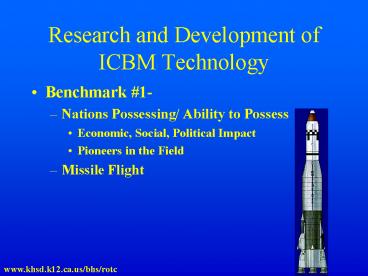

Research and Development of ICBM Technology

• Benchmark 1-
• Nations Possessing/ Ability to Possess
• Economic, Social, Political Impact
• Pioneers in the Field
• Missile Flight

www.khsd.k12.ca.us/bhs/rotc
2
Nations Possessing Ballistic Missile System

• Have-
• Country Type Supplier
• Afghanistan R17 USSR
• Algeria R17 Russia
• Argentina ALACRAN
• Azerbaijan R17 Russia
• Belarus TOCHKA Russia
• R17

www.cdiss.org
3
Nations Possessing Ballistic Missile System
(Cont.)

• Brazil VlS
• Bulgaria R17
• DF31
• DF41
• Jl2
• Czech Rep TOCHKA Russia
• R17 Russia

www.cdiss.org
4
Nations Possessing Ballistic Missile System
(Cont.)

• Egypt R17 NK/USSR
• PROJ-T Dom-NK
• France MSBS-4
• MSBS-45
• MSBS-51
• Georgia R17 USSR

www.cdiss.org
5
Nations Possessing Ballistic Missile System
(Cont.)

• Hungary TOCHKA USSR
• R17 USSR
• India SS150
• SS250
• SS350
• SAGRIKA
• AGNI
• ASLV
• GSLV
• PSLV

www.cdiss.org
6
Nations Possessing Ballistic Missile System
(Cont.)

• Iran IRAN130
• M7 China
• R17 Dom-NK
• ZELZAL2
• SCUD-C NK
• SHIHAB3 Dom-USSR
• ZELZAL3
• SHIHAB4 Dom-USSR

www.cdiss.org
7
Nations Possessing Ballistic Missile System
(Cont.)

• Iraq ABABIL100
• R17
• Israel MGM52 USA
• YA1 France
• YA2
• SHAVIT
• Japan M3/SLV
• H1/SLV
• H2/SLV

www.cdiss.org
8
Nations Possessing Ballistic Missile System
(Cont.)

• Kazakhstan TOCHKA Russia
• R17 Russia
• N Korea SCUD B
• SCUD C
• NODONG 1
• NODONG 2
• TAEPODONG 1
• TAEPODONG 2

www.cdiss.org
9
Nations Possessing Ballistic Missile System
(Cont.)

• S. Korea NHK1
• KSR1
• NHKA
• Libya TOCHKA USSR
• R17 USSR
• SCUD C NK
• ALFATAH

www.cdiss.org
10
Non-Proliferation Members

• 187 members
• 93 countries not formally ratified.


www.fas.org
11
Known/Suspected Nuclear Weapons

• Country
• China Libya
• France N. Korea
• India Iran
• Israel Algeria
• Pakistan S. Korea
• Russia Taiwan
• UK US

www.wagingpeace.org
12
Russia

• Missile Development

JROTC
13
www.fas.org
14
RussiaStrategic Delivery System

• ICBM Year Notes
• Ss-18 1975 silo-based
• Ss-19 1982 silo-based
• Ss-24 1987 silo/rail based
• Ss-25 1985 road mobile/silo

www.fas.org/index.htm
15
RussiaStrategic Delivery System

• SLBM Year Notes
• Ss-n-18 1982 In 13 Delta III SSBM
• Ss-n-20 1981 In 6 Typhoon
• Ss-n-23 1985 In 7 Delta IV
  SSBM

www.russianspace.com
16
RussiaStrategic Delivery System

• Air Year Notes
• Tu-95 1956 Doesnt Include
• Ukrainians
• Tu-160 1988 Doesnt Count 19
• Ukraine

www.russianspace.com
17
Russia

• Economical
• Social
• Political Development

18
United States

• Missile Development

JROTC
19

www.sac.com
20
www.sac.com
21
Development/Benefits

• Political
• Economical
• Social

www.sac.com
22
Argentina

• Missile Development
• CG

www.fas.org
23
www.lib.utexax.edu
24
Condor I

• Range 100km
• Payload 400kg
• If converted for military use the Condor I could
  have served as a short-range tactical missile.

http//www.fas.org/nuke/guide/argentina/missile http//www.cdiss.org http//www.iet.com/Projects/HPKB/Web-mirror/CDISS/argen_b.htm



25
Condor II

• Range 900km
• Payload 450 kg (possibly a nuclear
  warhead)
• Two-Stage, Solid-Fuelled Rocket

http//www.fas.org/nuke/guide/argentina/missile http//www.cdiss.org http//www.iet.com/Projects/HPKB/Web-mirror/CDISS/argen_b.htm

26
Condor II Funded By

• Egypt 1984 until 1989
• Iraq 1985 until 1989
• Program was Terminated in 1991
• In 1993 Argentina handed over all components of
  the secretive Condor II ballistic missile project
  to the US
• Designated Vector in Egypt Badr 2000 in Iraq
• Never fully developed by either country

http//www.cdiss.org http//www.fas.org/nuke/guide/argentina/missile http//www.iet.com/Projects/HPKB/Web-mirror/CDISS/argen_b.htm
27
Alacran

• Range 200 km
• Payload 500 kg
• Single-Stage, Solid-Fuelled Rocket
• First Test Lunched Reported in 1989 Thought to
  Have Entered Service in 1990
• Still in service as far as we know


http//www.iet.com/Projects/HPKB/Web-mirror/CDISS/argen_b.htm http//www.fas.org/nuke/guide/argentina/missile http//www.cdiss.org
28
Nuclear Program Supporters

• Equipment Countries
• Power Reactors Canada and West Germany

• Heavy Water Plant Switzerland
• Other nuclear equipment Soviet Union

http//www.ceip.org/files/Publications/TrackingArgentina.asp?p8
29
Argentina Missile Development

• Economical Impact
• Social Impact
• Political Impact

Exploring Your World, National Geographic
www.fas.org
30
Foreign Debts

• Total Debt 211bn
• Pay back 75.3bn by 2003
• 20 of these debts were negotiated corruptly by
  the military dictatorship of 1976-83

http//news.bbc.co.uk
31
Argentinas Military Finding Ways To Acquire
Money!
http//ukinet.com/first/text/military.htm
32
Is Argentinas military ready to fight in a war?
Do they have the proper training, or equipment?
www.fas.org
33
Brazil Missile Development

• History
• Economic
• Political
• Social

JROTC Heath, World Geography
34
www.lib.utexax.edu
35
The Sonda Family

• 1960, Brazil began work on the Sonda family of
  experimental rockets.
• Sonda I IV developments

www.wisconsinproject.org/countries/brazil/rockets.
html
36
Foreign Assistance and Sales

• Brazil used Russian technology
• Brazilian companies sold uranium to Iraq

http//www.fas.org/nuke/guide/brazil/missile/
www.wisconsinproject.org/countries/brazil/rockets
.html http//www.wisconsinproject.org/countries/b
razil/missile2000.htm
37
Brazils Economy

• Depended on agricultural bases
• 1970s began to produce better variety of goods.
• 1980s was among highest in foreign debt
• 1990s embarked on multiple programs of economic
  reform.

www.ultranet.com Heath World Geography
38
China Missile Development

• History

JROTC
39
Development of Chinas ICBM

• First tested in 1964
• 1966 first hydrogen bomb test
• 1968 first series mass production
• Estimated 6 different types of nuclear warheads
  being used
• Experimented with a neutron bomb in 1988
• Weapons not mated to launcher

40
CHINA'S CURRENT NUCLEAR ARSENAL - STOCKPILE,
DELIVERY SYSTEMS, AND DEPLOYMENTS

• Systems Name Year Deployed Range/Payload
• DF-3/3A 1971 2800 km 2150 kg
• DF-4 1980 4750 km 2200 kg
• DF-5/5A 1981 13000km 3200 kg
• DF-21/21A 1988 1800 km 600kg
• DF-15/M-9 600 km 950 kg
• DF-11/M-11 280 km 800 kg
• JL-1 SLBM 1986 1700 km 600 kg
• Hong-6 Bomber 1965 3100 km 4500 kg
• Qian-5A attack aircraft 1970 400 km 1500 kg
• Tactical warheads Mid-1970s

41
China Missile Development

• Economic
• Social
• Political

42
http//cns.miis.edu/research/china/map.htm
43
Robert Goddard
44
Robert Goddard A Modern Rocket Scientist

• 1882 - Born in Mass.
• 1908 - Began studies of physics at Clark
  University
• 1915 -Proves that rocket engines can produce a
  thrust in a vacuum
• 1920s-30s - Takes a leave of absence from his
  teaching at Clark in order to perform research

• 1926 - first liquid fueled rocket launched - 41
  feet
• 1930 - Roswell, NM supersonic and multi-stage
  rockets fin-guided steering.
• 1945 -Dies at age 62, holding 214 patents

http//pao.gsfc.nasa.gov/gsfc/service/gallarey
45
Goddards Problem with Publicity

• Goddard shares his ideas about the possibility of
  a moon landing
• Published an article
• Argued that a big enough rocket would make it to
  the moon

• The Times trashed his idea
• Goddard upset that he had been defamed to the
  public
• Sank into a quarter century sulk.
• Later became known as the father of Modern
  Rocketry

http//www-istp.gsfc.nasa.gov/stargaze/sgoddard.ht
m
46
Goddards Historic Firsts

• First explored mathematically the practicality of
  using rocket propulsion to reach high and
  altitudes and even the moon
• First shot a scientific payload (barometer and
  camera)in a rocket flight

• Proved thrust can be created in a vacuum (space)
• First used vanes in the rocket motor blast for
  guidance

http//antwrp.gsfc.nasa.gov/apod/ap950916.htm
47
Goddards Historic Firsts (cont)

• First developed gyro control apparatus for rocket
  flight in New Mexico
• Successfully launched a rocket with a motor
  pivoted on gimbals under the influence of a gyro
  mechanism
• First developed pumps suitable for rocket fuels

http//libref.clark.edu/archives/goddardbio.htm
48
Missile Flight

• To prove that a missile could be modified from
  civilian to military use.

JROTC
