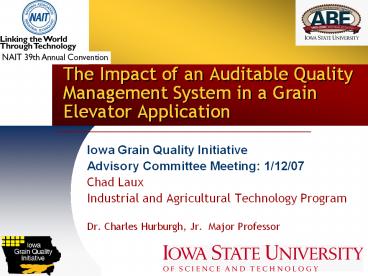

1The Impact of an Auditable Quality Management
System in a Grain Elevator Application
- Iowa Grain Quality Initiative
- Advisory Committee Meeting 1/12/07
- Chad Laux
- Industrial and Agricultural Technology Program
- Dr. Charles Hurburgh, Jr. Major Professor
2Outline
- Farmers Cooperative
- Results of QMS in Quality Control
- FDA Bioterror Act
- FC Mock Recall Results
3Farmers Cooperative Company
- Northwest Iowa Company
- Over 400 million in sales
- 50 locations and growing
- 350 employees
- Departments Grain, Agronomy, Feed, Seed, Admin.,
Accounting
Source FC, 2006
4Problem Statement
- With the adoption of QMS, how has it impacted
Farmers Cooperative operations? - What measurements would provide evidence so FC
may proceed with other location implementations? - Inquiry focused on company processes which
directly affect grain preservation and handling
5Core processes and ISO 9000
Source ISO, 2000
6Core Farmers Cooperative Co. Processes ISO
Defined
- Processes which transform the end product in ISO
structure
7Statistical Process Control - Grain Grading
- Farmers Coop has been grading the same grain
samples that were also graded by an official
inspector - Matching the precision of the official inspectors
8Research Model Hypothesis
- Grain quality for shipment is improved when QMS
procedures are adopted - FC/FGIS/customer comparisons of same sample
- Corn Moisture - Content Instrument Factor
- Corn Damage - Visual Judgment Factor
- Smaller Difference is Better!
- Comparison of
- QMS locations vs. non-QMS locations
- Locations before and after QMS implementation
9Moisture Content Absolute Mean Difference
w/ SEMs shown
n15087
n279
n218
10Moisture Content Absolute Mean Difference
Location 1
- Before and After AIB/QSE Adoption
w/ SEMs shown
n218
n2924
11Moisture Content Absolute Mean Difference
Location 2
- Before and After QMS Adoption
w/ SEMs shown
N279
N2864
12Total Points Damage Absolute Mean Difference
w/ SEMs shown
n79
n110
n5303
13Total Points Damage Absolute Mean Difference
Location 1
- Before and After AIB/QSE Adoption
w/ SEMs shown
n79
n1197
14Total Points Damage Absolute Mean Difference
Location 2
- Before and After QMS Adoption
w/ SEMs shown
n110
n1637
15Conclusions
- QMS positively impacted FC operations through
improved product quality of shipped grain. - Better resource management gt Better quality
control - There was no difference in quality where the
basis of determination was instrumentation.
(moisture content) - Process control through calibration
- BPM is a suitable model of inquiry for research
of ISO results in organizations
16How to Meet the FDA Bioterrorism Act An Elevator
Case Study of Tracking Commodity Grain Using ISO
9000
17Bioterrorism Act of 2002
- FDA Mandate of one up-one down traceability by
6/06 (sliding scale based on size) - Protection of food supply
- Legislation
- Registration Section 305
- Recordkeeping maintenance Title III, Section
306 - FDA expects documentation to be mode of
traceability - Produce information upon official investigation
- Unfunded mandate
- Note Traceability a requirement of ISO
certification
18Product Traceability
- Research Questions Does a QMS facilitate
traceability in commodity grain elevator
operations? - Does the traceability system meet FDA guidelines
for traceability under the Bioterrorism Act?
19Methodology
- Traceability/safety training conducted at 21
QMS/non-QMS locations - Mock recalls conducted at locations to measure of
training effectiveness (ISO requirement) - Devin Mogler (QMS Intern) conducted recalls per
FC ISO Procedure for Recalling Commodity Grain
20Recall Summary Results
21Distribution of Recall Duration
22Discussion and Conclusions
- Audited FC results per FDA rules
- QMS traceability is adequate to meet FDA mandate
- Wide variation in duration of recalls
- Wide variation in precision i.e. lot size
23Recommendations
- Trace from back to front in next round of recalls
- Follow through on multi-site recalls
- Improve internal communication reduce lag time
- Use older scale tickets in recalls will test
system more thoroughly - Collect all sources in bin, railcar assignments
indicator of precision (index) - Use controlled documents for recalls
traceable documents required - Launch CARs on failed recalls close the loop
- Decide on lot sizes operations issue
24Final Steps
- Impact of ISO on Quality and Quantity (Inventory
mgmt.) on grain - Key process with management measures on
performance imbedded in QMS system - 8.2.4 Monitoring and measurement of product
- 8.3 Control of non-conforming product
- 8.5.2 Corrective and preventive action
- Final Defense and graduate by Aug. 2007
