Shaping Regularization

1

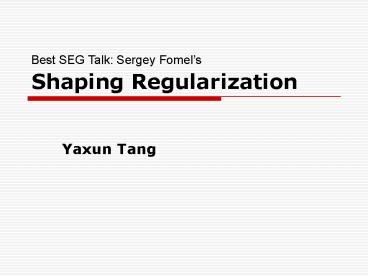

Shaping Regularization
Best SEG Talk Sergey Fomels

• Yaxun Tang

2
Paper Name

• Shaping regularization in geophysical estimation
  problems
• Author Sergey Fomel
• SI 2.4 Wave-Equation and Topology

3
Introduction
well-posed
Model
Indirect constraints
Geophysical Estimation
Insufficient Data
ill-posed
4
Introduction

• Traveltime tomography
• Migration velocity analysis
• High-resolution Radon transform
• Spectral decomposition

5
Regularization theory

• Goal of inversion
• Fit the observed data
• Fit the estimated model to a priorly assumed
  behavior (Tikhonov)
• i.e. to minimize vector

L forward operator m model d data D
regularization operator scaling parameter
6
Regularization theory

• The formal solution
• We can also minimize the least-square norm of the
  vector

P model preconditioning operator
mPp
7
Regularization Theory

• The formal solution
• Those two solutions are equivalent, if

8
Smoothing

• Find a model m that fits the observed data d but
  is in a certain sense smoother
• In this case LI

9
Regularized smoothing
10
Triangle smoothing
11
Shaping regularization

• Take smoothing as a fundamental operation!
• Smoothing implies projection of the input model
  to the space of admissible functions
• Shaping just translates the input into an
  acceptable model

projection operator shaping
12
Shaping regularization

• Define
• Then, we get

13
Shaping regularization

• Introducing a scaling of L
• When

Suitable for an iterative inversion of the
conjugate-gradient method
14
1-D data regularization
15
1-D data regularization
Regularization
Model Preconditioning
16
1-D data regularization
S is lowpass filtering with a Gaussian
smoother
S is bandpass filtering with a shifted Gaussian
17
1-D data regularization
18
Velocity estimation
19
(No Transcript)
20
Conclusion

• The main idea of shaping regularization is to
  take shaping as a fundamental operation
• Shaping regularization is fast convergent
• Compared to the regularization operator, shaping
  operator is often easier to design,
