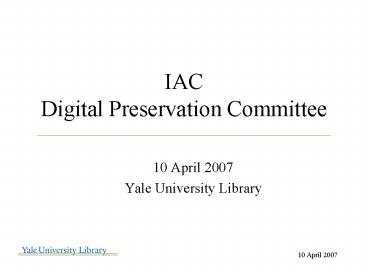

IAC Digital Preservation Committee ________________________________________________

1
IACDigital Preservation Committee_______________
_________________________________

• 10 April 2007
• Yale University Library

10 April 2007
2
IAC Digital Preservation Committee_______________
_________________________________

• Outline
• Charge members.
• Accomplishments
• Policy
• Best practices
• Whats next

10 April 2007
3
IAC Digital Preservation Committee_______________
_________________________________

• The DPC is an Integrated Access Council committee
  charged to
• Develop a digital preservation program by
  evaluating, compiling, documenting and
  articulating policies, procedures, best practices
  and systems in order to establish a digital
  preservation infrastructure at Yale University
  Library.
• Work from a base of clearly articulated policies,
  then focus on preservation program planning and,
  finally, make recommendations for program
  implementation through digital preservation
  projects, initiatives, and system development.

10 April 2007
4
IAC Digital Preservation Committee_______________
_________________________________

• Members
• Rebekah Irwin, BRBL
• David Gewirtz, ILTS/AMT
• Kevin Glick, MSS/A
• Audrey Novak, ILTS (Co-Chair)
• Bobbie Pilette, Preservation (Co-Chair)
• E.C. Schroeder, BRBL
• Former members
• Ann Green, ILTS/ITS, Co-Chair
• Nicole Bouche, Beinecke Library
• Gretchen Gano, Social Science Library

10 April 2007
5
IAC Digital Preservation Committee_______________
_________________________________

• Accomplishments
• Published a Digital Preservation policy that
  establishes a mission statement and promulgates
  preservation policies for institutional standards
  governing the quality, type and source of digital
  assets to be archived in the repository (revised
  Feb 2007).
• Published best practices addressing Local
  practice for implementing PREMIS Preservation
  Strategies Persistent Identifiers Fixity
  (checksums, message digest and digital
  signatures) Format Registries Encoding
  Transmission of Structured Metadata and Care and
  Handling of Originals.
• Modeled an organizational structure for the
  ongoing coordination and management of digital
  preservation. This structure recognizes that the
  responsibility for the creation and
  administration of digital preservation services
  at Yale is shared by three services Metadata,
  Repository and Preservation.

10 April 2007
6
Digital Preservation Best Practices
________________________________________________

• Digital preservation does not have established
  and vetted standards.
• Issues and problems associated with preserving
  digital resources are
• numerous, complex and dynamic. DPC best practices
  are an effort to
• parse the larger digital preservation problem
  space into discrete issues and
• to identify processes, activities and/or
  methodologies that are emerging as
• standards. This work by the DPC is by no means
  finished. More work is
• required to establish additional best practices
  for the myriad of related
• topics and to keep these recommendations current
  with the latest
• thinking and research in this field. Note, too,
  that although informed by
• research, most of these best practices are
  untested in production
• preservation archives.

10 April 2007
7
Best Practice Care Handling of Physical
Collections ______________________________________
__________

• White paper to advise Library staff on how to
  protect originals during digital conversion.
  Available on the web site for easy access
• Sections include
• Assessment of Physical Collections
• Criteria for Selecting Proper Scanning Equipment
• Preparing the Scanning Surface
• Specifications for Scanning
• Handling Procedures for Library Materials

10 April 2007
8
Care Handling of Physical Collections,
continued ________________________________________
________

• Assessment of Physical Collections
• Important to include Preservation Department
  contact Tara Kennedy, Field Service Librarian
• List of questions to ask before scanning an
  object
• Criteria for Selecting Proper Scanning Equipment
• Describes available equipment and appropriate use
• Indicates which materials can be scanned safely
  on each type of equipment
• Preparing the Scanning Surface
• How to clean the scanning surface (flatbed)

10 April 2007
9
Care Handling of Physical Collections,
continued ________________________________________
__

• Specifications for Scanning
• Illumination levels and types,
• Proper supports for bound materials,
• Environmental considerations (dust, temperature,
  relative humidity)
• Handling Procedures for Library Materials
• Mostly common sense reminders, but also
  specific suggestions, e.g. oversized materials
• Includes paper-based, multimedia (sound, film,
  historical, optical), objects

10 April 2007
10
Best Practice - Fixity ___________________________
_____________________

• Fixity, in preservation terms, means that the
  digital object has not been changed between two
  points in time or events.
• Fixity checks such as checksums, message digests
  and digital signatures are used to verify a
  digital objects fixity.
• Information created by these fixity checks,
  provides evidence for the integrity and
  authenticity of the digital objects and are
  essential to enabling trust.

10 April 2007
11
Fixity, continued ________________________________
________________

• Fixity checks are all used in the same basic way.
  A value is initially generated and saved. Then,
  in response to an event (e.g., ingest) or over
  time, it is recomputed and compared to the
  original to ensure the object (file or bitstream)
  has not changed.
• All fixity checks are not the same.
• Checksums are the simplest and least reliable
  method. They are typically used in
  error-detection to find accidental problems in
  transmission and storage. They do not account for
  such changes as the re-ordering of bytes or
  changes that cancel one another out.

10 April 2007
12
Fixity, continued ________________________________
________________

• Message digests are more secure. They are
  computed by applying a more complex algorithm to
  the file of any length to produce a unique,
  short, uniform length character string. Change
  one pixel or one note in the file and the message
  digests will be completely different. (Ex
  93326bff6636655dcd6abff18ed2de997).
• Digital signatures combine message digests with
  encryption. The message digest is created and
  then encrypted using a private/public key pair.

10 April 2007
13
Fixity, continued ________________________________
________________

• Current best practice for digital preservation
• repositories
• The creation of message digests using two
  algorithms, MD5 and SHA-1.
• These are implemented in the widely used JHOVE
  format identification, validation and
  characterization application (e.g, in the Rescue
  Repository before and after ingest).

10 April 2007
14
Best Practice Format Registries and Tools
________________________________________________

• What is a Format?
• A technical specification describing a standard
  encoding or representation of digital content
  stored in a file.
• A file format extension such as .jpg indicates
  the encoded content is a digital image.
• File encoding standards are used by programs to
  read the encoded information and present useable
  content of the file to a users monitor or
  another output device.

10 April 2007
15
Format Registries ________________________________
________________

• What is a Format Registry?
• A database that stores information about the
  technical specifications of an electronic files
  format.
• Format registries record file format changes over
  time so that files remain readable in the face of
  technological obsolescence to a format standard.
• How does a format registry work?
• Global Digital Format Registry

10 April 2007
16
File Format Tools ________________________________
________________

• File format identification validation tools
• answer two questions
• How can we tell a file's type?
• If we know its type, how can we be sure that it
  conforms to its format specification so that we
  know it is still useable?

10 April 2007
17
File Format Tools ________________________________
__________

• JHOVE  A  widely used tool file type
  identification, validation and characterization
  tool developed by Harvard Univ. Library JSTOR.
• Handles many format types, (e.g., AIFF, ASCII,
  BYTESTREAM, GIF, HTML, JPEG, JPEG2000, PDF, TIFF,
  UTF8, WAV, XML.)
• Is configurable in many respects, including the
  option to select full validation or short
  mode, in which only the headers signature is
  analyzed the ability to include or exclude
  message digests in the output and to choose from
  various output formats, including plain text and
  XML.
• Because JHOVE does both file type identification
  as well as validation, it is currently Yale
  University Librarys format-related tool of
  choice.
•

10 April 2007
18
File Format Tools ________________________________
_______________

• Other tools
• DROID (Digital Record Object Identification) A
  file type identification tool developed by the
  Digital Preservation Department of the National
  Archives of the United Kingdom, to perform
  automated batch file format identification, using
  the PRONOM registry .
• National Library of New Zealand Preservation
  Metadata Extract Tool A tool that extracts
  metadata from file headers. This Java tool uses
  adapters to extract metadata from filetypes
  including MS Word, Word Perfect, Open Office, MS
  Works, MS Excel, MS PowerPoint, TIFF, JPEG, WAV,
  MP3, HTML, PDF,GIF, and BMP.  This data is output
  in a standard XML format.

10 April 2007
19
Best Practice Persistent Identifiers
__________________________________________

• A persistent identifier (PI) is a unique name
  (identifier) associated with an internet resource
  that provides a link to the content and persists
  over changes of server location, ownership, and
  other state conditions.
• A location (e.g., a given URL) is not a
  persistent identifier if the content moves to
  another location.The principal problem addressed
  by PIs is Broken links to internet resources,
  i.e., the HTTP 404 Error Document not found.
• Persistent identification is not possible without
  an associated service. It is the service that
  supports persistence. The identifier takes you to
  the service, the service resolves to the object.

• Optimally a PI should be created and assigned
  when the digital object is created.

10 April 2007
20
Best Practice Persistent Identifiers
__________________________________________

• Several technologies are available to create
  persistent identifiers such as
• CNRI Handle System A generic system for
  assigning names to objects and resolving them.
  Key is the Global Handle Registry which manages
  the namespace of all handle prefixes.
• DOI (Digital Object Identifier) - An application
  of the CNRI Handle System that associates
  intellectual property to structured metadata. A
  typical use of a DOI is to give a scientific
  paper or article a unique identifying number that
  can be resolved through the DOI resolver or the
  CNRI global handle resolver.
• PURL A Persistent Uniform Resource Locator is a
  URL that describes an intermediate (and more
  persistent) location which when retrieved results
  in a standard HTTP redirect to the current
  location of the resource.

21
Persistent Identifiers - Handle Server
________________________________________________

• The implementation of a CNRI handle server at YUL
  is tightly coupled to the implementation of the
  VITAL/Fedora Digital Repository Service.
• Digital objects within the Digital Repository
  Service will have handles such as
• http//moonpie8085/fedora/get/hdl10079.2F
  -2103288706 (opaque), or
• http//hdl.rutgers.edu/1782.1/SPCOLSMAPS.Ma
  p.b1849 (semantic)
• A handle server, like a web server, requires
  ongoing system administration, e.g., when
  resources are moved.
• Continuing research in the assignment of handles
  to resources in other YUL repositories such as
  the Rescue Repository, Image Commons
  (DL/Insight), etc.
• /

10 April 2007
22
Best Practice - Maintenance Strategies
________________________________________________

• A1. Clear Allocation of Responsibilities
• A2. Provision of the appropriate technical
  infrastructure
• A3. Establishment implementation of a plan for
  system maintenance, support and replacement
• A4. Establishment implementation of plan for
  regular transfer of records to new storage media
• A5. Adherence to appropriate storage and handling
  conditions for storage media
• A6. Ensuring redundancy and regular backup
• A7. Establishment of system security
• A8. Disaster planning

10 April 2007
23
Best Practice - Preservation Strategies
________________________________________________

• B1. Use of standards
• B2. Data extraction and structuring
• B3. Encapsulation
• B4. Restricting the range of formats to be
  managed
• B5. Technology preservation
• B6. Reliance on backward compatibility

• B7. Migration
• B8. Software re-engineering
• B9. Viewers and migration at the point of
  access
• B10. Emulation
• B11. Non-digital approaches
• B12. Data restoration

10 April 2007
24
Best Practice - PREMIS ___________________________
_______________

• PREservation Metadata Implementation Strategies
• Yale Working Group
• Matthew Beacom, Metadata Librarian, Catalog and
  Metadata Services (Co-chair)
• Rebekah Irwin, Catalog Librarian for Digital
  Projects, Beinecke Library (Co-chair)
• Youn Noh, Digital Resources Catalog Librarian,
  Catalog and Metadata Services
• George Ouellette, Senior Programmer Analyst,
  Library ILTS
• David Walls, Preservation Librarian, Library
  Preservation Dept
• Yale Advisory Group
• Reed Beaman, Associate Director for Biodiversity
  Informatics, Peabody Museum
• Lee Faulkner, Media Director, Digital Media
  Center for the Arts
• David Gewirtz, Project Manager, Library Projects,
  ITS
• Kevin Glick, Electronic Records Archivist,
  Manuscripts and Archives
• Edward Kairiss, Director, Instructional Computing
  Instructional Technology, ITS
• Daniel Lee, E-Publishing/Internet Marketing
  Manager, Yale University Press
• Thomas Raich, Associate Director, Information
  Technology, Art Gallery

10 April 2007
25
Best Practice - PREMIS ___________________________
____________________

• Outcome
• Develop PREMIS profiles that match specific
  digital collection and administrative needs
• Base profile (up to 6 elements) This base
  profile of elements would support digital
  preservation of a wide range of digital assets
• Full profile (over 200) This full profile would
  provide guidance to administrators of digital
  information assets acting as trusted custodians
  of material deemed to be of long-term value

10 April 2007
26
Best Practices - Summary _________________________
_______________________

• Most of these best practices are the outcome of
  current research projects.
• Few are tested in production preservation
  repositories.
• At Yale the Rescue Repository is becoming a local
  testbed.
• Fixity MD5 and SHA-1 message digests
• JHOVE file format identification and validation
• Maintenance strategies
• PREMIS base profile element set.
• VITAL/Fedora Digital Repository Service
  implementation
• Persistent identifiers through the CNRI Handle
  System.

10 April 2007
27
Whats Next______________________________________
__________

• Goals
• Creation of a Transition Team to continue the
  work of the DPC, and most importantly, within a 6
  month timeframe, create the roadmap for the
  implementation of the permanent management model
  for an ongoing digital preservation program.
• The recommended structure consists of a core team
  representing 2FTE comprised of staff with
  expertise in metadata, repository and
  preservation services. It is modeled as a
  virtual Digital Curation Center (DCC). The DCC
  will put into practice the identified best
  practices and the Digital Repostiory Service
  (DRS) Preservation Archive.
• The Transition Team will prepare a business plan
  for the Digital Curation Center. The business
  plan will identify the DCCs Vision, mission,
  goals and first year deliverables Staffing
  models Budget and Timeline for creation.

10 April 2007
28
IAC Digital Preservation Committee
________________________________________________

• Website
• http//www.library.yale.edu/iac/dpc.html

10 April 2007
