Discussion

1

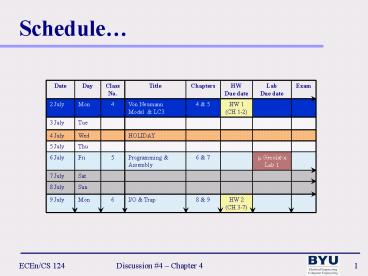

Schedule
2
Chapter 4 The Von Neumann Model
3
Instructions

• Helaman 126-13
• 6 Behold, they do not desire that the Lord
  their God, who hath created them, should rule and
  reign over them notwithstanding his great
  goodness and his mercy towards them, they do set
  at naught his counsels, and they will not that he
  should be their guide.
•   7 O how great is the nothingness of the
  children of men yea, even they are less than the
  dust of the earth.
•   8 For behold, the dust of the earth moveth
  hither and thither, to the dividing asunder, at
  the command of our great and everlasting God.
•   9 Yea, behold at his voice do the hills and the
  mountains tremble and quake.
•   10 And by the power of his voice they are
  broken up, and become smooth, yea, even like unto
  a valley.
•   11 Yea, by the power of his voice doth the
  whole earth shake
•   12 Yea, by the power of his voice, do the
  foundations rock, even to the very center.
•   13 Yea, and if he say unto the earthMoveit is
  moved.

4
Digital Logic Hierarchy
Now Begins Software
5
The Von Neumann Computer
Von Neumannproposed this model in 1946
Datapath
Control
The Von Neumann modelProgram instructions and
Data are both stored as sequencesof bits in
computer memory
6
Memory Interface

• Memory Address Register(MAR) stores the
  memoryaddress that is to be read orwritten
• Memory Data Register (MDR) stores
• The data that is read from memory
• The data this is to be written to memory
• Memory Write Enable (WE) is a control signal that
  is asserted to write memory

7
Memory Terminology

• Address Space amount of data that can be stored
  (also called the memory size)
• Addressability number of bits stored in each
  memory location
• 1 byte 8 bits
• 1 Kilobyte (Kbyte) 210 bytes 1024 bytes
• 1 Megabyte (Mbyte) 220 bytes
• 1 Gigabyte (Gbyte) 230 bytes

8
The Processing Unit

• ALU Arithmetic and Logic Unit
• ADD, SUB, MULT, etc.
• AND, OR, NOT, etc.
• word length the number of bits processed by the
  ALU.
• Includes a small amount of memory very close to
  the ALU (like a register file)

INPUT
OUTPUT
Processing Unit
ALU
TEMP
Control Unit
PC
IR
9
Input and Output

• Used to get information in and out of the
  computer.
• External devices attached to a computer are
  called peripherals.

INPUT keyboard mouse scanner card
reader disk
OUTPUT monitor printer LED disk
Processing Unit
ALU
TEMP
Control Unit
PC
IR
10
Control

• The control unit directs the execution of the
  program
• It keeps track of
• Where we are in the process of executing the
  program
• The program counter or PC points to the next
  instruction to be executed
• Where we are in the process of executing the
  current
• The instruction register or IR contains the
  currently executing instruction

INPUT
Processing Unit
ALU
TEMP
Control Unit
PC
IR
11
The LC-3 An Example Von Neumann Machine
PC
IR
12
Anatomy of an Instruction
ADD R6,R2,R6
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
0
0
1
1
1
0
0
1
0
0
0
0
1
1
0
13
The Instruction Cycle

• FETCH
• Obtain the next instruction from memory
• DECODE
• Examine the instruction, and determine how to
  execute it
• EVALUATE ADDRESS
• Compute the address of the memory location (put
  in MAR)
• FETCH OPERANDS
• Obtain the source operands
• EXECUTE
• Carry out the execution of the instruction
• STORE RESULT
• Store the result in the designated destination

Not all instructions require all six phases
14
The Fetch Phase

• Computer programs consist of instructions
• Each instruction 1 Binary Word 16 bits
• Instructions are stored in memory
• Program sequence of instructions
• stored in memory as 1s and 0s
• called machine code (Chapter 1)

15
Fetching an Instruction
ADD R6,R2,R6

• Copy PC contents to MAR, and PC is incremented

PC

• Wait for memory access
• Result will be placed into MDR by memory unit

• Copy MDR contents to IR

IR
?
16
Decode
ADD R6,R2,R6

• Pick apart the instruction stored in the IR
• control unit in control logic does all this
• Determine
• operation
• operand sources
• operand destination

17
Fetch Operands
ADD R6,R2,R6
PC
IR
18
Execute
ADD R6,R2,R6

• The ALU doesits operation
• control unittells it whichoperation to do

PC
IR
19
Store Result
ADD R6,R2,R6
PC
IR
20
An LDR Instruction
LDR,R2,R3,6
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
1
1
0
0
1
0
0
1
1
0
0
0
1
1
0
EffectiveAddress (contents of R3) 6 R2
MEMEffectiveAddress
This requires the computation of an effective
memory address. It is base offset. The
contents of R3 are the base address and 6 is the
offset.
21
Fetch Operands
LDR,R2,R3,6
PC
IR
22
Evaluate AddressRead Memory
LDR,R2,R3,6
PC
IR
23
Store Result
LDR,R2,R3,6
PC
IR
24
A JMP Instruction
JMP R3
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
1
1
0
0
0
0
0
0
1
1
0
0
0
0
0
0
EffectiveAddress (contents of R3) PC
EffectiveAddress
This is how a GOTO statement would be executed.
25
Fetch Operands
JMP R3
PC
IR
26
Execute
JMP R3

• The ALU doesits operation
• control unittells it whichoperation to do

PC
IR
27
Store Result
JMP R3
PC
IR
28
Von Neumann In Review

• Programs are stored in memory as instructions
• our LC-3 machine has 16-bit instructions
• Data is also stored in memory
• A program is executed by
• fetching next instruction from memory
• decoding it
• evaluating its address
• fetching its operands
• doing the requested operation and
• storing the result

29
The Von Neumann Bottleneck

• You may hear of the term Von Neumann Bottleneck
• All instructions have to be fetched from memory
• the path to memory is a bottleneck
• In spite of this, the Von Neumann model is the
  computing model that is used

30
Chapter 5The LC-3
31
Instruction Set Architecture (ISA)

• The computer ISA defines all of the
  programmer-visible components and operations of
  the computer
• memory organization
• address space -- how may locations can be
  addressed?
• addressibility -- how many bits per location?
• register set
• how many? what size? how are they used?
• instruction set
• opcodes
• data types
• addressing modes
• ISA provides all information needed for someone
  that wants to write a program in machine language
  (or translate from a high-level language to
  machine language).

32
LC-3 Overview Instruction Set

• The LC-3 is a 16-bit Machine
• ALU is 16-bits wide
• all instructions fit into a 16-bit word
• 15 Defined Opcodes
• Operate instructions ADD, AND, NOT
• Data movement instructions LD, LDI, LDR, LEA,
  ST, STR, STI
• Control instructions BR, JSR/JSRR, JMP, RTI,
  TRAP
• Condition codes are set/cleared based on a
  register result
• Data Types
• 16-bit 2s complement integer
• Addressing Modes
• non-memory addresses immediate, register
• memory addresses PC-relative, indirect,
  baseoffset

33
LC-3 Overview Memory and Registers

• Memory
• address space 216 locations (65,536)
• addressability 16 bits (2 bytes)
• total memory size is 131,072 bytes
• Registers
• temporary storage, accessed in a single machine
  cycle
• eight general-purpose registers R0 - R7
• each 16 bits wide
• how many bits to uniquely identify a register?
• other registers
• not directly addressable, but used by (and
  affected by) instructions
• PC (program counter), IR (instruction register),
  condition codes

34
LC-3 Overview Data Types

• LC-3 has only one data type
• a 16-bit 2s complement Integer
• Other computers have others
• 32-bit floating point (float)
• 64-bit floating point (double)
• long twice the number of bits as Integer
• short half the number of bits as Integer
• Byte 8-bit Integer, or Character (char)

35
All Instructions
36
Operate Instructions

• Only three operations ADD, AND, NOT
• Source and destination operands are registers
• These instructions do not reference memory.
• ADD and AND can use immediate mode,where one
  operand is hard-wired into the instruction.
• Will show dataflow diagram with each instruction.
• illustrates when and where data moves to
  accomplish the desired operation

37
NOT (Register)
Operate Instructions
Note Src and Dstcould be the same register.
38
NOT DR NOT SR1
Operate Instructions
PC
Not B
IR
39
ADD/AND (Register)
Operate Instructions
this zero means register mode
40
ADD DR SR1 SR2
Operate Instructions
PC
IR(5)0
Add
IR
41
AND DR SR1 AND SR2
Operate Instructions
PC
IR(5)0
And
IR
42
ADD/AND (Immediate)
Operate Instructions
this one means immediate mode
Note Immediate field issign-extended.
43
ADD DR SR1 immed5
Operate Instructions
PC
IR(5)1
Add
IR
44
AND DR SR1 AND immed5
Operate Instructions
PC
IR(5)1
And
IR
45
Using Operate Instructions
Operate Instructions

• With only ADD, AND, NOT
• How do we subtract?
• How do we OR?
• How do we copy from one register to another?
• How do we initialize a register to zero?

46
Data Movement Instructions
Data Movement Instructions

• Load -- read data from memory to register
• LD PC-relative mode
• LDR baseoffset mode
• LDI indirect mode
• Store -- write data from register to memory
• ST PC-relative mode
• STR baseoffset mode
• STI indirect mode
• Load effective address -- compute address, save
  in register
• LEA immediate mode
• does not access memory

47
PC-Relative Addressing Mode
Data Movement Instructions

• Want to specify address directly in the
  instruction
• But an address is 16 bits, and so is an
  instruction!
• After subtracting 4 bits for opcodeand 3 bits
  for register, we have 9 bits available for
  address.
• Solution
• Use the 9 bits as a signed offset from the
  current PC.
• 9 bits
• Can form any address X, such that
• Remember that PC is incremented as part of the
  FETCH phase
• This is done before the EVALUATE ADDRESS stage.

48
LD (PC-Relative)
Data Movement Instructions
49
LD DR MemPC Offset9
Data Movement Instructions
PC
IR
50
ST (PC-Relative)
Data Movement Instructions
51
ST MemPC Offset9 SR
Data Movement Instructions
PC
SR
IR
52
Indirect Addressing Mode
Data Movement Instructions

• With PC-relative mode, can only address data
  within 256 words of the instruction.
• What about the rest of memory?
• Solution 1
• Read address from memory location,then
  load/store to that address.
• First address is generated from PC and IR(just
  like PC-relative addressing), thencontent of
  that address is used as target for load/store.

53
LDI (Indirect)
Data Movement Instructions
54
LDI DR MemMemPC Offset9
Data Movement Instructions
PC
IR
55
STI (Indirect)
Data Movement Instructions
56
STI MemMemPC Offset9 SR
Data Movement Instructions
PC
SR
IR
57
Base Offset Addressing Mode
Data Movement Instructions

• With PC-relative mode, can only address data
  within 256 words of the instruction.
• What about the rest of memory?
• Solution 2
• Use a register to generate a full 16-bit address.
• 4 bits for opcode, 3 for src/dest register,3
  bits for base register -- remaining 6 bits are
  usedas a signed offset.
• Offset is sign-extended before adding to base
  register.

58
LDR (BaseOffset)
Data Movement Instructions
59
LDR DR MemBaseR Offset6
Data Movement Instructions
PC
BaseR
IR
60
STR (BaseOffset)
Data Movement Instructions
61
STR MemBaseR Offset6 SR
Data Movement Instructions
PC
SR
BaseR
IR
62
Load Effective Address (LEA)
Data Movement Instructions

• Computes address like PC-relative (PC plus signed
  offset) and stores the result into a register.
• Note The address is stored in the register, not
  the contents of the memory location.

63
LEA (Immediate)
Data Movement Instructions
64
LEA DR PC Offset9
Data Movement Instructions
PC
IR
65
Example
Data Movement Instructions
66
Control Instructions
Control Instructions

• Used to alter the sequence of instructions (by
  changing the PC)
• Conditional Branch
• branch is taken if a specified condition is true
• signed offset is added to PC to yield new PC
• else, the branch is not taken
• PC is not changed, points to the next sequential
  instruction
• Unconditional Branch (or Jump)
• always changes the PC
• TRAP
• changes PC to the address of an OS service
  routine
• routine will return control to the next
  instruction (after TRAP)

67
Condition Codes
Control Instructions

• LC-3 has three condition code registers N --
  negative Z -- zero P -- positive (greater than
  zero)
• Set by any instruction that writes a value to a
  register(ADD, AND, NOT, LD, LDR, LDI, LEA)
• Exactly one will be set at all times
• Based on the last instruction that altered a
  register

68
All Instructions
ADD
LD
DR
SR1
SR2
DR
0001
00
0
0010
PCoffset9
ADD
LDI
DR
imm5
1010
PCoffset9
0001
DR
SR1
1
AND
DR
SR1
SR2
LDR
DR
0101
00
BaseR
0
0110
offset6
AND
LEA
DR
imm5
0101
DR
SR1
1
1110
PCoffset9
NOT
DR
SR
SR
1001
111111
ST
0011
PCoffset9
BR
STI
z
p
0000
n
PCoffset9
PCoffset9
SR
1011
JMP
STR
SR
BaseR
1100
0
000000
00
0111
offset6
BaseR
JSR
TRAP
PCoffset11
0100
1
1111
trapvect8
0000
RTI
JSRR
BaseR
1000
000000000000
0100
0
000000
00
RET
reserved
111
1101

1100
0
000000
00
69
Branch Instruction
Control Instructions

• Branch specifies one or more condition codes.
• If the set bit is specified, the branch is taken.
• PC-relative addressingtarget address is made by
  adding signed offset (IR80)to current PC.
• Note PC has already been incremented by FETCH
  stage.
• Note Target must be within 256 words of BR
  instruction.
• If the branch is not taken,the next sequential
  instruction is executed.

70
BR (PC-Relative)
Control Instructions
What happens if bits 119 are all zero? All
one?
71
Branch if (COND) PC PC PCoffset9
Control Instructions
LD ifCOND
PC
COND
IR
72
Using Branch Instructions
Control Instructions

• Compute sum of 12 integers.Numbers start at
  location x3100. Program starts at location x3000.

R1 ? x3100R3 ? 0R2 ? 12
R20?
R4 ? MR1R3 ? R3R4R1 ? R11 R2 ? R2-1
NO
YES
73
Sample Program
Control Instructions
74
JMP (Register)
Control Instructions

• Jump is an unconditional branch -- always taken.
• Target address is the contents of a register.
• Allows any target address.

75
Jump PC BaseR
Control Instructions
PC
BaseR
IR
76
TRAP
Control Instructions

• Calls a service routine, identified by 8-bit
  trap vector.
• When routine is done, PC is set to the
  instruction following TRAP.

77
Another Example
An Example

• Count the occurrences of a character in a file
• Program begins at location x3000
• Read character from keyboard
• Load each character from a file
• File is a sequence of memory locations
• Starting address of file is stored in the memory
  locationimmediately after the program
• If file character equals input character,
  increment counter
• End of file is indicated by a special ASCII
  value EOT (x04)
• At the end, print the number of characters and
  halt(assume there will be less than 10
  occurrences of the character)
• A special character used to indicate the end of a
  sequence is often called a sentinel.
• Useful when you dont know ahead of time how many
  times to execute a loop.

78
Flow Chart
An Example
79
Program (1 of 2)
An Example
80
Program (2 of 2)
An Example
81
LC-3 Data PathRevisited
Filled arrow info to be processed. Unfilled
arrow control signal.
82
Data Path Components

• Global bus
• special set of wires that carry a 16-bit signal
  to many components
• inputs to the bus are tri-state devices,that
  only place a signal on the bus when they are
  enabled
• only one (16-bit) signal should be enabled at any
  time
• control unit decides which signal drives the
  bus
• any number of components can read the bus
• register only captures bus data if it is
  write-enabled by the control unit
• Memory
• Control and data registers for memory and I/O
  devices
• memory MAR, MDR (also control signal for
  read/write)

83
Data Path Components

• ALU
• Accepts inputs from register fileand from
  sign-extended bits from IR (immediate field).
• Output goes to bus.
• used by condition code logic, register file,
  memory
• Register File
• Two read addresses (SR1, SR2), one write address
  (DR)
• Input from bus
• result of ALU operation or memory read
• Two 16-bit outputs
• used by ALU, PC, memory address
• data for store instructions passes through ALU

84
Data Path Components

• PC and PCMUX
• Three inputs to PC, controlled by PCMUX
• PC1 FETCH stage
• Address adder BR, JMP
• bus TRAP (discussed later)
• MAR and MARMUX
• Two inputs to MAR, controlled by MARMUX
• Address adder LD/ST, LDR/STR
• Zero-extended IR70 -- TRAP (discussed later)

85
Data Path Components

• Condition Code Logic
• Looks at value on bus and generates N, Z, P
  signals
• Registers set only when control unit enables them
  (LD.CC)
• only certain instructions set the codes(ADD,
  AND, NOT, LD, LDI, LDR, LEA)
• Control Unit Finite State Machine
• On each machine cycle, changes control signals
  for next phaseof instruction processing
• who drives the bus? (GatePC, GateALU, )
• which registers are write enabled? (LD.IR,
  LD.REG, )
• which operation should ALU perform? (ALUK)
• Logic includes decoder for opcode, etc.
