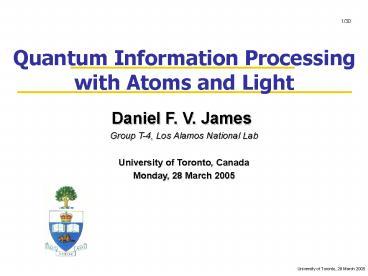

Quantum Information Processing with Atoms and Light

1
Quantum Information Processing with Atoms and
Light
Daniel F. V. James Group T-4, Los Alamos
National Lab University of Toronto,
Canada Monday, 28 March 2005
2
Research Interests
- coherence-induced changes in spectra (and other
things)
- novel synthetic aperture imaging techniques
- properties of polarized light and ellipsometry
- characterizing quantum states and processes
- physical boundaries of entanglement and entropy
(MEMS states)
- realizing quantum gates and detectors
- spin-based quantum solid-state quantum
computing architectures
- read-out techniques (optics, MRFM,cantilevers)
and tomography
- quantum dynamics of trapped ions (modes,
heating, motion...)
- quantum algorithms teleportation, factoring...
- scalable architectures
- quantum simulations (chaos, phase transitions
etc.)
3
Collaborators
-Quantum Optics Experiments Paul Kwiat
Andrew White Michael Di Rosa, Fio
Omenetto -Ion Trap Experiments Rainer
Blatt Ferdinand
Schmidt-Kaler -Solid State Quantum Technology
Marilyn Hawley Robert Clark -Classical and
Quantum Optics Theory Emil Wolf Gerard
Milburn Peter Milonni, Eddy Timmermans,
Gennady Berman, Gerardo Ortiz, Juan-Pablo Paz,
James Gubernatis
-LANL Postdocs John Grondalski Sergey
Ponomarenko
-Los Alamos Summer School David Etlinger,
Rochester/Northwestern David Hume,
Kentucky/Colorado Miho Ishibashi,
Salisbury/Stanford Matt Krems, Missouri
Rolla
4
Quantum Computing Basic Ideas
Classical digital computers Each register is
either 0 or 1
Quantum Computers Each register (qubit) can
be in a superposition of two states 0? and 1?
5
Quantum Memories
State of one quantum data register (qubit)
a??? b?1?
State of two qubits
a?????? b????1? ? c?1???? d?1??1?
State of three qubits
a????????? b???????1? ? c????1???? d????1??1?
e?1??????? f?1?????1?
? g?1??1???? h?1??1??1?
a, b??c and d etc. are the probability
amplitudes.
n qubits 2n pieces of information
Quantum memories are BIG
6
Quantum Parallelism
Operations on one qubit effect ALL of the data
in the quantum register.
Example bit flip on second qubit a??????
b????1? ? c?1???? d?1??1? ? b??????
a????1? ? d?1???? c?1??1?
Quantum computers perform complex operations on
very large registers very efficiently
7
Quantum Logic Gates
You can do ANYTHING if you can do the following
two things
8
Measurement and Readout
Projective measurement of each
qubit i.e. A?0? B?1? ? ?0? (probability
P0A2) OR A?0? B?1? ? ?1? (probability
P1B2)
N qubits store 2N bits of information and process
them efficiently, BUT you can only read out N
bits to get the final answer.
Restricts types of algorithms that can be
executed on a quantum computer global
mathematical properties like periodicities.
9
Killer App Factoring
Shors Algorithm what are the factors of the
integer n?
Period Finding ? Factoring
10
Classical factoring evaluate fn,x(a) for a
large number ( 2L-1 ) of values of a until you
can find r.
2L operations replaced by 1 operation
Quantum Fourier Transform and measurement gives
r.
11
Ion Traps
Cannot trap ions electrostatically (Earnshaws
Theorem) Do it dynamically (Paul trap)
oscillating saddle potential
Effective harmonic well (in all three
directions)
12
Phonon Modes
Ions coupled by Coulomb force ? ions
oscillations have normal modes.
D.F.V. James, Appl Phys B 66, 181-190 (1998)
13
Trapped Ion Quantum Computers
Harmonic potential
Excite phonons of the vibration modes quantum
bus for multi-qubit gates.
Efficient projective measurement
J. I. Cirac and P. Zoller , Phys Rev Lett 74,
4091 (1995)
14
Historical Timeline of Trapped Ion QC
1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
2005
Theory
Cirac Zoller
Cat motional states
cooling 2 ions
differential mode heating (James King et al.)
2 qubit entanglement
4 qubit entanglement
moving qubits
Deutsch-Jozsa Algorithm
geometric gate
Cirac-Zoller gate
sympathetic cooling
GHZ W states
error correction
tomography
15
Co-Authors of Deterministic Quantum
Teleportation with Atoms at Innsbruck, 4 May
2004.
Nature 429, 734 (2004)
16
What is Quantum Teleportation?
Quantum wavefunction Reconstruction - the
quantum state of a particle is transferred to
another particle by means of a classical
communication and a shared correlated resource
Analogy with Holography - optical wave front
reconstruction
wavefront - quantum state
correlated reference beams - entangled pair
Interference on film - Bell state measurement
film - classical information
- Quantum mechanics is a good preparation for
optics (Denis Gabor)
17
Quantum Teleportation Theory
three qubits
18
Bell state analysis measure which Bell state
the first two qubits are in, projecting third
qubit into one of four possible states
Single operation on output qubit recreates input
state
19

• -Continuous Variables photon number rather than
  polarization
• Kimble et al., Science 282, 706 (1998).
• Lam et al., Phys. Rev. A 67, 032302 (2003).

• NMR no entanglement, no projective measurement,
  no pure states
• Nielsen et al., Nature 396, 52 (1998).

20
The Tricky Part Bell State Detection
Measurement of the output gives a Bell state
detector
21
Teleportation Circuit
22
The Ca ion
D.F.V. James, Appl Phys B 66, 181-190 (1998)
23
Laser Operations
24
How to do a Controlled-Z gate
phonon
25
Trapped Ion-Phonon Controlled-Z gate
26
State Readout
what state is the atom in?
cannot detect single photons
over 95 detection efficiency
M.A. Rowe et al. (Wineland group) Nature 409,
791-794 (2001) - detection loophole
D. F. V. James and P. G. Kwiat, Phys. Rev.
Lett. 89, 183601 (2002) - photon detection
27
Results Fidelity of Teleportation measured for
300 trials
later results with Fidelities over 80 for all
states
28
Whats Next ? 15 5 x 3 (we hope!)
p/2
p/2
Z
p/2
p/2
Z
p/2
Z
Z
p/2
p/2
argument register (2 qubits)
function register (2 or 3 qubits)
29
Prospects for Trapped Ion QIP
Next year or two
- experiments with 5 qubits
- larger entangled states
- primitive versions of factoring
- error mitigation techniques (error correction,
DFS etc.)
- proof-of-principle quantum simulators
Scalability of ion traps?
- moving ions around (Boulder, Michigan, Ulm etc.)
- connected micro-traps (Innsbruck, Michigan)
- other paradigms ?
Does the final technology have to be solid
state?
30
Research Interests
- coherence-induced changes in spectra (and other
things)
- novel synthetic aperture imaging techniques
- properties of polarized light and ellipsometry
- characterizing quantum states and processes
- physical boundaries of entanglement and entropy
(MEMS states)
- realizing quantum gates and detectors
- spin-based quantum solid-state quantum
computing architectures
- read-out techniques (optics, MRFM,cantilevers)
and tomography
- quantum dynamics of trapped ions (modes,
heating, motion...)
- quantum algorithms teleportation, factoring...
- scalable architectures
- quantum simulations (chaos, phase transitions
etc.)
