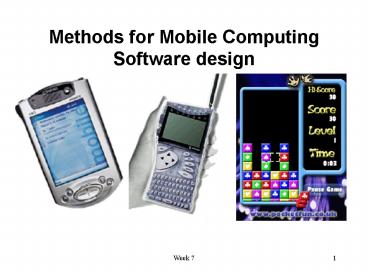

Methods for Mobile Computing Software design

1
Methods for Mobile Computing Software design
2
Requirement for a Mobile Computing design method

• Real mobile computing only emerged in the early
  nineties, so there are few examples of good
  practice
• Thus far few specific design methods / approaches
  has been devised
• In general software for mobile computing has not
  been overly efficient to use
• - Carried straight over from the Desktop PC
• - Software often adopts unsuitable interface
  styles
• - Usability is a common failing
• All in all the approach has devalued the
  experience and lowers users take-up of mobile
  computing

3
Requirement for a Mobile Computing design method

• We clearly need to
• Improve software quality by adding rigor to the
  design process
• Start to evaluate devices to establish
  limitations to form a capabilities
  specification to aid in the design process
• Need to produce a method framework
• Add usable tools, techniques and guidelines to
  aid designers getting things right first time

4
How do other domains help?

• Although we recognize mobile computing is scaled
  down compared to desktop computing many issues
  remain the same (but need careful focus
  scaling)
• A mobile method must address
• - Information gathering techniques
• - User modeling task models
• - Metaphor
• - Navigation design
• - Media selection
• - Interface design
• - Interaction design
• - Prototyping
• - Testing

5
The HAnDM method

• Research underway at Staffordshire University
• HAnDM (Handheld Application Design Method)
• Background to HAnDM A project to investigate
  challenges involved with mobile computing
  application design, and to devise a formalized
  development method
• - To address both design and implementation
• perspectives
• - Contain usable tools, techniques, models
  and
• guidelines
• - The overall goal is to produce a method to
• enhance software quality, and get it to a
  default
• level that is always usable and efficient

6
HAnDM Development approach

• Firstly needed to establish limitations of mobile
  computing software and hardware, forming a
  consolidated state-of-the-art mobile computing
  specification
• - Utilized 4 units (both software and
  hardware)
• - Output written as a formal specification
• Secondly contributory theory and methods were
  examined
• Involved the review of existing methods (e.g. all
  computing domains) to gain steps, models and
  techniques

7
HAnDM Development approach

• Thorough work also investigated information
  gathering techniques, user modeling, task models,
  metaphor, navigation models, prototyping,
  testing, media theory, interface design and
  interaction research, etc.
• The above is then utilized to produce the
  architecture of the method (with tools and
  techniques)
• - Gives a first workable version
• To further develop HAnDM, formative and
  evaluative case studies (artifacts) are used to
  upgrade the method, leading to a final version
• - Adds robustness to the approach

8
Formative development

• Used as a vehicle to help enhance the method,
  giving it robustness as already identified
• A set of four case studies (artifacts) used
• - A shopping application
• - An educational application
• - A classroom assistant application
• - A paramedic application
• After creation determine the quality of the
  artifact, inferior products reflect on
  deficiencies in the method
• Repair and improve the method
• Gives a revised second version

9
Evaluative development

• Test the second version of HAnDM
• Four case studies again used
• - A CSCW engineering design
• application
• - A navigational application
• - An organizer application
• - A designers drawing application
• Products again reviewed
• Method repaired
• Gives a third and final version
• - Fully validated by the 8 test artifacts

10
HAnDM method Steps

• Step One Card task model creation
• Step Two Integrate media
• Step Three Add interaction
• Step Four Implement software artifact

11
HAnDM Step One

• Card Task Model Creation
• Collect a specification on device and its
  software representation capabilities
• - e.g. Compaq iPaq / Windows PocketPC 3.0
• Specify a task outline (project brief)
• - e.g. AE data capture application,
  form-filling
• required, series of cards to elicit
  patient data, etc.
• Get user profile details
• - e.g. Paramedic working under pressure, no
  room
• for error, real-time data capture
  possibly required, etc.
• Gather task information
• - e.g. Get in the nitty-gritty level of
  information, what
• to do and how done

12
HAnDM Step One

• Card Task Model Creation (continued)
• Lay out information to cards
• - Review the task information gathered and
• divide it up into a workable series of
  cards (all
• independent of each other)
• Determine information requirements thoroughly
• - Review cards to check the information you

• want to show on a card is o.k.

13
HAnDM Step One

• Card Task Model Creation

14
HAnDM Step Two

• Integrate media
• Map card specifications to media (a screen at a
  time)
• Standard multimedia theory (specifically cut
  down)
• - Resource model is specific to device type
  and specific
• model (e.g. Nokia 7110)
• - Do a media combination analysis for each
  card
• HAnDM Step Three
• Add interaction
• Use card designs to inform interaction decisions
• Identify interface interaction mechanism and
  routes
• Choose actual interaction mechanism, e.g. pen,
  speech, or keyboard etc.
• Do an interaction combination analysis (if
  required)

15
HAnDM Step Four

• Implement Software Artifact
• Generate cards
• Add screen details
• - Media and interaction
• Build in a metaphor if
• required (PDAs and above)
• Test the software
• Repair any found voids
