Andy Crutchfield

1

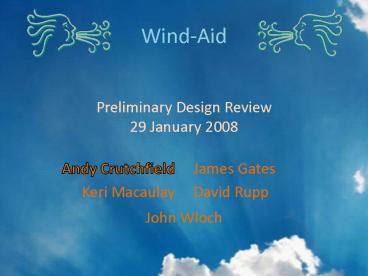

Wind-Aid
Preliminary Design Review 29 January 2008

• Andy Crutchfield
• Keri Macaulay
• James Gates
• David Rupp

John Wloch
2
Wind-Aid
Problem Statement

• Convert wind energy to storable electric energy
• Easily deployable (compact, portable, robust)
• Operate in wind speed of nominally 15 mph (wind
  speed varies over a 24 hr. period from 0-30 mph
  so need a storage capability)
• Power an emergency communication system with 20W
  at 12V continuous DC
• Able to be carried on a persons back or dropped
  from a helicopter at 20ft without a parachute

3
Wind-Aid
Current Status On Schedule

• Key Design Requirements
• Transporter
• Lightweight (lt40lbs)
• Compact (12x18x36)
• Operator
• Easy to use (no training necessary)
• Easy to set up (by one person in lt1hr)
• Operates a communications device (20W at 12V)
• Can operate under varying wind conditions (store
  18 hrs of energy and operate in 7-30 mph wind)
• Easy to assemble (done by 1 person)
• Relief Organization
• Cost (lt2000)
• Durable (lasts gt1 mo.)

• Potential Design Solutions
• Horizontal Axis Wind Turbine (HAWT)
• Vertical Axis Wind Turbine (VAWT)
• WindBelt

4
Wind-Aid
Last Week

• Action Items
• Created design requirements
• Quantitative and qualitative
• Individual Concept Memos
• Shared concepts in group brainstorming session
• Began work on webpage
• Began to convert brainstorming into a cohesive
  concept
• Researched suggested options
• Developed PDR format
• Group project planning

5
Wind-Aid
Next Week

• Action Items
• Analysis on turbine design (HAWT v. VAWT v.
  WindBelt)
• Further, quantitative research
• Investigate electric generators
• Continue to construct webpage
• Choose final concept
• Discuss potential topics for trade studies
• Show Stoppers
• Adding frames to webpage
• Ensuring feasibility of final concept choice

6
Wind-Aid
Questions?
