Name Resolution and Domain Name System DNS

1

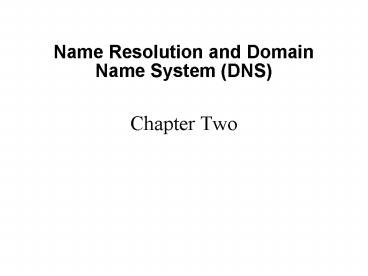

Name Resolution and Domain Name System (DNS)

• Chapter Two

2
NetBIOS to IP Address Resolution

• 16 character name
• 15 characters for name
• 16th function
• Looks in LMHOSTS
• NETBIOS to IP address static resolution
• Broadcast for name tcpip11 to be resolved
• Alternatively, contact WINS (Windows Internet
  Naming Service) server.
• Flat database, not hierarchical like DNS
• Computers register with WINS server

3
Understanding DNS Name Resolution

• IP addresses - formed from four octets of numbers
  from 1 to 254
• 192.168.1.21 for example
• Name resolution is the process of converting
  these numerical IDs into names the average person
  can read and remember
• www.google.com for example

4
Understanding DNS Name Resolution

• DNS created a hierarchical namespace
• Root (.)
• Top-level domain (.edu, .gov, .ca)
• Second-level domain (pbcc, google, military)
• Host (www, tcpip1, ftp)
• FQDNs www.pbcc.edu
• Relative distinguished names - www

5
Domains
6
Understanding DNS Name Resolution

• Dynamic DNS (DDNS) provides the means for
  updating a zones primary server automatically
• Will only work with Windows 2000/XP clients

7
Understanding DNS Name Resolution

• Forward lookup query - standard method of name
  resolution in DNS
• Client sends a query to its primary DNS server,
  which in turn forward the request (if necessary)
  until the name is fully resolved
• A records

8
Understanding DNS Name Resolution

• Sites are then cached on the primary DNS server,
  to avoid unnecessary traffic
• Reverse lookup queries can be used in
  troubleshooting, or for security purposes
• PTR records

9
Operation of DNS

• Walk the tree
• Progressive query the DNS database structured
  from the root (.) to top level (com) to second
  level (google) to subdomain (business) to www.

10
Understanding the Different Types of Name Servers

• Primary DNS servers
• Secondary DNS servers
• Caching-only name servers
• Forwarding DNS servers

11
Primary DNS Servers

• The primary DNS server is the authoritative
  server for the zone
• Any changes to the DNS domain must be made here
• Read/Write Copy of DNS Database

12
Secondary DNS Servers

• Serves as a backup for the primary DNS server
  (failover)
• Can also be used for load balancing
• Read Only Copy of DNS Database

13
Caching-only Name Servers

• Functions only to cache name resolution queries
• Advantage is that network traffic is
  significantly reduced

14
Forwarding Servers
15
Configuring and Managing DNS Zones

• A zone is a partitioned portion of the overall
  namespace
• Separate administration.
• Which DNS server ultimately has authority for
  that domains records.

16
Understanding Zone Transfers

• Zone transfer - process by which changes on the
  primary DNS server are replicated to all
  secondary servers in the zone
• Full zone transfer
• Incremental transfer
• DNS Notify

17
Full Zone Transfer

• Entire zone database file is replicated between
  primary and secondary servers
• The secondary servers initiate

18
Incremental Transfer

• Replicates only that portion of the database that
  has been changed
• Primary server keeps track of the changes through
  the use of a version history

19
DNS Notify

• An update to incremental transfer process
• Primary server notifies secondary servers
  whenever an update is made to the database
• Helps the zone database remain consistent
  throughout the enterprise

20
Installing DNS

• Before installing, you must configure a static IP
  address

21
Installing DNS
22
DNS Installation

• Install DNS

23
Configuring DNS for Active Directory

• Consider the following when configuring DNS
• Root servers
• Forward lookup zones
• Reverse lookup zones
• Resource records
• Dynamic DNS

24
Configuring DNS for Active Directory

• Root servers - create a root server only if your
  network is not connected to the Internet. Using
  this configuration, the root server will be
  authoritative for any namespace you create.

25
Configuring DNS for Active Directory

• Forward lookup zones
• Active Directory-integrated
• Standard Primary
• Standard Secondary

26
Configuring DNS for Active Directory

• Active Directory-integrated zone - through AD,
  all DCs are replicated a fully writeable copy of
  the zone database
• This provides a higher level of fault tolerance
  and flexibility

27
Configuring DNS for Active Directory

• Standard Primary zone - standard zone
  configuration, must be used with non-Windows 2000
  servers
• Standard Secondary zone - draws its zone
  information from one or more primary servers

28
Configuring DNS for Active Directory

• Standard Secondary zone - specify the name or
  names of the zones from which to receive zone
  information

29
Configuring DNS for Active Directory

• Reverse Lookup Zones - create these to enable
  tools such as nslookup. Use the configurations
  available for forward lookup zones.

30
Configuring DNS for Active Directory

• Resource records are basic units of information
  in DNS.
• Structure of files
• Owner
• TTL
• Class
• Type
• RDATA

31
Configuring DNS for Active Directory
32
Configuring DNS for Active Directory

• Commonly used resource records
• Start of Authority (SOA)
• Name Server (NS)
• Address (A)
• Pointer (PTR)
• Mail Exchanger (MX)
• Service (SRV)
• Canonical Name (CNAME)

33
Configuring DNS for Active Directory

• Dynamic DNS (DDNS) - automatically adds resource
  records when a new Windows 2000 client boots up.

34
Monitoring and Troubleshooting DNS for AD
35
Monitoring and Troubleshooting DNS for AD
36
Monitoring and Troubleshooting DNS for AD

• DNS Logging is a troubleshooting tool.

37
Monitoring and Troubleshooting DNS for AD

• Name resolution is first attempted through cache.
• Clear local names that have been cached.
• ipconfig /flushdns

38
Troubleshooting DNS for AD

• Use nslookup for troubleshooting and as a
  security tool
• server tcpip1.central.pbcc.edu connect to DNS
  server you are testing
• tcpip4.north.pbcc.edu attempt to resolve a name
  to ip address
• ping FQDN ping tcpip4.north.pbcc.edu
