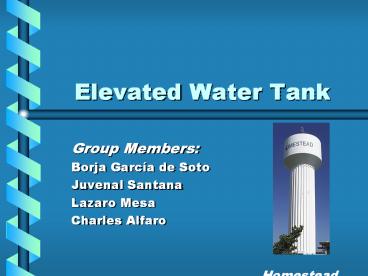

Elevated Water Tank

1
Elevated Water Tank

• Group Members
• Borja García de Soto
• Juvenal Santana
• Lazaro Mesa
• Charles Alfaro

Homestead, Fl
2
Dimensions of TowerCity of Homestead Elevated
Water Tank

• Cylindrical shape.
• Tower height of 34.24 meters.
• Diameter of Tower 8.23 meters.

3
Dimensions of TankCity of Homestead Elevated
Water Tank

• Cylindrical shape with a dome.
• Maximum volume of water is 1,893 m3 (500,000
  gallons)
• Tank height of 11.58 meters, plus 2.00 meters
  dome height.
• Diameter of Tank 15.00 meters.

4
MaterialsCity of Homestead Elevated Water Tank

• Built in 1978 by P.D.M. Hydrostorage Inc.
• Made of Corrugated Steel/Steel.
• Containing Three Concrete Floors.
• A Foundation of 3 Meters Thickness of Reinforced
  Concrete.

5
Water SupplyCity of Homestead Elevated Water Tank

• Water comes from the Biscayne Aquifer, a
  groundwater source.
• The groundwater is treated at Harris Field
  treatment plant.
• The treated water is pumped through the
  inflow/effluent pipes.

6
Water SupplyCity of Homestead Elevated Water Tank

• Water enters to the four main supplier wells and
  is pumped to the tank via four individual pumps.
• Each well containing an individual pump of 2.84
  m3 per minute capacity.
• An average of 11.36 m3 per minute leave the tank.

7
Water Volume CurveCity of Homestead Elevated
Water Tank
8
DamagesCity of Homestead Elevated Water Tank

• There have not been any major damages to the
  tower since it was built.
• During hurricane Andrew only the two entrance
  doors were damaged.

9
MaintenanceCity of Homestead Elevated Water Tank

• The structure of the tower is inspected every
  five years.
• Every year they measure the paint thickness, and
  repaint it if necessary.
• The inside of the tank contains a layer of
  catargic, in order to avoid corrosion.

10
ImprovementsCity of Homestead Elevated Water Tank

• From a single flow meter, to a four individual
  flow meter in each of the tanks feeding pipes.

11
Special Thanks toCity of Homestead Elevated
Water Tank

• Richard Grant - Chief Operator
• Jose M. Delgado - Operator
• Brian Coleman - Instrument Technician
• Steve Anderson - Operator

12
Thank you for your attention.
