Digital Testing: Scan Design

1

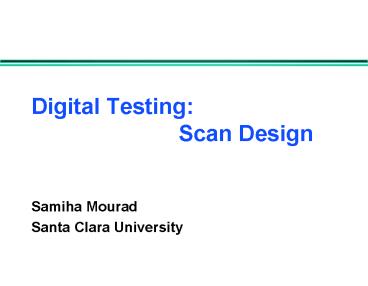

Digital Testing Scan Design

• Samiha Mourad
• Santa Clara University

2
Outline

• Problems with sequential testing
• What is scan
• Types of scan
• Types of storage devices
• Scan Architectures
• Cost of Scan
• Partial Scan
• Stitching flip-flops

3
Problems Impeding Testing

• Complexity testing sequential circuits due to
• feedback loops
• Placement of the circuit in a known state
• high chance for hazard, essential hazard
• Timing problems in general

4
What is Scan Design

• This DFT technique is used mainly for synchronous
  circuit represented by the Huffman model
  presented in Chapter 3
• We assume the use of D-flip-flops only
• A mux is placed at the input of each flip-flop
  in such a way that all flip-flops can be
  connected in a shift register for one mux
  selection and to work in normal mode in the
  other

5
A Generalized Huffman Model
6
A Generalized Huffman Model
7
What is Scan Design

• This DFT technique is used mainly for synchronous
  circuit represented by the Huffman model
  presented in Chapter 3
• We assume the use of D-flip-flops only
• A mux is placed at the input of each flip-flop
  in such a way that all flip-flops can be
  connected in a shift register for one mux
  selection and to work in normal mode in the
  other

8
Possible Scan Scheme
9
How Scan DFT Works

• The combinational part is partitioned
• Each input to the FF is considered an output to
  the circuit
• each output of the FF is an input to the circuit
• Connect the FF in a shift register and test them
• Test the combinational part

10
Testing the Combinational Part

• Repeat until all patterns are applied.
• a. Set SE 1, shift in the initial values on the
  flip-flops. (These are the signals at the output
  of the latches for the first test pattern.)
• b. SE 0, apply a pattern at the primary inputs.
• c. Clock the circuit once and observe the results
  at the primary outputs.
• d. Clock the circuit M times.
• End repeat.

11
An Example
12
An Example
13
Inserting the Muxes
14
Test Application
15
Types of Storage Devices

• Multiplexed input flip-flop
• Two-port flip-flop works with two nonoverlapping
  clocks
• Latch-based Scan Design requires
• 2-latches clocked with non-overlapping clocks
• 3-latch clocked with three phases

16
2-Port Flip-flops

• Port 1D works with CK1 in normal operation mode
  as well as at the capture mode of testing
• Port 2D works with CK2 in shift mode
• To avoid essential hazard during testing, CK1 and
  CK2 are non-overlapping phases. During ?t, non of
  them is working

17
Clocked Transparent Latches

• (a) A D-latch implemented in NAND gates
• (b) An extra NAND is added to suppress static
  hazard
• (c) The corresponding Karnaugh map

18
Latches versus Flip-flops
19
Latch-based Shift Mode

• Because of the tranperancy property of the
  latches shown in the timing diagram of the
  previous slide
• Latches cannot be used in a shift register unless
  every pairs works in a master-slave fashion as
  shown above
• It is preferable that the two clocks be
  non-overlapping

20
Level-sensitive Latch

• The latch works with the 3 phases A, B and C
• For normal operation, clocks B and C
• For shift operation, clocks B and A
• Two-port flip-flop works with two non-overlapping
  clocks

21
Polarity Hold Latch (IBM)
22
Scan Design Architectures

• Several architectures
• Multiplexed flip-flops design
• Level-sensitive scan design
• Scan set scan design
• Derivative of scan design
• Parallel scan chains
• Partial scan

23
Level-Sensitive Scan Design

• Each flip-flop of the original design is replaced
  by a polarity hold (an LSSD) latch
• The configuration is shown in the next slide
• The input of 2D in the first latch is scan-in
• The output of the second latch of the last pair
  is scan-out
• Of course here there is no scan control signal as
  in the muxed design studied earlier
• Instead, the three phases A, B, and C operation
  control the normal and shift modes

24
LSSD
25
How does LSSD Work?

• 1. Test the latches.
• Set A B 1.
• Apply 0 and 1 alternatively at SI.
• Clock A, then clock B, N times.
• 2. Initialize.
• Shift in the initial values on the flip-flops.
  (These are the signals at the output of the
  latches for the first test pattern)

26
LSSD Testing

• Repeat until all patterns are applied.
• a. Apply a pattern at the primary inputs.
• b. Clock C then clock B once and observe the
  results at the primary outputs.
• c. Shift out the response
• Apply the initialization for the next pattern at
  SI.
• Clock A, then clock B, M times.
• Observe at the primary outputs and the SO pins.

27
Scan Set Design

• An architecture that allows on-line scan testing

28
Multiple Scan Chains

• Instead of stringing all the flip-flops or the
  latches in one shift register
• Partition them is several chains
• The advantages are
• compatible with multiple clock designs
• Shorten test application time
• Simplify the stitching of the flip-flops
• But, may require extra pins

29
Multiple Scan Chains
30
What Why Partial Scan Design

• To scan only a subset of the flip-flops
• The circuit is easier to test by the sequential
  ATPG.
• The area overhead is minimized.
• The placement of the flip-flops is such that the
  interconnects are minimized.
• The delays are shortened.

31
Partial Scan Design

• To scan only a subset of the flip-flops
• How to select this subset?
• It is an NP-complete problem
• Heuristics on graph model to select the minimum
  vertex set (MVS) to transform the FSM into an
  acyclic graph

32
An Example
33
Fault Coverage

• To scan only a subset of the flip-flops
• How to select this subset?
• It is an NP-complete problem
• Heuristics on graph model to select the minimum
  vertex set (MVS) to transform the FSM into an
  acyclic graph

34
Partial Scan
35
Possible Implementations
36
Scan Chain Order
37
The Cost of Scan Design

• Area (muxes, extra routing)
• Additional I/Os
• Performance, delays within the flip-flops
• Heat when testing at speed

38
Stitching Effect
