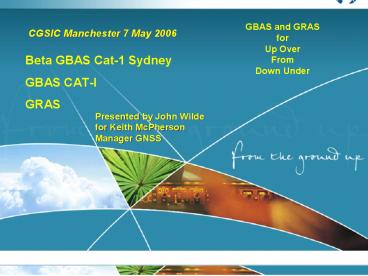

CGSIC Manchester 7 May 2006

1
GBAS and GRAS for Up Over From Down Under
CGSIC Manchester 7 May 2006
Beta GBAS Cat-1 Sydney GBAS CAT-I GRAS
Presented by John Wilde for Keith McPherson Man
ager GNSS
2
Presentation

• GBAS Working Group Meeting 4
• GBAS Sydney
• GBAS Cat-1 Certification
• GRAS

3
Problem Solving
By looking at the problem from a different
perspective, Australians could see the problems
and issues with other augmentation systems
4
GBAS Working Group Meeting 4

• Eurocontrol and FAA meeting
• Normally held in Europe and USA
• Held in Sydney in February 2006
• 76 delegates, 22 countries
• Aim is to harmonise GBAS Cat-1 in Europe and USA
• Airservices Australia now attending as it is
  taking the lead role in GBAS Cat-1 certification

• Next meeting in Brussels date TBA

5
GBAS Cat-1 Sydney
6
GPS Reference Receiver Antennas
VHF Data Link Antenna
GLS Facility Shelter

• The Hook at Sydney airport extending into
  Botany Bay

7
Terrain Restrictions
Guided Departures
GNSS Operational Benefits
Angled Approach
Community Noise Concerns
Straight Approach
Runways
Parallel Approach
Sectored Approach
GRAS and GBAS provide Vertical Guidance and Fle
xible approaches
Curved Approach
8
Whats New in Sydney?

• Worlds first flight inspection of an ICAO GBAS
  Cat-1 signal in space for use by revenue earning
  aircraft, using a States accredited flight
  inspection aircraft
• Engineering Readiness Review completed
• Operational Readiness Review completed
• Procedures Designs finished in accordance with
  SARPs

• Worlds first revenue earning flights by Qantas
  in May

• All Qantas B-737-800 pilots trained and ready to
  go

• System is not certifiable as the software is not
  built

• to DO-178B or equivalent

9
Flight Inspection Results
10
Beta GBAS Cat-1 Sydney

• Phase 1
• Hazard Analysis completed
• Aircraft allowed to fly to Minimum Vectoring
  Altitude

• Allows pilots and controllers to settle into the
  new technology

• Further Phases
• Evaluate if we are happy to lower the minima
  with experience

• on a non certifiable system

11
Opera House
Sydney Harbor Bridge

• Sydney skyline during a go-around

12
ICAO Compliant GBAS Cat-I in Australia

• Airservices Australia has partnered with
  Honeywell International Inc to bring an ICAO
  compliant GBAS Cat-I to completion

• Started 10 April 2006
• Approximately 22 months to complete RTCA
  DO-178B/278 compliant software Approximately 6
  months of certification

• Regulator (Civil Aviation Safety Authority)
  involved from Day 1

• Aim is to have CASA approve Part 171 change to
  allow operation of completed system by mid 2008

• Technical Cooperation Agreement signed with the
  FAA to share information, staff and procedures

13
ICAO Compliant GBAS Cat-I in Australia

• Will build and certify to FAA Doc 2937A, which
  will qualify the systems as ICAO GBAS SARPs
  compliant

• FAA will issue Type Approval for the ground
  station only as a Non-Fed system

• Once Type Approval achieved, system migrates to
  Australia for the full certification program

• System will be built to enable elliptical or
  horizontal polarised broadcasts

• Certification involves ground station, site
  surveys, maintenance plans, logistics plans,
  flight inspection plans, pilot training, pilot
  licensing, ATC training

14
GRAS

• APV-I (0.999 availability) will be achieved in
  low density areas

• APV-I (0.9999 availability) will be achieved in
  high density areas

• APV-II was assessed and the benefit gained was
  considered not worth the additional investment

• USA found the same, that APV-II was a significant
  cost increase over APV-I for minimal benefit

• ICAO only requires APV-I

15
What we are trying to avoid
16
GRAS

• Phase 1 System Definition was completed in March
  2006

• Phase 2 commenced 10 April 2006
• ICAO Council approved GRAS SARPs in February 2006


• GRAS SARPs to be issued as Annex 10 Amendment 81
  on 23 November 2006

17
GRAS

• RTCA GRAS MOPS (Avionics) now in penultimate
  draft

• To commence Final Review and Comments (FRAC) mid
  year

• MOPS cater for high end aircraft, regional,
  charter and general aviation

• Queensland University of Technology PhD students
  are building a General Aviation aircraft GRAS
  receiver


18
GRAS CERTIFICATION

• 8 GRAS Reference Stations in Australia
• 4 GRAS VHF Stations in Far North Queensland
• Cairns and Cape York Peninsula
• 2 Master Control Stations
• Test in worst ionospheric conditions available in
  Australia

• Test in worst weather conditions - tropical rain
  storms

• Test continuity and maintenance in inaccessible
  areas, where repair teams can take 3 days to get
  to site.


19
2nd Last Message

• Airservices Australia and Honeywell are forging
  ahead with GBAS Cat-1 and GRAS development and
  certification

• The synergy between GBAS and GRAS avionics is so
  close that the combination provides a cost
  effective solution to augmentation


20

• Final Message
• No single augmentation system
• provides a global answer
• There is a synergy between, and a need
• for, all four ICAO augmentation systems

21
Thank you from Down Under
