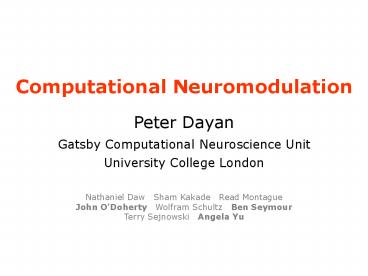

Computational Neuromodulation

1
Computational Neuromodulation

• Peter Dayan
• Gatsby Computational Neuroscience Unit
• University College London

Nathaniel Daw Sham Kakade Read Montague
John ODoherty Wolfram Schultz Ben
Seymour Terry Sejnowski Angela Yu
2

• 5. Diseases of the Will
• Contemplators
• Bibliophiles and Polyglots
• Megalomaniacs
• Instrument addicts
• Misfits
• Theorists

3
Theorists
There are highly cultivated, wonderfully endowed
minds whose wills suffer from a particular form
of lethargy. Its undeniable symptoms include a
facility for exposition, a creative and restless
imagination, an aversion to the laboratory, and
an indomitable dislike for concrete science and
seemingly unimportant data When faced with a
difficult problem, they feel an irresistible urge
to formulate a theory rather than question
nature. As might be expected, disappointments
plague the theorist
4
Computation and the Brain

• statistical computations
• representation from density estimation (Terry)
• combining uncertain information over space, time,
  modalities for sensory/memory inference
• learning as a hierarchical Bayesian problem
• learning as a filtering problem
• control theoretic computations
• optimising rewards, punishments
• homeostasis/allostasis

5
Conditioning
prediction of important events control in
the light of those predictions
policy evaluation policy improvement

• Ethology
• Psychology
• classical/operant
• conditioning

• Computation
• dynamic programming
• Kalman filtering
• Algorithm
• TD/delta rules

• Neurobiology

neuromodulators amygdala OFC nucleus
accumbens dorsal striatum
6
Dopamine

• drug addiction, self-stimulation
• effect of antagonists
• effect on vigour
• link to action
• scalar signal

R
L
R
L
Schultz et al
R
no prediction
prediction, reward
prediction, no reward
7
Prediction, but What Sort?

• Sutton

predict sum future reward
TD error
8
Rewards rather than Punishments
TD error
R
L
V(t)
R
no prediction
prediction, reward
prediction, no reward
dopamine cells in VTA/SNc
Schultz et al
9
Prediction, but What Sort?

• Sutton
• Watkins policy evaluation

predict sum future reward
TD error
10
Policy Improvement

• Sutton define p(xM) do R-M on
• uses the same TD error
• Watkins value iteration with

11
Active Issues

• exploration/exploitation
• model-based (PFC)/cached (striatal) methods
• motivational influences
• vigour
• hierarchical control (PFC)
• hyperbolic discounting, Pavlovian misbehavior and
  the will
• representational learning
• appetitive/aversive opponency
• links with behavioural economics

12
Computation and the Brain

• statistical computations
• representation from density estimation (Terry)
• combining uncertain information over space, time,
  modalities for sensory/memory inference
• learning as a hierarchical Bayesian problem
• learning as a filtering problem
• control theoretic computations
• optimising rewards, punishments
• homeostasis/allostasis
• exploration/exploitation trade-offs

13
Uncertainty
Computational functions of uncertainty

• weaken top-down influence over sensory
  processing
• promote learning about the relevant
  representations

14
Norepinephrine

• vigilance
• reversals
• modulates plasticity? exploration?
• scalar

15
Aston-Jones Target Detection
detect and react to a rare target amongst common
distractors

• elevated tonic activity for reversal
• activated by rare target (and reverses)
• not reward/stimulus related? more response
  related?

16
Vigilance Task

• variable time in start
• ? controls confusability

• one single run
• cumulative is clearer

• exact inference
• effect of 80 prior

17
Phasic NE

• NE reports uncertainty about current state
• state in the model, not state of the model
• divisively related to prior probability of that
  state
• NE measured relative to default state sequence
• start ? distractor
• temporal aspect - start ? distractor
• structural aspect target versus distractor

18
Phasic NE

• onset response from timing
• uncertainty (SET)
• growth as P(target)/0.2 rises
• act when P(target)0.95
• stop if P(target)0.01
• arbitrarily set NE0 after
• 5 timesteps

(small prob of reflexive action)
19
Four Types of Trial
19
1.5
1
77
fall is rather arbitrary
20
Response Locking
slightly flatters the model since no
further response variability
21
Interrupts/Resets (SB)
PFC/ACC
LC
22
Active Issues

• approximate inference strategy
• interaction with expected uncertainty (ACh)
• other representations of uncertainty
• finer gradations of ignorance

23
Computation and the Brain

• statistical computations
• representation from density estimation (Terry)
• combining uncertain information over space, time,
  modalities for sensory/memory inference
• learning as a hierarchical Bayesian problem
• learning as a filtering problem
• control theoretic computations
• optimising rewards, punishments
• homeostasis/allostasis
• exploration/exploitation trade-offs

24
Computational Neuromodulation

• general excitability, signal/noise ratios
• specific prediction errors, uncertainty signals

25
Learning and Inference

• Learning predict control
• ? weight ? (learning rate) x (error) x (stimulus)
• dopamine
• phasic prediction error for future reward
• serotonin
• phasic prediction error for future punishment

• acetylcholine
• expected uncertainty boosts learning
• norepinephrine
• unexpected uncertainty boosts learning

26
Learning and Inference
context
expected uncertainty
unexpected uncertainty
top-down processing
NE
ACh
cortical processing
prediction, learning, ...
bottom-up processing
sensory inputs
27
Temporal Difference Prediction Error
High Pain
0.8
1.0
0.2
0.2
Low Pain
0.8
1.0
predict sum future pain
TD error
? weight ? (learning rate) x (error) x (stimulus)
28
Temporal Difference Prediction Error
TD error
Prediction error
Value
High Pain
0.8
1.0
0.2
0.2
Low Pain
0.8
1.0
29
Temporal Difference Prediction Error
experimental sequence..
A B HIGH C D LOW C B HIGH
A B HIGH A D LOW C D
LOW A B HIGH A B HIGH C
D LOW C B HIGH
MR scanner
TD model
Brain responses
?
Ben Seymour John ODoherty
30

TD prediction error ventral striatum
Z-4
R
31
Temporal Difference Values
dorsal raphe?
right anterior insula
32
Rewards rather than Punishments
TD error
R
L
V(t)
R
no prediction
prediction, reward
prediction, no reward
dopamine cells in VTA/SNc
Schultz et al
33
TD Prediction Errors

• computation dynamic programming and optimal
  control
• algorithm ongoing error in predictions of the
  future
• implementation
• dopamine phasic prediction error for reward
  tonic punishment
• serotonin phasic prediction error for
  punishment tonic reward
• evident in VTA striatum raphe?
• next action motivation addiction misbehavior

34
Two Cohenesque Theories

• Qualitative (AJ) exploration v exploitation
• high tonic mode involves labile attention
• search for better options
• important if short term reward rate is below par
• implemented by changed brittleness?
• Quantitative (EB) gain change in decision nets
• NE controls balance of
• recurrence/bottom-up
• implements changed
• S/N ratio with target
• detect to detect
• barely any benefit
• why only for targets?

35
Task Difficulty

• set ?0.65 rather than 0.675
• information accumulates over a longer period
• hits more affected than crs
• timing not quite right

36
Intra-trial Uncertainty

• phasic NE as unexpected state change within a
  model
• relative to prior probability against default
• interrupts (resets) ongoing processing
• tie to ADHD?
• close to alerting (AJ) but not necessarily tied
  to behavioral output (onset rise)
• close to behavioural switching (PR) but not DA
• farther from optimal inference (EB)
• phasic ACh aspects of known variability within a
  state?

37
Where Next

• dopamine
• tonic release and vigour
• appetitive misbehaviour and hyperbolic
  discounting
• actions and habits
• psychosis
• serotonin
• aversive misbehaviour and psychiatry
• norepinephrine
• stress, depression and beyond

38
Experimental Data

• ACh NE have similar physiological effects
• suppress recurrent feedback processing
• enhance thalamocortical transmission
• boost experience-dependent plasticity

(e.g. Kimura et al, 1995 Kobayashi et al, 2000)
(e.g. Gil et al, 1997)
(e.g. Bear Singer, 1986 Kilgard Merzenich,
1998)

• ACh NE have distinct behavioral effects
• ACh boosts learning to stimuli with uncertain
• consequences
• NE boosts learning upon encountering global
• changes in the environment

(e.g. Bucci, Holland, Gallagher, 1998)
(e.g. Devauges Sara, 1990)
39
Model Schematics
context
expected uncertainty
unexpected uncertainty
top-down processing
NE
ACh
cortical processing
prediction, learning, ...
bottom-up processing
sensory inputs
40
Attention
attentional selection for (statistically) optimal
processing, above and beyond the traditional view
of resource constraint
0.1s
0.1s
0.2-0.5s
0.15s
generalize to the case that cue identity changes
with no notice
41
Formal Framework
ACh
NE
variability in quality of relevant cue
variability in identity of relevant cue
cues vestibular, visual, ...
target stimulus location, exit direction...
avoid representing full uncertainty
Sensory Information
42
Simulation Results Posners Task
vary cue validity ? vary ACh
fix relevant cue ? low NE
43
Maze Task
example 2 attentional shift
no issue of validity
44
Simulation Results Maze Navigation
fix cue validity ? no explicit manipulation of ACh
45
Simulation Results Full Model
46
Simulated Psychopharmacology
50 NE
ACh compensation
50 ACh/NE
NE can nearly catch up
47
Summary

• single framework for understanding ACh, NE and
  some
• aspects of attention
• ACh/NE as expected/unexpected uncertainty
  signals
• experimental psychopharmacological data
  replicated by model simulations
• implications from complex interactions between
  ACh NE
• predictions at the cellular, systems, and
  behavioral levels
• activity vs weight vs neuromodulatory vs
  population representations of uncertainty
