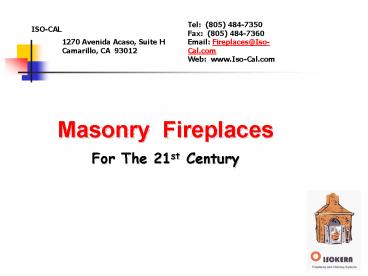

Masonry Fireplaces For The 21st Century

1
Masonry FireplacesFor The 21st Century
2

• ISOKERN is a 50-year old Danish-owned company.
  It started by producing chimney products for use
  in Europe and evolved into the company that it is
  today. Earthcore Industries based in
  Jacksonville, Florida, is the exclusive
  distributor for ISOKERN in North America.
• Since the 1980s ISOKERN has allowed architects,
  contractors, homeowners and commercial users the
  opportunity of having a full masonry system
  without the intense labor expense of traditional
  masonry construction.
• ISOKERN products are made out of Icelandic pumice
  that is over 2500 year old. The pumice is mined
  only in Iceland to ensure organic-free pumice of
  consistent high quality. Pumice is then mixed
  with fiber reinforced concrete and poured into
  molds to produce the products.
• Approvals/Listings
• ICBO 5017
• UL LISTED 127, 1777, ULC 6610, 103 HT
• WARNOCK HERSEY
• CITY OF LOS ANGELES RR 25483

3
Drilling for Placement of Rebar
Applying Epoxy to Clean Hole
4
First Two Courses of Isokern Back and Side
Walls
Third Course Done and Ready to Grout
This is standard 30 height. To make it higher
add height extensions in 10 increments.
5
Sealing of Back Walls and Joint where Damper
Meets Isokern Damper Blocks
Grout Sides Complete Using 2500 PSI Concrete Mix
6
Top of Isokern with Inswool H.P. Blanket
Installed Under TF-13 Flue Collar
Filling in All Cracks Front, Rear and Sides
with Isokern Mix
7
Custom Built Masonry Fireplace
Completed 42x30 Isokern With TF-13 Flue Collar
8
60x54 Isokern
Isokern Fireplace and Flue
9
Isokern Fireplace with Arch and Depth Extension
10
Isokern Fireplace with 8 Raised Metal Base After
Primary Installation
8 Raised Metal Base Before Fireplace Installation
11
Picture of Isokern on Sunken 8 Raised Metal
Base with 20 Hearth Extension Added
Picture of the Same Shot Showing Size of Box
12
Isokern 48x48 with TF-13 Air Cooled
Flue
Isokern Fireplace System with Offset
Flue
13
View of Isokern Ready to Receive Flue Transition
Collar
Isokern Fireplace Before and After
14
Picture of Framing to Accommodate Sunken 8 Metal
Base
Wood Floor Application with Framing Sunk into
Floor
15
Isokern 36x30 Fireplace in a Kitchen With
Cabinet Storage Underneath
Isokern 36x40 See-Through Fireplace
16
Isokern 36x48 with 2 Split Herringbone and
Salmon Colored Fire Brick
Interior Isokern fireplace with 1¼ Split
Herringbone
17
42x36 Isokern with Outside Kit and Gas Log
Starter with Running Bond, Our Standard Brick
Pattern
Drywall Installed Around Finished Isokern
Fireplace Warnock Hersey Approval Attached to
Every Isokern Fireplace
18
Isokern Corner Fireplace in a Kitchen with
Cabinet Counter as Non-Combustible Hearth
19
Finished 48x48 Isokern in Custom House in
Montecito
20
Finished Isokern Fireplaces in Monticeto
21
Finished Isokern Fireplace in Kitchen
22
Finished 36x36 Isokern with Split Herringbone
in Study of 18,000 Sq Ft Home in Beverly Hills
Finished 48x48 Isokern with Split Herringbone
in Living Room of the Same House
23
42x42 Isokern with Running Bond Brick in Ojai
Valley
42x30 Isokern on Raised Hearth in Upper Ojai
Valley Metal Part of Glass Door System
24
Exterior Fireplace with Depth Extension and Arch
Multi-Layer Surround Made of Foam
25
Exterior Fireplace
26
Finished Exterior Fireplace with Multi-Layered
Foam Surround
27
Exterion Isokern Fireplace, Mantel is Part of
Depth Extension.
28
Exterior Isokern Fireplace with Isokern Flue
and Custom Copper Cap. Isokern Fireplaces are
At Home in an Exterior Application just as
They are in an Interior Application.
29
Finished 42x 40 Isokern in Custom House in
Montecito
30
36x48 Isokern with Metal Flue Framed With
2x4s and Finshed with Stucco
Exterior Isokern with Standard Running Bond
