Final

1

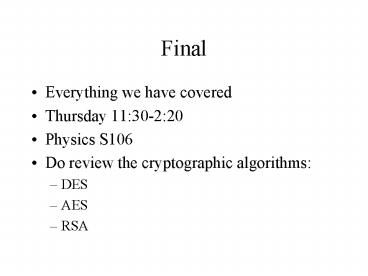

Final

• Everything we have covered
• Thursday 1130-220
• Physics S106
• Do review the cryptographic algorithms
• DES
• AES
• RSA

2
Diffie-Hellman

• Security relies on the difficulty of computing
  logarithms in these fields
• discrete logarithms takes O(e log n log log n)
  operations
• The algorithm
• two people Alice and Bob who wish to exchange
  some key over an insecure communications channel.
• They select a large prime p (200 digit), such as
  (p-1)/2 should also be prime
• They also select g, a primitive root mod p
• g is a primitive if for each n from 0 to p-1,
  there exists some a where ga n mod p.

3
Diffie-Hellman

• The algorithm
• The values of g and p dont need to be secret
• Alice then chooses a secret number xA
• Bob also chooses a secret number xB
• Alice and Bob compute yA and yB respectively,
  which are then exchanged
• yA gxA mod p yB gxB mod p
• Both Alice and Bob can calculate the key as
• KAB gxA.xB mod p
• yAxB mod p (which B can compute)
• yBxA mod p (which A can compute)
• The key may then be used in a private-key cipher
  to secure communications between A and B

4
Merkle-Hellman

• Example
• Consider the superincreasing sequence
• 2, 5, 9, 21, 45, 103, 215, 450, 946
• Define the function f as
• f(x) (1289x) mod 2003
• The public key is then
• 575, 436, 1586, 1030, 1921, 569, 721, 1183, 1570

5
Merkle-Hellman

• Example
• To encrypt x 101100111 we do
• 575 1586 1030 721 1183 1570 6665
• To recover the plaintext we use
• 1289-1 317
• So 3196665 1643 mod 2003
• Knowing the superincreasing sequence we recover x
  101100111

6
Digital Signatures

• The private-key signs (create) signatures, and
  the public-key verifies signatures
• Only the owner can create the digital signature,
  hence it can be used to verify who created a
  message
• Generally don't sign the whole message (doubling
  the size of information exchanged), but just a
  digest or hash of the message,

7
Digital Signatures

• A hash function takes the message, and produces a
  fixed size (typically 64 to 512 bits) value
  dependent on the message
• It must be hard to create another message with
  the same hash value (otherwise some forgeries are
  possible)
• Developing good hash functions is another
  non-trivial problem

8
Message Authentication

• Message authentication is concerned with
• protecting the integrity of a message
• validating identity of originator
• non-repudiation of origin (dispute resolution)
• Electronic equivalent of a signature on a message

• An authenticator, signature, or message
  authentication code (MAC) is sent along with the
  message

9
Message Authentication

• The MAC is generated via some algorithm which
  depends on known only to the sender and receiver
• The message may be both the message and some
  (public or private) key of any length
• The MAC may be of any length, but more often is
  some fixed size, requiring the use of some hash
  function to condense the message to the required
  size if this is not achieved by the
  authentication scheme
• Need to consider replay problems with message and
  MAC
• require a message sequence number, timestamp or
  negotiated random values

10
Authentication using Private-key Ciphers

• If a message is being encrypted using a session
  key known only to the sender and receiver, then
  the message may also be authenticated
• Since only sender or receiver could have created
  it
• Any interference will corrupt the message
  (provided it includes sufficient redundancy to
  detect change)
• This does not provide non-repudiation since it is
  impossible to prove who created the message

11
Authentication using Private-key Ciphers

• Message authentication may also be done using the
  standard modes of use of a block cipher
• Sometimes do not want to send encrypted messages
• Can use either CBC or CFB modes and send final
  block, since this will depend on all previous
  bits of the message
• No hash function is required, since this method
  accepts arbitrary length input and produces a
  fixed output
• Usually use a fixed known IV
• This is the approached used in Australian EFT
  standards AS8205
• Major disadvantage is small size of resulting MAC
  since 64-bits is probably too small

12
Hashing Functions

• Hashing functions are used to condense an
  arbitrary length message to a fixed size, usually
  for subsequent signature by a digital signature
  algorithm
• Good cryptographic hash function h should have
  the following properties
• h should destroy all homomorphic structures in
  the underlying public key cryptosystem (be unable
  to compute hash value of 2 messages combined
  given their individual hash values)

13
Hashing Functions

• Properties
• h should be computed on the entire message
• h should be a one-way function so that messages
  are not disclosed by their signatures
• It should be computationally infeasible given a
  message and its hash value to compute another
  message with the same hash value
• Should resist birthday attacks (finding any 2
  messages with the same hash value, perhaps by
  iterating through minor permutations of 2
  messages)

14
SHA (Secure Hash Algorithm)

• SHA was designed by NIST NSA and is the US
  federal standard for use with Secure Hash
  Algorithm) the DSA signature scheme
• the algorithm is SHA, the standard is SHS
• It produces 160-bit hash values

15
SHA (Secure Hash Algorithm)

• SHA overview
• Pad message, liker in MD5, so its length is a
  multiple of 512 bits
• Initialize a 5-word (160-bit) buffer
• A 67452301, B efcdab89, C 98badcfe, D
  10325476, Ec3d2e1f0
• Process the message in 16-word (512-bit) chunks,
  using 4 rounds of 20 bit operations each on the
  chunk buffer
• Output hash value is the final buffer value

16
DSA (Digital Signature Algorithm)

• DSA is a variant on the ElGamal and Schnorr
  algorithms
• Description of DSA
• p of length 2L is a prime number, where L 512 to
  1024 bits and is a multiple of 64
• q is a 160 bit prime factor of p-1
• g h(p-1)/q where h is any number less than p-1
  with h(p-1)/q(mod p) gt 1
• x is a number less than q (private key)
• y gx(mod p)

17
DSA (Digital Signature Algorithm)

• Description of DSA
• To sign a message M
• generate random k, kltq
• compute
• r (gk(mod p))(mod q)
• s k-1.SHA(M) x.r (mod q)
• the signature is (r,s)
• To verify a signature
• w s-1(mod q)
• u1 (SHA(M).w)(mod q)
• u2 r.w(mod q)
• v (gu1.yu2(mod p))(mod q)
• if vr then the signature is verified

18
DSA (Digital Signature Algorithm)

• Comments on DSA
• was originally a suggestion to use a common
  modulus, this would make a tempting target,
  discouraged
• it is possible to do both ElGamal and RSA
  encryption using DSA routines, this was probably
  not intended -)
• DSA is patented with royalty free use, but this
  patent has been contested, situation unclear
• Gus Simmons has found a subliminal channel in
  DSA, could be used to leak the private key from a
  library - make sure you trust your library
  implementer

19
Elliptic Curve Cryptography

• Elliptic Curve over K is the set of points (x,y),
  with x, y ? K, which satisfy
• y2 x3 ax b, together with the point at
  infinity O, if characteristic of K gt 3 and x3
  ax b has no multiple roots
• If the characteristic of K is 2, than the
  elliptic curve is
• y2 cy x3 ax b (1)
• y2 xy x3 ax2 b (2), where we dont care
  about multiple roots

20
Elliptic Curve Cryptography

• The analogy of multiplying two elements in Fq is
  adding two points in E
• So the analogy of raising an element to power k
  is multiplying a point by k
• Raising to power k can be accomplished in O(log k
  log3q) bit operations
• Multiplying a point by k can be accomplished in
  O(log k log3q)

21
Elliptic Curve Cryptography

• The discrete log problem in elliptic curve is the
  problem of given P and B find an x such as P
  xB
• There is a way to reduce the log problem over
  elliptic curve to the log problem over Fqk
• The reduction only works for some special curves
  that are called supersingular
• Why do you care about this?

22
Diffie Hellman over ECC

• Alice and Bob chose a finite field Fq and an
  elliptic curve E
• The key will be taken from a random point P over
  the elliptic curve (e.g. the x coordinate)
• Alice and Bob choose a point B that does not need
  to be secret
• B must have a very large order!

23
Diffie Hellman over ECC

• Alice chooses a random a and compute aB ? E
• Bob chooses a random b and compute bB ? E
• Alice and Bob exchange the computed values
• Alice, from bB and a can compute P abB
• Bob, from aB and b can compute P abB

24
Elliptic Curve Digital Signature

• Chose a finite field Fp, an elliptic curve E, and
  a point B ? E
• Select a random value d and calculate Q dB.
  Make Q public
• To sign a message choose a random k and compute
  kP (x, y), and r x mod n (r?0)
• Compute k-1 mod n, and s k-1 (H(m) dr) mod n
  (s?0)
• The signature will be the pair (r, s)

25
Elliptic Curve Digital Signature

• To verify a signature
• Compute c s-1 mod n and H(m)
• Compute u1 H(m)c mod n
• Compute u2 rc mod n
• Compute u1B u2Q (x, y), and v x mod n
• The signature is verified if v r

26
Choice of Curve and Point

• Random selection
• Select a random x, y, a
• Verify that the curve with those elements has the
  cubic x3 ax b with no multiple roots
  (characteristic gt 3)
• Set B (x, y)
• There are methods that you can use to find the
  number of elements of the curve N
• In order top be confident on the security of your
  curve you want N having large prime factors

27
Choice of Curve and Point

• If N is a product of small primes we can solve
  the log problem using Pohlig-Silver-Hellman
  method.
• You can also start from a particular curve and
  reduce module p
• The curve should have a point of infinite order
• In fact, for DH and El Gamal, B needs only to
  have a large order
• If N is a prime than any B ? 0 will be a generator

28
Pseudo-Random Generators

• Many cryptographic algorithms require random
  numbers
• Either you use a source of randomness (very
  difficulty) or you use a pseudo-random number
  generators
• Pseudo-random numbers have been a source of
  weaknesses for a long time
• An analysis
• J. Kelsey, B. Schneier, D. Wagner, and C. Hall,
  Cryptanalytic Attacks on Pseudorandom Number
  Generators, Fast Software Encryption, Fifth
  International Workshop Proceedings (March 1998),
  Springer-Verlag, 1998, pp. 168-188.

29
PKI

• Risks
• Who do we trust, and for what?
• Who is using my key?
• How secure is the verifying computer?
• Which John Robinson is he?
• Is the CA an authority?
• Is the user part of the security design?

30
PKI

• Risks
• Was it one CA or a CA plus a Registration
  Authority?
• How did the CA identify the certificate holder?
• How secure are the certificate practices?
• Why are we using the CA process, anyway?

31
PGP

• How PGP works

32
PGP Web of Trust

• In pgp any user can act as a certifying authority
• However the certificate is only valid if the
  receiving party recognize the validator as a
  trusted introducer
• Stored on each user's public keyring are
  indicators of
• whether or not the user considers a particular
  key to be valid
• the level of trust the user places on the key
  that the key's owner can serve as certifier of
  others' keys

33
PGP Web of Trust

• Levels of trust
• Implicit (I believe in myself)
• Others
• Complete
• Marginal
• Notrust
• Validity
• Valid
• Marginally valid
• Invalid

34
Certificate Revocation

• Revocation is important
• User stop playing the role that is specified in
  the certificate
• Belief that certificate was compromised
• Pgp certificates can be revoked by
• Owner
• Someone that the owner designates as a revoker

35
TLS Handshake protocol

• Client
  Server
• ClientHello --------gt
•
  ServerHello
•
  Certificate
•
  ServerKeyExchange
•
  CertificateRequest
• lt--------
  ServerHelloDone
• Certificate
• ClientKeyExchange
• CertificateVerify
• ChangeCipherSpec
• Finished --------gt
•
  ChangeCipherSpec
• lt--------
  Finished
• Application Data lt-------gt
  Application Data

36
TLS Record Protocol

• The Record Protocol takes messages to be
  transmitted, fragments the data into manageable
  blocks, optionally compresses the data, applies a
  MAC, encrypts, and transmits the result.
• Uses read and write parameters defined as client
  or server write

37
SET

• Acquirer gateway is an Internet interface to the
  established credit card authorization system and
  cardholder/merchant banks

38
SET Advantages

• SET will enable e-commerce, eliminate world
  hunger, and close the ozone hole
• SET prevents fraud in card not present
  transactions
• SET eliminates the need for a middleman (the
  banks love this)
• SET leverages the existing infrastructure

39
SET (problems)

• SET is the most complex (published) crypto
  protocol ever designed
• gt 3000 lines of ASN.1 specification
• 28-stage (!) transaction process
• The SET reference implementation will be
  available by mid 1996
• SET 1.0 " " " mid 1997
• SET 2.0 " " " mid 1998
• Interoperability across different implementations
  is a problem
• SET is awfully slow (6 RSA operations per
  transaction)
• Great for crypto hardware accelerator
  manufacturers
• For comparison, VISA interchange gateway
  currently has to handle 2000 pure DES-based
  transactions/second

40
SET (problems)

• Although SET was specifically designed for
  exportability, you could not export the reference
  implementation for long time
• SET requires
• Custom wallet software on the cardholders PC
• Custom merchant software
• Special transaction processing software (and
  hardware) at the acquirer gateway.

41
MS PPTP

• LAN Manager Hash
• Turn the password into a 14-character string,
  either by truncating longer passwords or padding
  shorter passwords with nulls.
• Convert all lowercase characters to uppercase.
  Numbers and non-alphanumerics remain unaffected.
• Split the 14-byte string into two seven-byte
  halves.
• Using each seven-byte string as a DES key,
  encrypt a fixed constant with each key, yielding
  two 8-byte encrypted strings.
• Concatenate the two strings together to create a
  single 16-byte hash value.

42
Content Scrambling System
43
WEP

• Problems
• K is 40 bits long
• Some version use a 104 bits version
• The IV is 24 bits long
• Lots of possibilities for collisions or replay
• Decryption of frames is possible comparing
  against known plaintext
• You can force the base station to decrypt a
  message
