Title: Instrumentation for Fast Hybrid Testing at CU NEES


1

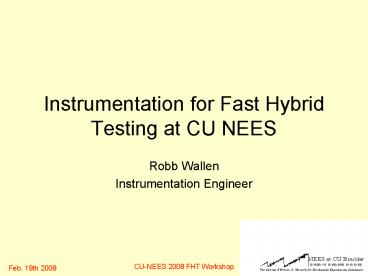

Instrumentation for Fast Hybrid Testing at CU NEES
  • Robb Wallen
  • Instrumentation Engineer

2
Data Sources
SCRAMNet Deterministic Optical Network (14)
Gigabit Ethernet LAN (2 x Cisco 3550 Switches)
(13)
Data Sources
Neespop.Colorado.Edu Remote Collaboration Host (1)
NI Supplementary Data Acquisition and Control
System (11)
Real-time Computation Target (OpenSEES/ETS or
Simulink) (5)
Test Specimen (12)
A/Ds
Neestp.Colorado.Edu Telepresence Portal
and Robotic Camera Control (2)
Realtime Simulation Target (Simulink) (6)
D/As
FPGA
Additional Computation Resources (7)
Videoconference / Telepresence Hardware (3)
MTS Digital Control System (9)
A/Ds
High-speed Actuators (10)
Neesdaq.Colorado.Edu Data Turbine Server Local
Data Repository (4)
Real-time Hosts (8)
Valve Drivers
Video/Still Image Sources (13)
3
Network Infrastructure
  • Two Networks
  • Gigabit Ethernet for non deterministic
    applications
  • Shared Common Random Access Memory Network
    (SCRAMnet) for deterministic applications
  • Low latency (sub micro second)
  • Reflective memory (low host overhead)
  • Supports synchronization through network
    interrupts

4
MTS Digital Control and Data Acquisition System
  • Integrated 48 channel data acquisition for
    conventional transducers (LVDTs, strain gages,
    accelerometers, etc)
  • Controls the three high performance
    servo-hydraulic actuators
  • Accepts commands from, and writes acquired data
    to SCRAMNet
  • Synchronizes hosts on SCRAMNet by generating a
    network interrupt every millisecond

5
MTS Channels
  • Six channels for each actuator (Command,
    Displacement, Force, Delta P, Valve Command,
    Valve Position)
  • 26 Channels with Digital Universal Conditioners
    (DUCs) used for strain, voltage inputs
  • 10 LVDT inputs (4 x 0.5 in, 4 x 1.0 in, 2 x 3.0
    in)
  • Three accelerometer channels (- 8g)
  • Three linear encoder channels
  • All data is digitally down sampled and anti-alias
    filtered
  • Sampling rates up 1024 Hz with 16 bit resolution

6
MTS Transducers
LVDTs
Linear Encoders
Accelerometers
7
National Instruments
  • PXI/SCXI based data acquisition system

National Instruments PXI Chassis/Controller
FPGA
D/As
SCRAMNet Network
A/Ds
SCRAMNet
Test Specimen
SCXI Modular Signal Conditioner
LVDT Cond 1
LVDT Cond 2
Strain Cond 1
Strain Cond 2
8
National Instruments
  • PXI Equipment
  • 2.4 GHz Embedded Controller running LabVIEW
    Real-Time or WinXP
  • SCRAMNet Interface Card
  • 3 Million Gate / 40 MHz. Field Programmable Gate
    Array Card with 16 bit Analog IO and Digital IO
  • 300 K Sample/Sec. Multifunction IO Card
  • 40 unconditioned analog IO channels, 112 digital
    IO channels
  • SCXI Equipment
  • Two Eight Channel AC LVDT Conditioners
  • Two Eight Channel Universal Strain Conditioners
    with Programmable Excitation, Gain, and Filters
  • Currently configured for 32 channels of
    conditioned analog input, can be expanded to 96
    channels if necessary

9
NI PXI System Special Features
  • Flexible, modular instrument and signal
    conditioning architecture
  • Real time operating system for deterministic
    program execution (LabVIEW RT)
  • FPGA Hardware-In-The-Loop card translates
    LabVIEW software into hardware for parallelized
    operation at 40 MHz.

10
NI PXI/SCXI Applications
  • Hybrid Data Acquisition System
  • Records data from variety of sources
  • MTS controller channels
  • Numerical model real time data recorder channels
  • Onboard data acquisition channels
  • Anything else connected to SCRAMNet
  • Synchronizes all data with MTS generated SCRAMNet
    interrupt
  • Capable of capturing over 500 channels at 1024
    Hz.
  • Supplementary Control System
  • Route SCRAMNet memory values to analog and
    digital outputs
  • FPGA card for special control needs
  • Desktop Hybrid system development platform
  • Robotic PTZ Video Cameras

11
VIC 2D Image Correlation System
  • Uses image correlation algorithms to provide
    full-field non-contact displacement and strain
    data for planar specimens
  • Up to 30 frames/second at 1024x768 pixels
  • Strain and displacement resolution determined by
    distance from specimen and lens configuration,
    down to 1/20 pixel
  • Supports virtual strain gages and extensometers
  • Captured image data is synchronized with analog
    or digital input signals
  • Acquired data is currently not available for
    real-time viewing

12
  • Thank You!
  • Questions?
