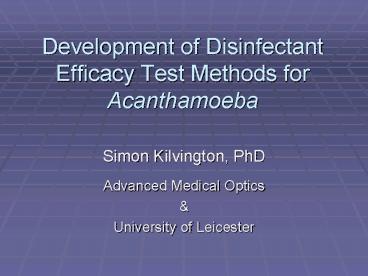

Development of Disinfectant Efficacy Test Methods for Acanthamoeba

1
Development of Disinfectant Efficacy Test Methods
for Acanthamoeba

• Simon Kilvington, PhD
• Advanced Medical Optics
• University of Leicester

2
Acanthamoeba
Cyst
Trophozoite

• Feeding dividing
• Asexual
• Cyst forming

• Response to adversity
• Dormant, resistant
• Double-walled with pores

3
Need for standardisation of Acanthamoeba efficacy
testing

• Look to ISO 147292001 (bacteria and fungi)
• Test strain
• Method of culture and storage
• Assay method
• Presentation of results
• All apply equally to Acanthamoeba disinfectant
  testing

4
Method 1 Qualitative 50 Challenge Inoculum

• 5 ml of test solution (x3 neutraliser control)
• Add 50 Acanthamoeba (50 µl)
• Incubate room temperature for 6 hr
• Neutralise (5 ml tween-lecithin E. coli)
• Centrifuge 1000 x g 10 min
• Culture pellet in well of NNA plate
• Incubate 28-32ºC 14 days

BD Falcon
5
Method 1 50 Challenge Inoculum
3 days
5 days
7 days
6
Method 1 Results
survival and growth of Acanthamoeba -
kill of Acanthamoeba NC disinfectant
neutraliser control
7
Method 1

• Pros
• Relatively simple to perform
• Good for rapid screening for disinfectant and
  drug discovery
• Can assess experimental variables species or
  strain, inoculum size, exposure time, presence of
  contact lens, organic soil, etc.
• Cons
• Only qualitative, testing total kill (50 org or
  1.7 log)
• Does not measure rate of kill

8
Method 2 QuantitativeTime Kill Assay

• 5 ml solution (x3 with neutraliser control)
  challenged to give 5 x104 /ml trophozoites or
  cysts
• Aliquots removed at 0, 1, 2, 4, 6 24 hr
• Neutralised and serial 10-fold dilutions made
  across rows of 96 well microtitre plate
• Live E. coli added and plates incubated 32ºC 14
  days
• Presence or absence of growth recorded and rate
  of kill or survival determined by Most Probable
  Number method using Spearman-Karber computation

9
Acanthamoeba Challenge Testing
3
2
1
Neutralise titrate

• T0 T24 neutralise 10-fold dilutions in ¼
  Ringers (1000 1)
• Add E. coli
• Incubate record excystment / trophozoite
  replication
• Spearman-Karber computation
• Delta-log plot

Acanthamoeba
Test solution
180 µl tween-lecethin neutraliser in outer rows
and ¼ Ringers in rest Take 4 x 20 µl of sample,
add to neutraliser row and then serial dilutions
10
Acanthamoeba Challenge Testing
11
A. castellanii (50370) Trophozoites
12
Efficacy of Contact Lens Disinfectants Against A.
castellanii (50370) Trophozoites (6 hr)
13
Trophozoite Strain (2000-2008)
14
Effect of culture medium on trophozoite kill (6
hr)
15
Cyst Testing

• Results dependent on strain and method of cyst
  production
• NNA-E. coli (poor yield, co-contamination with
  bacterium and clumping)
• NNA-Taurine (poor yield and significant clumping)
• Starvation in axenic medium (mixture of trophs,
  immature and mature cysts)
• Axenic medium with Mg2 (high yield but mixture
  and increased susceptibility to some MPS)
• Neffs constant pH encystment medium (high yield,
  gt99 mature form but increased susceptibility
  to some MPS?)

16
Encystment Method
17
A. castellanii (50370) Neff Cysts
18
Method 2

• Pros
• Reliable and reproducible determination of
  Acanthamoeba trophozoite and cyst disinfection
  rate and extent
• Cons
• Although relatively simple to perform, requires a
  level of expertise and understanding beyond that
  of bacterial or fungal testing
• Requires large numbers of axenic trophozoites and
  cysts
• Results may be dependent on method used to
  produce cysts

19
Acanthamoeba Regimen Testing

• Criteria as per ISO 147292001 for bacteria and
  fungi
• Inoculate Acanthamoeba (105) on to contact lens
• Regimen rub rinse, no rub but rinse or no
  rub or rinse (all with soaking step)
• Quantify remaining organism on lens and in
  soaking solution
• Expectation that Acanthamoeba trophozoites or
  cysts will be removed following manufacturers
  recommended regimen protocols

Kilvington, S. Lonnen, J. (2009). A Comparison
of Regimen Methods for the Removal and
Inactivation of Bacteria, Fungi and Acanthamoeba
from Two Types of Silicone Hydrogel Lenses.
Contact Lens Anterior Eye (in press).
20
Recommendations Trophozoites

• Need for standardisation of Acanthamoeba
  disinfectant testing and should focus on
  trophozoites
• Two methods are presented that enable the
  efficacy of contact lens care solutions to be
  assessed uniformly
• Use A. castellanii ATCC 50370 (human eye
  infection, New York, NY, 1978 ) as reference
  strain
• Culture using Ac6 medium to log phase (75
  confluence in flask)
• Standardise tubes used for testing

21
Recommendations Cysts

• Need for more work to achieve standardisation of
  Acanthamoeba cyst disinfectant testing
• Two methods presented that enable cysticidal
  efficacy of contact lens care solutions to be
  assessed
• Use A. castellanii (ATCC 50370) as reference
  strain
• Prepare cysts using Neffs Encystment Medium from
  late log phase trophozoites grown in Ac6 medium
• Need for an improved liquid encystment medium
  producing cysts with resistance comparable to
  those from NNA-E. coli or NNA-Taurine methods

22
Conclusion

• Many contact lens disinfectant solutions on the
  market are not effective against Acanthamoeba
• No evidence to indicate this is a risk factor for
  acanthamoeba keratitis
• However, Industry should develop new solutions
  with efficacy against Acanthamoeba
• This will require standardised assay methods

23
Recommendations

• Need for more work to achieve standardisation of
  Acanthamoeba disinfectant testing
• Work together towards developing standards
  acceptable to the Industry
• Establish workshops and reference centres for
  assay development and training
• e.g. University of Leicester (Simon Kilvington
  sk46_at_le.ac.uk or James Lonnen jdl3_at_le.ac.uk)
• Undertake quality assurance testing (similar to
  CLI Ring Test undertaken for bacteria and fungi)

24
Acanthamoeba Physiological Response to Contact
Lens Solutions
Encystment
Aggregation
Multipurpose solution induced encystment and
aggregation of Acanthamoeba trophozoites
25
Acknowledgements

• James Lonnen and Wayne Heaselgrave, University of
  Leicester, England
• John Lally and colleagues at Advanced Medical
  Optics, CA, USA
• The contact lens care industry that has supported
  my research over the years
