Transcript and Presenter's Notes

Title: Flight Simulation ClientServer

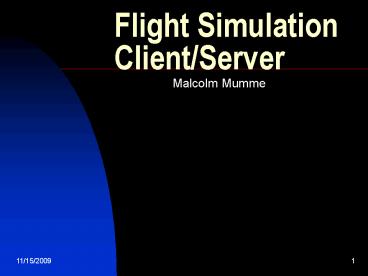

1
Flight Simulation Client/Server
  • Malcolm Mumme

2
Introduction
  • Using Java features to program Client/Server
    applications
  • Threads, Sockets, inheritance, c.
  • (all page number references are to the textbook)

3
Topics of Discussion
  • Java Threads and Strand Threads
  • Socket input buffering with ReEnumerator
  • Simulation state updates with Entity and
    SimMonitorMessage
  • Output Synchronization
  • Managing clients in SimEngine
  • Display updates using SimulationClient and
    Radar/WinDisplay

4
Java Threads and Strand Threads
  • Text implies that Threads may outlive the objects
    that contain them. (p. 842)
  • This is not consistent with the usual approach to
    objects
  • Define Strand class as a more OO Thread
  • Strand interface similar to Thread
  • new Strand( (Runnable)this )
  • Strand will automatically start the thread at
    construction and stop the thread upon
    finalization (p. 472)

5
Java Threads and Strand Threads
  • A classs finalizers can be overriden by
    subclasses, parent finalizers are not
    automaticaly called as with constructors(p. 516)
  • Avoid this problem by using a helper final class
    StrandThreadContainer whos finalize() method
    stop()s the Thread.

6
Socket input buffering with ReEnumerator
  • Why Socket input buffering?
  • A multi-user server must not be forced to wait on
    an individual Socket
  • An Enumeration(p. 769) is a convenient way to
    package a sequence of messages
  • A ReEnumerator packages a sequence of Enumerations

7
Socket input buffering with ReEnumerator
A Server
Client1
in
in Stream
Socket
Socket
out Stream
out
Client2
in
Socket
in
Socket
out
out
  • A multi-user server must not be forced to wait on
    an individual Socket

8
Socket input buffering with ReEnumerator
A Server
Client1
in
in Stream
Socket
Socket
out Stream
out
Client2
in
Socket
in
Socket
out
out
  • A multi-user server must not be forced to wait on
    an individual Socket

9
Socket input buffering with ReEnumerator
An Enumeration
an Object
nextElement()
an Object
an Object
hasMoreElements()
an boolean
  • An Enumeration(p. 769) is a convenient way to
    package a sequence of messages

10
Socket input buffering with ReEnumerator
  • A ReEnumerator contains a Strand Thread which
    keeps the main thread from having to wait on a
    Stream
  • nextElement() returns an Enumeration
  • That Enumeration supplies those messages that
    have already been buffered.
  • MessageEnumeration is an extended Enumeration
    interface for this program that has a method
    nextSimMonitorMessage()

11
Socket input buffering with ReEnumerator
A ReEnumerator buffer
an Enumeration
nextElement()
an Enumeration
an Enumeration
buffering Strand
a boolean
hasMoreElements()
  • A ReEnumerator packages a sequence of Enumerations

12
Socket input buffering with ReEnumerator
  • A MessageEnumerator wraps(p. 725) an input Stream
    with a MessageEnumeration
  • MessageReEnumerator is a special ReEnumerator
    that works with a MessageEnumeration
  • new MessageReEnumerator( new
    MessageEnumerator( in ) ) wraps and buffers the
    stream

13
Simulation state updates with Entity and
SimMonitorMessage
  • Each simulated thing has a corresponding Entity
    Object in the SimEngine
  • Each Entity contains several simulation
    parameters relating to it( position, velocity,
    orientation, shape, color, name,spin rate c. )
  • An Entity can step() itself forward in time to do
    its part of the simulation

14
Simulation state updates with Entity and
SimMonitorMessage
  • A SimMonitorMessage communicates partial update
    information about an Entity and can
    update(Entity)
  • There is a subclass of SimMonitorMessage for each
    parameter in an Entity
  • A SimMonitorMessage can be read from a
    DataInputStream and can update an Entity
  • A SimMonitorMessage can be constructed from an
    Entity and can write itself to a DataOutputStream

15
Output Synchronization
  • A SimMonitorMessage writes itself to a
    DataOutputStream in many little pieces.
  • There is more that one Strand(Thread) in the
    SimulationServer in which this may occurr.
  • This must always be done with synchronized
    methods(p. 851)
  • public synchronized static void sendAllMessages(
    )
  • public synchronized static void
    sendUserControlMessages()

16
Output Synchronization
In Thread A, SimMonitorMessage X writes itself to
out
OutputDataStream out
In Thread B, SimMonitorMessage Y writes itself to
out
X0 X1 X2 Y0 X3 Y1 X4 X5
  • in many little pieces. There is more that one
    Strand in which this may occurr.

17
Managing clients in SimEngine
  • The SimEngine starts running a simulation Strand
    at construction
  • The SimulationServer Object adds clients to the
    SimEngine by invoking the addMember(Socket)
    method
  • Clients may leave at any time on request or by
    just aborting and causing an IOException on a
    Socket
  • The SimulationServer may destroy the SimEngine at
    any time in response to the Quit button

18
Managing clients in SimEngine
  • When the SimulationServer Object adds clients to
    the SimEngine by invoking the addMember(Socket)
    method,
  • A new simulation Entity corresponding to the
    client must be created and initialized
  • All existing clients must be updated adding the
    new Entity
  • The new client must be informed of its
    corresponding Entity
  • The new client must be downloaded with the entire
    simulation state

19
Managing clients in SimEngine
  • A client may quit at any time.
  • The SimEngine may be informed of this by
  • 1 a request from the client
  • 2 an IOException on that clients Socket
  • The corresponding Entity must be removed, and all
    remaining clients must be then informed of that.
  • When the client requests to quit, the SimEngine
    also informs the same client (as well as all the
    remaining clients) of its Entity being removed

20
Managing clients in SimEngine
  • The SimulationServer may destroy the SimEngine at
    any time in response to the Quit button A
    client may quit at any time.
  • The SimEngine has a finalize() method which does
    the following
  • Each Entity must be removed and each
    corresponding client must be then informed of
    that.

21
Display updates using SimulationClient and
Radar/WinDisplay
  • A SimulationClient connects to the
    SimulationServer with a Socket in the usual
    way(p. 862)
  • The simulation state is duplicated on each client
    using the same class Entity used on the server
  • The SimMonitorMessage class is used for all
    messages both from and to the SimulationClient

22
Display updates using SimulationClient and
Radar/WinDisplay
  • A SimulationClient must receive all messages from
    the SimulationServer
  • It must create an Entity Object when informed of
    its existence
  • It must update the corresponding Entity when it
    receives a SimMonitorMessage from the
    SimulationServer
  • It must remove an Entity for which it receives a
    Quit message

23
Display updates using SimulationClient and
Radar/WinDisplay
  • A SimulationClient must remember to which Entity
    it corresponds
  • It must render visual images from the point of
    view of its corresponding Entity
  • It must update its Entity and the
    SimulationServer whenever the user changes a
    control on the Applet Window
  • It must quit when its Entity is removed by the
    SimulationServer

24
Display updates using SimulationClient and
Radar/WinDisplay
  • A SimulationClient display images are rendered in
    the WinDisplay Applet that maintains the primary
    display area(by means of the renderAll() method).
  • Within renderAll ,a polygonal model is extracted
    from each Entity
  • The light on each polygon is adjusted according
    to its orientation.
  • Each polygonal model is geometricaly manipulated
    to its relative orientation and location as it
    should appear on the display.

25
Display updates using SimulationClient and
Radar/WinDisplay
  • A shadow polygon at altitude 0 is created in
    some cases.
  • Each polygonal model is clipped to remove parts
    that would not be visible within the display
    window
  • After all polygonal models are geometricaly
    processed, they are reordered to approximate a
    visibility algorithm.
  • All polygons are then rendered to a clean Image
    using the fillPolygon method, which is then
    copied to the window by drawImage to minimize
    flicker.

26
Potential improvements
  • Add a dialog to the client for obtaining the
    Server host name
  • Get some better scenery
  • Correct the visibility algorithm
  • Add realistic flight dynamics
  • Improve the appearance of planes

27
What This Means
  • With Sockets and Threads, you can do fun stuff
