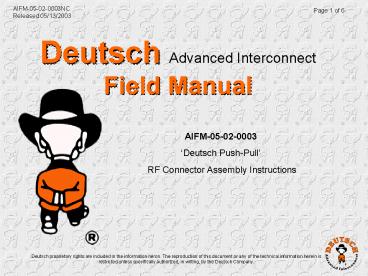

Deutsch Advanced Interconnect Field Manual

1
Deutsch Advanced InterconnectField Manual
AIFM-05-02-0003 Deutsch Push-Pull RF Connector
Assembly Instructions
2
RF Cable Preparation Steps

• Slide Crimp Ferrule over cable prior to
  stripping. Strip Cable Outer Jacket and Braided
  Shield from Dielectric. (Be careful not to cut
  into dielectric).
• Strip Dielectric from Conductor.
• Strip Outer Jacket from Braided Shield. (Be
  careful not to cut into braid).
• Note All dimensions are /- .010.

Straight Connector
Right Angle Connector
1.030
.725
Step 1
Step 1
.220
.125
Step 2
Step 2
.325
.325
Step 3
Step 3
3
RF Cable Termination
Straight Connector

• 2. Slide cable into connector until shielding
  covers the crimp shoulder and contact snaps into
  location.

• 1. Slide contact on conductor until it butts up
  against cable dielectric. Crimp or solder (60-40
  Rosin core) contact to conductor. (See Table 1,
  for crimp tool information).

• 3. Slide crimp ferrule over braid and against
  the connector body. Crimp the ferrule.

Conductor should be visible through inspection
hole.
4
Right Angle Connector Termination
2. Solder conductor to contact.

• 1. Slide cable into connector until conductor
  is seated across top of contact and shielding
  covers the crimp shoulder.

3. Install Screw Cap.
Trim all loose strands prior to crimping.
4. Crimp ferrule flush with connector housing.
Do not allow any braided shield between connector
housing and crimp ferrule.
5
For further assistance

• Contact

DEUTSCH Advanced Interconnect 5733 West Whittier
Avenue Hemet California 92545 Phone 909
791-2600 Fax [phone]
6
Release and Revision History
