RIS 2004: Data Analysis and Visualization (DAV)

1

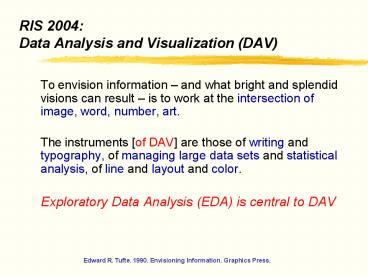

RIS 2004 Data Analysis and Visualization (DAV)

• To envision information and what bright and
  splendid visions can result is to work at the
  intersection of image, word, number, art.
• The instruments of DAV are those of writing
  and typography, of managing large data sets and
  statistical analysis, of line and layout and
  color.
• Exploratory Data Analysis (EDA) is central to DAV

Edward R. Tufte. 1990. Envisioning Information.
Graphics Press.
2
Exploratory Data Analysis (EDA)

• EDA is
• a state of mind
• a way to think about DAV
• a way of doing DAV
• Underlying assumption of EDA
• the more one knows about the data, the more
  effectively the data can be used to develop,
  test, and refine theory.

Hartwig, F. B. E. Dearing. 1975. Exploratory
Data Analysis. Sage Publications, Inc.
3
Exploratory Data Analysis (EDA)

• EDA is a process
• the breakdown of data into its important
  components
• not the analysis of data by means of statistics
  alone (i.e., by numerical summaries alone to the
  exclusion of other methods).
• EDA is not just statistical analysis

Hartwig, F. B. E. Dearing. 1975. Exploratory
Data Analysis. Sage Publications, Inc.
4
EDA and Statistics

• Consequences of considering EDA Statistics
• The importance of visual displays of data is
  downgraded.
• Statistics becomes more important than the
  graphical representation of the data.
• Statistical analysis is Confirmatory (rather than
  Exploratory).
• statistics usually only considers two
  alternatives (i.e., Ho and Ha)
• Statistical analysis lacks the openness required
  of EDA

Hartwig, F. B.E Dearing. 1975. Exploratory Data
Analysis. Sage Publications, Inc.
5
Exploratory Data Analysis.
EDA seeks to maximize what can be learned from
the data

• EDA adheres to 2 basic principles
• Skepticism
• One should be skeptical of measures that
  summarize data because they can sometimes conceal
  or misrepresent information.
• Openness
• One should be open to unanticipated patterns in
  the data because these patterns can be the most
  revealing outcomes of the analysis.

Hartwig, F. B. E. Dearing. 1975. Exploratory
Data Analysis. Sage Publications, Inc.
6
EDA Summary

• When applied to data analysis, the skepticism and
  openness principles of EDA imply a flexible,
  data-centered approach which is open to
  alternative models of relationships and
  alternative scales for expressing variables and
  which emphasizes visual representation of the
  data.

Hartwig, F. B. E. Dearing. 1975. Exploratory
Data Analysis. Sage Publications, Inc.
7
EDA Principle 1
Skepticism One should be skeptical of measures
that summarize data because they sometimes can
conceal or misrepresent information.
8
Skepticism An ExampleCarabid Beetle Distribution
Rossi et al. 1992. Geostatistical Tools for
Modeling and Interpreting Ecological Spatial
Dependence. Ecol. Monographs 62 277-314.
9
Summary StatisticsCarabid Beetle Distribution
Rossi et al. 1992. Geostatistical Tools for
Modeling and Interpreting Ecological Spatial
Dependence. Ecol. Monographs 62 277-314.
10
EDA Principle 2
Openness One should be open to
unanticipated patterns in the data because these
patterns can be the most revealing outcomes of
the analysis.
11
Openness An ExampleThe Lorenz Attractor Chaos

• Edward Lorenz attempted to model and forecast
  weather patterns

• Chaos
• Sensitive dependence to initial conditions
• Orderly disorder
• Bounded randomness

Gleick, J. 1987. Chaos Making a New Science.
Penguin Books.
12
The Power of Visual Representation
Because of skepticism for statistical summaries
of data, major emphasis in the EDA is placed on
visual representation (Hartwig Dearing.
1975) Of all the methods for analyzing and
communicating statistical information,
well-designed data graphics (figures, charts,
etc.) are usually the simplest, and at the same
time the most powerful (Tufte 1983).
Hartwig, F. B.E Dearing. 1975. Exploratory Data
Analysis. Sage Publications, Inc. Tufte, E.R.
1983. The Visual Display of Quantitative
Information. Graphics Press.
13
The Power of A Visual DisplayJohn Gotti The
Teflon Don.
14
Gotti Trial The Defenses Chart
15
10 Rules for Drawing Graphs (1975)

• Center the graph on the page.
• Graph axes should be labeled clearly with both
  the variables being measured and the units of
  measurements.
• Axes label should be parallel to the proper axis
  and centered.
• Grid marks should be drawn inside the axes and
  equidistant from each other.
• Assign numerical values to each grid mark.
• Plot data points at appropriate intervals.
• Connect the plot points sequentially (from left
  to right).
• If there are more than 1 dependent variable, draw
  a legend whenever possible in the upper right
  hand corner and within the axes boundaries.
• When you have more than 1 dependent variable,
  assign a distinct geometric form to each of the
  dependent variables.
• There should be no more than one graph on a sheet
  of paper

Katzenberg, A. C. 1975. How to Draw Graphs.
Donnelley Sons, Co.
16
Example Keeping Fit
What does this graph tell you?
17
Additional Rules for Graphical Excellence (1983)

• Induce the reader to think about the substance
  rather than about methodology, graphics design,
  or the technology of graphics production.
• Avoid distorting what the data have to say.
• Present many numbers in a small space.
• Encourage the eye to compare different pieces of
  data.
• Reveal the data at several levels of detail, from
  broad overview to fine structure.
• Graphics must be closely integrated with the
  statistical and verbal descriptions of the data
  set

Tufte, E.R. 1983. The Visual Display of
Quantitative Information. Graphics Press.
18
Classified Satellite ImageImperial Valley, CA
Induce the reader to think about the substance
rather than about methodology, graphics design,
or the technology of graphics production.
19
Diamonds are a girls best friend

• Induce the reader to think about the substance
• Distorting the data (dont insult the reader)
• Graph axis should be labeled clearly
• Grid marks should be drawn inside the axes

The graph is chockablock with cliché and
stereotype, coarse humor, and a content-empty
third dimension. It shows a contempt both for
information and for the audience (Tufte1990)
20
Distorting what the data have to say.
Gee-Whiz Graphics
The graph on the left makes an increase of under
4 look like an increase of gt400
Huff, D. and I. Geis. 1954. How to Lie with
Statistics. W.W. Norton Co., Inc.
21
Another Gee-Whiz Graph
Huff, D. and I. Geis. 1954. How to Lie with
Statistics. W.W. Norton Co., Inc.
22
More Distortions
Monmonier, M. 1996. How to Lie with Maps. Univ.
Of Chicago Press
23
The Lie Factor
Lie Factor 2.8
Tufte, E.R. 1983. The Visual Display of
Quantitative Information. Graphics Press.
24
Graphics must not quote data out of context
Tufte, E.R. 1983. The Visual Display of
Quantitative Information. Graphics Press.
25
Present Many Numbers (pieces of data) in a Small
Space
Wind-Rose Diagrams
A single figure of 4 graphs. a, b, and c show
data on wind directions from 3 weather stations.
Graph d presents the mean of the three stations
(6 10 AM, July 1 1994 to June 30 1995)
26
Playfairs Graph Many pieces of data
Price
Wages
Price
Year
Graph shows 3 parallel time-series (prices,
wages, and the reigns of British kings and
queens)
27
Joseph Minards Napolean March on Russia (1812)
100,000
422,000
10,000
28
Florence Nightingales CoxComb Diagram
Nightingale's Coxcomb (1858) is notable for its
display of frequency by area, like the pie chart.
But, unlike the pie chart, the Coxcomb keeps
angles constant and varies radius
29
Visual Delights
30
Many Pieces of Data..Having fun Maps and
Football
Monmonier, M. 1996. How to Lie with Maps. Univ.
Of Chicago Press
31
Integration of Graphics and Statistical and
Verbal Descriptions of the Data
Objective To determine the relationship between
the density of an insect on basal leaf 3 and the
density on the whole plant in corn
32
Worst Graph Ever?
Five color report, almost happenstance, only five
pieces of data (Tufte 1983).
33
Escaping the Flatland

• Even though we navigate daily through a
  perceptual world of 3 spatial dimensions and
  reason occasionally about higher dimensional
  arenas with mathematical ease, the world
  portrayed on our information displays is caught
  up in the 2 dimensionality of flatlands of paper
  and video screen.

Edward R. Tufte. 1990. Envisioning Information.
Graphics Press.
34
A SolutionVariography Geostatistics and Kriging

• Geostatistics a branch of applied statistics
  that focuses on the detection, modeling, and
  estimation of spatial pattern.
• Kriging an interpolation procedure that provides
  estimates of variables at unsampled locations.
• Tobler's First Law of Geographyeverything is
  related to everything else, but near things are
  more related than distant things.

35
Variography Geostatistics and Kriging.
36
3-D Graphics
