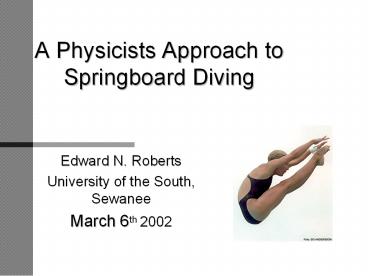

A Physicists Approach to Springboard Diving

1
A Physicists Approach to Springboard Diving

• Edward N. Roberts
• University of the South, Sewanee
• March 6th 2002

2
A Question Posed to Physicists

• Is it possible for a somersaulting springboard
  diver to initiate a twisting motion without any
  torque being applied to their body? That is, can
  a diver begin to twist after having left the
  diving board?

3
Answer

• Yes
• Physics Department at Cornell University
• Interestingly 56 of those asked the question
  answered incorrectly.


Frohlich, Cliff Do springboard divers ...,
Am.J.Phys.47(7), July 1979.
4
Laws of Physics applicable to the sport of Diving

• Center of Mass
• Angular Velocity
• Moments of Inertia
• Principle of Acceleration
• Many more...

5
Laws of Physics applicable to the sport of Diving

• Why even talk about the physics of Diving?

6
Terminology used in Diving

• The Approach
• The Hurdle
• Categories of dives
• Forward
• Back
• Reverse
• Inward
• Twister

7
Terminology used in Diving

• Four positions of dives
• Straight
• Pike
• Tuck
• Free

8
Flight of a Dive

• Rotation around Center of Mass
• Parabolic Flight of Dives
• What can be determined from this?

9
Flight of a Dive

• Equations of Motion

10
(No Transcript)
11
Parabolic flight of a dive
12
Parabolic flight of a dive
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Conservation of Angular Momentum

• Conservation of Angular Momentum Equation

• Angular Velocity Equation is

17
Moments of Inertia

• Moments of Inertia must be determined
• Assumptions
• Rigid Body
• Density Distribution equally
• 14 Separate parts
• Represent simple Geometric shapes

18
Calculation of the Inertia
Thin Rod Cylinder
Sphere
Solid Cylinder
19
Calculation of the Mass Chart
Stanley Plagenhoef, Patterns of Human Motion
(Englewood Cliffs, NJPrentice-Hall, 1971),
chapter 3
20
Calculation of the Mass
21
Calculation of the Inertia

• The Parallel-Axis Theorem
• Relates the moment of inertia about an axis
  through the center of mass of an object to the
  moment of inertia about a second parallel axis.


22
14 Separate parts diagramExample Calculation
23
14 Separate parts diagramExample Calculation
24
Calculation of distance from Axis of Rotation
25
Calculation of distance from Axis of Rotation
26
Videopoint Calculation of ?

• Center of Mass used as the origin
• Plotted the rotation of the head around the
  center of mass

27
Example of Tuck ? calculation
28
Conservation of Angular Momentum
Calculated moment of Inertia for the straight
position I 15.7 kgm2 ? 115 /s
2.01 rad/s L 31.5 kgm2/s

• Calculated moment of Inertia for the tuck
  position

• I 5.30 kgm2 ? 560 /s 9.60 rad/s
  L 50.9 kgm2/s

• 31.5 kgm2/s 50.9 kgm2/s

29
Mechanics of Somersaults

• Angular Velocity
• Throwing of arms
• Leaning
• Equal and opposite forces

30
Mechanics of a Twist

• Three types of Twists
• Torque Twist
• Cat Twists or Zero Angular Momentum Twist
• Torque-free Twist

31
Torque Twist

• The simplest form of a twist
• Equal and opposite force
• Unable to be controlled

32
Cat Twists

• Why does a cat when dropped land on its feet?
• Conservation of Angular Momentum
• How does a cat perform this?
• How a diver can do the same twist.

33
Torque-free Twist

• Type of twist which divers perform
• How a torque-free twist occurs
• Possession of Angular Momentum
• Not on the board and can twist
• Can be controlled

34
Tilt of a Torque-free Twist
35
My Experiments

• Three Camera Angles
• Timing of each camera Angle.

36
Picture of the Overhead Camera
37
Results of Torque-free Twist
38
Torque-free Twist
39
Torque-free Twist
40
My experiments

• Diving Board considered a cantilever
• -lever arm the distance from the fulcrum to the
  end of board

• Setup for how this was done
• Results

41
Lever Arm changing Data
42
Conclusion

• Divers are able to twist without the diving
  board

• Increasing relationship between the Lever Arm and
  height received

• Questions???
