AsahiAmerica Thermoplastic Valves

1

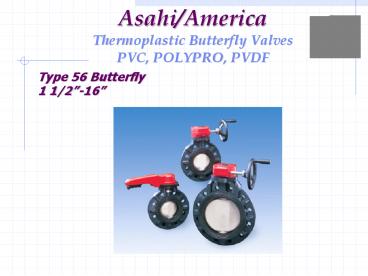

Asahi/AmericaThermoplastic Butterfly Valves
PVC, POLYPRO, PVDF
Type 56 Butterfly 1 1/2-16
2
Asahi/America
Type 56 Butterfly 1 1/2-16
No Stem Modification Required for Actuation
3
Asahi/AmericaType 56 Butterfly Valves
Double o Ring Trunnion Design
4
Asahi/AmericaType 56 Butterfly Valves
All Plastic Handle Position Plate
Modular Gear Operator
ISO Pad
Non Wetted Stem
5
Asahi/AmericaType 56 Butterfly Valve Mounting
Kits
Electric Pneumatic (Sizes 1 ½-6)
Low profile, molded PPG mounting bracket
Support Provision (Vertical Lines)
No stem modification required
Molded ISO Pad
6
Asahi/AmericaType 56 Butterfly Valves

• Standard valve PVC/PP/EPDM
• Several liner disc materials satisfy a variety
  of applications

• Fully engaged stainless steel shaft is isolated
  from media by double o-ring seals on top bottom
  trunnions of disc

• Only disc liner are wetted parts
• Liner design eliminates flange gaskets

7
Asahi/AmericaType 56 Butterfly Valves

• ISO Pad Mount (No drilling required)
• New Stem Design (No modification required for
  Actuation)

• All Plastic Construction Handle
• Locking Provision (Standard)
• 316 SS Stem (Standard) 11/2-12
• New Gear Operators(Sizes 8-16)
• Interchangeability w/Type 75(Face to Face)

8
Asahi/AmericaThermoplastic Butterfly Valves
Type 75 Butterfly 18-24
9
Asahi/AmericaType 75 Butterfly Valves

• Standard valve PP/PP/EPDM
• Several liner disc materials satisfy a variety
  of applications

• Fully engaged stainless steel shaft is isolated
  from media by double o-ring seals on top bottom
  trunnions of disc

• Only disc liner are wetted parts
• Liner design eliminates flange gaskets

10
Asahi/America Type 55 Butterfly Valves
Type 55 Butterfly 2-10
11
Asahi/AmericaType 55 Butterfly Valve-2-5(Lever)
ISO Pad Mount
Locking Provision
All Plastic Handle Position Plate
PTFE Disc Seat
12
Asahi/AmericaType 55 Butterfly Valve-2-10
(Gear)
Modular Gear Operator
ISO Pad Mount
PTFE Disc Seat
13
Asahi/AmericaType 55 Butterfly Valve-2-10
TYPE 55 Sealing Arrangement
14
Asahi/AmericaType 55 Butterfly

• Sizes 2-10
• PTFE Disc Liner
• ISO Pad Mount (No drilling required)
• New Stem Design (No modification required for
  Actuation)

• All Plastic Construction Handle
• Locking Provision (Standard Lever Type)
• New Gear Operators(Sizes2-10)

15
Asahi/AmericaFRP Butterfly Valves
FRP Butterfly 28-60
16
Asahi/AmericaFRP Butterfly Valves

• FRP Body Disc (Derakane 411 by Dow)
• Sizes28-60
• Temp Range-32F -195F
• Pressure Ratings - 32F -140F 105 PSI
• 141F -176F 70 PSI
• 177F -195F 65 PSI
• Manual or Automated Versions

17
Asahi/AmericaFRP Butterfly Valves

• Several liner materials to satisfy a variety of
  applications

• Fully engaged stainless steel shaft is isolated
  from media by double o-ring seals on top bottom
  trunnions of disc

• Only disc liner are wetted parts
• Liner design eliminates flange gaskets

18
Asahi/AmericaLug Style Butterfly Valve
19
Asahi/AmericaButterfly Valve Options
Switches Gear Type Lever Type
Chain Operators
20
Asahi/AmericaButterfly Valve Single Piece
Extensions
A
C
B
Style B
Style B
Style C
21
Asahi/AmericaButterfly Valve Two Piece Extensions
Style A Lever
Style A Gear
22
Asahi/AmericaButterfly Valve Options

• Stems stem extensions available in virtually
  any standard commercial metal

• Lug style bodies
• 2 Square operating nuts
• Interchangeability of parts materials lowers cost
  on specific applications

• Full line of electric pneumatic actuators

23
Asahi/AmericaButterfly Valve Options

• Chain operators
• Locking handles
• Manual limit switches
• Gear operators for 1½ through 6
• Tandem arrangements (patented), available with
  electric, pneumatic or manual operators

24
Asahi/AmericaButterfly Recommendations

• Recommended Applications
• On/Off
• Modulating
• Suspended Particles (Except Type 55)
• High Velocities
• Precautions
• Overtightning Mating Flanges
• Electrically Actuated,Require Mechanical
• Brake or Worm Gear Design
