Title: High-speed TCP connections


1

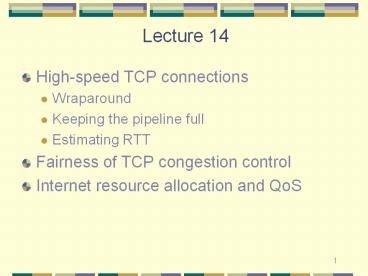

Lecture 14
  • High-speed TCP connections
  • Wraparound
  • Keeping the pipeline full
  • Estimating RTT
  • Fairness of TCP congestion control
  • Internet resource allocation and QoS

2
Protection against wraparound
  • What is wraparound A byte with a sequence number
    x may be sent at one time and then on the same
    connection a byte with the same sequence number x
    may be sent again.
  • Wrap Around controlled by the 32-bit SequenceNum
  • The maximum lifetime of an IP datagram is 120 sec
    thus we need to have a wraparound time at least
    120 sec.
  • For slow links OK but no longer sufficient for
    optical networks.
  • Bandwidth Time Until Wrap Around

Bandwidth T1 (1.5Mbps) Ethernet (10Mbps) T3
(45Mbps) FDDI (100Mbps) STS-3 (155Mbps) STS-12
(622Mbps) STS-24 (1.2Gbps)
Time Until Wrap Around 6.4 hours 57 minutes 13
minutes 6 minutes 4 minutes 55 seconds 28 seconds
3
Keeping the pipe full
  • The SequenceNum, the sequence number space (32
    bits) should be twice as large as the window size
    (16 bits). It is.
  • The window size (the number of bytes in transit)
    is given by the the AdvertisedWindow field (16
    bits).
  • The higher the bandwidth the larger the window
    size to keep the pipe full.
  • Essentially we regard the network as a storage
    system and the amount of data is equal to (
    bandwidth x delay )

4
  • Required window size for a 100 msec RTT.

Bandwidth T1 (1.5Mbps) Ethernet (10Mbps) T3
(45Mbps) FDDI (100Mbps) STS-3 (155Mbps) STS-12
(622Mbps) STS-24 (1.2Gbps)
Delay x Bandwidth Product 18KB 122KB 549KB 1.2MB 1
.8MB 7.4MB 14.8MB
5
Original Algorithm for Adaptive Retransmission
  • Measure SampleRTT for each segment/ACK pair
  • Compute weighted average of RTT
  • EstimatedRTT a x EstimatedRTT (1- a) x
    SampleRTT
  • where 0.8 lt a lt 0.9
  • Set timeout based on EstimatedRTT
  • TimeOut 2 x EstimatedRTT

6
Karn/Partridge Algorithm
  • Do not sample RTT when re-transmitting
  • Double timeout after each retransmission

7
Karn/Partridge Algorithm
8
Jacobson/Karels Algorithm
  • New calculation for average RTT
  • Diff SampleRTT - EstimatedRTT
  • EstimatedRTT EstimatedRTT (d x
  • Deviation Deviation d(Diff- Deviation)
  • where d is a fraction between 0 and 1
  • Consider variance when setting timeout value
  • TimeOut m x EstimatedRTT f x Deviation
  • where m 1 and f 4
  • Notes
  • algorithm only as good as granularity of clock
    (500 microseconds on Unix)
  • accurate timeout mechanism important to
    congestion control (later)

9
Congestion Control Mechanisms
  • The sender must perform retransmissions to
    compensate for lost packets due to buffer
    overflow.
  • Unneeded retransmissions by the sender due to
    large delays causes a router to use link
    bandwidth to forward unneeded copies of a packet.
  • When a packet is dropped along a path the
    capacity used used at each upstream routers to
    forward packets to the point where it was dropped
    was wasted.

10
Delay/Throughput Tradeoffs
11
(No Transcript)
12
Router with infinite buffer capacity
13
Fairness of TCP congestion mechanism
14
Flows and resource allocation
  • Flow sequence of packets with a common
    characteristics
  • A layer-N flow ? the common attribute a layer-N
    attribute
  • All packets exchanged between two hosts ? network
    layer flow
  • All packets exchanged between two processes ?
    transport layer flow

15
(No Transcript)
16
Min-max fair bandwidth allocation
  • Goal fairness in a best-effort network.
  • Consider
  • Unidirectional flows
  • Routers with infinite buffer space
  • Link capacity is the only limiting factor.

17
Algorithm
  • Start with an allocation of zero Mbps for each
    flow.
  • Increment equally the allocation for each flow
    until one of the links of the network becomes
    saturated. Now all the flows passing through the
    saturated link get an equal fraction of the link
    capacity.
  • Increment equally the allocation for each flow
    that does not pass through the first saturated
    link until a second link becomes saturated. Now
    all the flows passing through the saturated link
    get an equal fraction of the link capacity.
  • Continue by incrementing equally the allocations
    of all flows that do not use a saturated link
    until all flows use at least one saturated link.

18
QoS in a datagram network?
  • Buffer acceptance algorithms.
  • Explicit Congestion Notification.
  • Packet Classification.
  • Flow measurements

19
Buffer acceptance algorithms
  • Tail Drop.
  • RED Random Early Detection
  • RIO Random Early Detection with In and Out
    packet dropping strategies.

20
(No Transcript)
21
Explicit Congestion Notification (ECN)
  • The TCP congestion control mechanism discussed
    earlier has a major flow it detects congestion
    after the routers have already started dropping
    packets. Network resources are wasted because
    packets are dropped at some point along their
    path, after using link bandwidth as well as
    router buffers and CPU cycles up to the point
    where they are discharged.
  • The question that comes to mind is Could
    routers prevent congestion by informing the
    source of the packets when they become lightly
    congested, but before they start dropping
    packets? This strategy is called source quench.

22
Source quench
  • Send explicit notifications to the source, e.g.,
    use the ICMP. Yet, sending more packets in a
    network that shows signs of congestion may not be
    the best idea.
  • Modify a congestion notification flag in the IP
    header to inform the destination then have the
    destination inform the source by setting a flag
    in the TCP header of segments carrying
    acknowledgments.

23
Problems with ECN
  • (1) TCP must be modified to support the new flag.
  • (2) Routers must be modified to distinguish
    between ECN-capable flows and those who do not
    support ECN.
  • (3) IP must be modified to support the congestion
    notification flag.
  • (4) TCP should allow the sender to confirm the
    congestion notification to the receiver, because
    acknowledgments could be lost.

24
Maximum and minimum bandwidth guarantees
  • A. Packet classification.
  • Identify the flow the packet belongs to.
  • At what layer should be done? Network layer?
  • At each router ? too expensive.
  • The edge routers may be able to do that.
  • At application layer? Difficult.
  • MPLS multi protocol label switch. Add an extra
    header in front of the IP header. Now a router
    decides the output link based upon the input link
    and the MPLS header.

25
Maximum and minimum bandwidth guarantees
  • B. Flow measurements
  • How to choose the measurement interval to
    accommodate bursty traffic?
  • Token bucket

26
The token bucket filter
  • Characterized by (1) A token rate R, and (2)
    The depth of the bucket, B
  • Basic idea the sender is allocated tokens at a
    given rate and can accumulate tokens in the
    bucket until the bucket is filled. To send a byte
    the sender must have a token. The maximum burst
    can be of size B because at most B token can be
    accumulated.

27
Example
  • Flow A generates data at a constant rate of 1
    Mbps. Its filter will support a rate of 1 Mbps
    and a bucket depth of 1 byte,
  • Flow B alternates between 0.5 and 2.0 Mbps. Its
    filter will support a rate of 1 Mbps and a bucket
    depth of 1 Mbps
  • Note a single flow can be described by many
    token buckets.

28
Example
29
(No Transcript)
30
Token bucket
  • L packet length
  • C of tokens in the bucket
  • --------------------------------------------------
    -
  • if ( L lt C )
  • accept the packet
  • C C - L
  • else
  • drop the packet

31
A shaping buffer delays packets that do not
confirm to the traffic shape
  • if ( L lt C )
  • accept the packet
  • C C - L
  • else / the packet arrived early, delay it /
  • while ( C lt L )
  • wait
  • transmit the packet
  • C C - L

32
A QoS Capable Router
