An Overview of Syntaxbased SMT

1

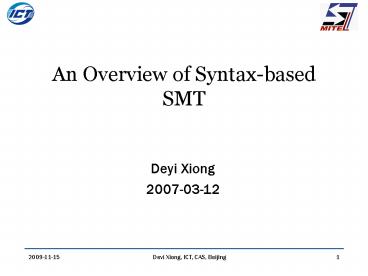

An Overview of Syntax-based SMT

• Deyi Xiong
• 2007-03-12

2
Outline

• Why syntax-based SMT (SSMT)
• Types of SSMT
• SSMT based on formal structures
• SSMT based on phrase structures
• SSMT based on dependency structures
• Conclusions

3
Why syntax-based SMT

• Weakness of phrase-based SMT
• Long-distance reordering phrase-level reordering
• Discontinuous phrases
• Generalization
• Other methods using syntactic knowledge
• Word alignment integrating syntactic constraints
• Pre-order source sentences
• Rerank n-best output of translation models

4
Types of SSMT

• Three categories
• Formal structures
• Phrase structures
• Dependency structures

5
SSMT based on formal stuctures

• Compared with phrase-based SMT
• Translated hierarchically
• The target structures finally generated are not
  necessarily real linguistic structures, but
• Make long-distance reorderings more feasible
• Introduce non-terminals/variables
• Discontinuous phrases put x on, ? x ?
• Generalization

6
Work based on formal structures

• Inversion Transduction Grammar (ITG) proposed by
  Wu (1997, 1998)
• Hierarchical phrase-based model proposed by
  Chiang (2005)
• Both are synchronous context-free grammar (SCFG)

7
SCFG

• Formulated
• Two CFGs and there correspondences
• Or
• P

8
SCFG an example
9
SCFG derivation
10
ITG

• synchronous CFGs in which the links between
  nonterminals in a production are restricted to
  two possible configurations
• Inverted
• Straight
• Any ITG can be converted into a synchronous CFG
  of rank two.

11
BTG
12
ITG as reordering constraint

• Two kinds of reorderings
• Inverted
• straight
• Coverage
• Wu(1997) been unable to find real examples of
  cases where alignments would fail under this
  constraint, at least in lightly inflected
  languages, such as English and Chinese.
• Wellington(2006) we found examples, at least
  5 of the Chinese/English sentence pairs.
• Weakness
• No strong mechanism determining which order is
  better, inverted or straight.

13
Chiang05 Hierarchical Phrase-based Model (HPM)

• Rules
• Glue rule
• Model log-linear
• Decoder CKY

14
Chiang05 rule extraction
15
Chiang05 rule extraction restrictions

• Initial base rule at most 15 on French side
• Final rule at most 5 on French side
• At most two nonterminals on each side,
  nonadjacent
• At least one aligned terminal pair

16
Chiang05 Model

• Log-linear form
• and

17
Chiang05 decoder
18
Outline

• Why syntax-based SMT (SSMT)
• Types of SSMT
• SSMT based on formal structures
• SSMT based on phrase structures
• SSMT based on dependency structures
• Conclusions

19
SSMT based on phrase structures

• Using grammars with linguistic knowledge
• The grammars are based on SCFG
• Two categories
• Tree-string
• Tree-to-string
• String-to-tree
• Tree-tree

20
String-to-tree Models

• ISI family models
• Yamada Knight 2001, 2003
• Galley et al. 2004, 2006
• Marcu et al. 2006

21
Yamada Knight 2001, 2003
22
Yamadas work vs. SCFG

• Insertion operation
• A ? (wA1, A1)
• Reordering operation
• A ?(A1A2A3, A1A3A2)
• Translating operation
• A ?(x, y)

23
Yamada weakness

• Single-level mapping
• Multi-level reordering
• Yamada flatten
• Word-based
• Yamada phrasal leaf

24
Galley et al. 2004, 2006

• translation model incorporates syntactic
  structure on the target language side
• trained by learning translation rules from
  bilingual data
• the decoder uses a parser-like method to create
  syntactic trees as output hypotheses

25
Translation rules

• Translation rules
• Target multi-level subtrees
• Source continuous or discontinuous phrases
• Types of translation rules
• Translating source phrases into target chunks
• NPB(PRP/I) ??
• NP-C(NPB(DT/this NN/address)) ??? ??

26
Types of translation rules

• Have variables
• NP-C(NPB(PRP/my x0NN)) ?? ? x0
• PP(TO/to NP-C(NPB(x0NNS NNP/park))) ? ? x0 ??
• Combine previously translated results together
• VP(x0VBZ x1NP-C) ? x1 x0
• takes a noun phrase followed by a verb, switches
  their order, then combines them into a new verb
  phrase

27
Rules extraction

• Word-align a parallel corpus
• Parse the target side
• Extract translation rules
• Minimal rules can not be decomposed
• Composed rules composed by minimal rules
• Estimate probalities

28
Rule extraction
Minimal rule
29
Composed rules
30
Format is Expressive
Non-constituent Phrases
Phrasal Translation
Non-contiguous Phrases
S
VP
VP
poner, x0
hay, x0
está, cantando
PRO
VP
VB
x0NP
PRT
VBZ
VBG
VB
x0NP
there
on
is
singing
put
are
Multilevel Re-Ordering
Lexicalized Re-Ordering
Context-Sensitive Word Insertion
NP
S
NPB
x0
x0NP
PP
x1, , x0
x1, x0, x2
x0NP
VP
DT
x0NNS
P
x1NP
x1VB
x2NP2
the
of
Knight Graehl, 2005
31
decoder

• probabilistic CYK-style parsing algorithm with
  beams
• results in an English syntax tree corresponding
  to the Chinese sentence
• guarantees the output to have some kind of
  globally coherent syntactic structure

32
Decoding example
33
Decoding example
34
Decoding example
35
Decoding example
36
Decoding example
37
Marcu et al. 2006

• SPMT
• Integrating non-syntactifiable phrases
• Multiple features for each rule
• Decoding with multiple models

38
SSMT based on phrase structures

• Two categories
• Tree-string
• String-to-tree
• Tree-to-string
• Tree-tree

39
Tree-to-string

• Liu et al. 2006
• Tree-to-string alignment template model

40
TAT
41
TAT extraction

• Constraints
• Source trees have to be Subtree
• Have to be consistent with word alignment
• Restrictions on extraction
• both the first and last symbols in the target
  string must be aligned to some source symbols
• The height of T(z) is limited to no greater than
  h
• The number of direct descendants of a node of
  T(z) is limited to no greater than c

42
TAT Model
43
Decoding
44
Tree-to-string vs. string-to-tree

• Tree-to-string
• Integrating source structures into translation
  and reordering
• The output can not be grammatical
• string-to-tree
• guarantees the output to have some kind of
  globally coherent syntactic structure
• Can not use any knowledge from source structures

45
SSMT based on phrase structures

• Two categories
• Tree-string
• String-to-tree
• Tree-to-string
• Tree-tree

46
Tree-Tree

• Synchronous tree-adjoining grammar (STAG)
• Synchronous tree substitution grammar (STSG)

47
STAG
48
STAG derivation
49
STSG
50
STSG elementary trees
51
Outline

• Why syntax-based SMT (SSMT)
• Types of SSMT
• SSMT based on formal structures
• SSMT based on phrase structures
• SSMT based on dependency structures
• Conclusions

52
Dependency structures
IP
VP
NP
??
NP
NP
NP
ADJP
NP
??
NN
NN
NN
VV
NR
NN
JJ
NN
???
??
??
??
??
??
?? ?? ?? ?? ?? ?? ?? ???
(b)
(a)
53
For MT dependency structures vs. phrase
structures

• Advantages of dependency structures over phrase
  structures for machine translation
• Inherent lexicalization
• Meaning-relative
• Better representation of divergences across
  languages

54
SSMT based on dependency structures

• Lin 2004
• A Path-based Transfer Model for Machine
  Translation
• Quirk et al. 2005
• Dependency Treelet Translation Syntactically
  Informed Phrasal SMT
• Ding et al. 2005
• Machine Translation Using Probabilistic
  Synchronous Dependency Insertion Grammars

55
Lin 2004

• Translation model trained by learning transfer
  rules from bilingual corpus where the source
  language sentences are parsed.
• decoding finding the minimum path covering of
  the source language dependency tree

56
Lin 2004 path
57
Lin 2004 transfer rule
58
Quirk et al. 2005

• Translation model trained by learning treelet
  pairs from bilingual corpus where the source
  language sentences are parsed.
• Decoding CKY-style

59
Treelet pairs
60
Quirk 2005 decoding
61
Ding 2005
62
Outline

• Why syntax-based SMT (SSMT)
• Types of SSMT
• SSMT based on formal structures
• SSMT based on phrase structures
• SSMT based on dependency structures
• Conclusions

63
Conclusions
