WSSecurity TC

1

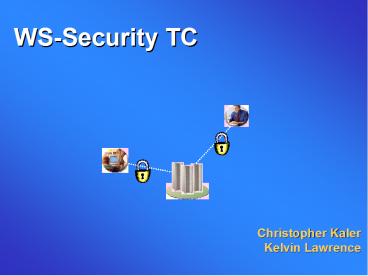

WS-Security TC

• Christopher Kaler
• Kelvin Lawrence

2
Agenda

• Context for WS-Security
• WS-Security Elements and Example
• TC Charter and Deliverables

3
Web Service Security Issues
Username/password

• Getting easier to build web services but who is
  sending the messages?

• Several approaches
• SSL with username and password
• SSL with X509 client certificates
• VPN with Kerberos
• XrML, SAML,
• Challenges
• Computational cost
• Inflexibility
• Firewalls
• Distributed management
• Hop-to-hop vs. end-to-end

Client certificates, Smart Cards,
VPN
4
Security and Web Services

• Security in a Web Services World
• Safer no exposure at intermediaries
• Interoperable broad vendor support
• Leverages XML signature and XML encryption
• Flexible builds on web infrastructure
• Works with HTTP, SMTP, and transports
• Works over firewall, through the DB,
• Durable security is available at the business
  request / application layer

• Higher performance and scalability
• Supports both public and symmetric keys
• Clients exchange security tokens and cache
• Easier a simple common approach for manageable
  authentication, authorization, and permissions

5
A Typical Challenge
Certification Partner
Business Partners
Web Service
Company A
6
A WS-Security Solution
Certification Partner
Business Partners
Web Service
Company A
7
How Does it Work?

• Security tokens assert claims
• Web services have policies
• A security token service is just a web service
  that issues security tokens

8
Security Tokens
Security tokens assert claims
X.509, Kerberos, XrML, SAML,
Identity Keys Privileges, rights, capabilities
Custom

9
Policies
Services have policies

• Policies describe the required claims
• Security tokens assert the claims

Policy
Does the request havethe correct security tokens?
?
10
Security Token Service
A security token service issues security tokens
Security Token Service
Policy
Web Service

• It is just a web service
• A solution may require multiple token services

Policy
11
Agenda

• Context for WS-Security
• WS-Security Elements and Example
• TC Charter and Deliverables

12
New SOAP ElementsWS-Security

• New
• Header
• Existing
• XML Signature
• XML Encryption
• Token formats (e.g., X.509, Kerberos, XrML, SAML)

13

...

• SOAPactor is optional
• One header per actor
• All security information together
• Sub-elements are pre-pendend
• Supports multiple signatures

14
Elements In

• Including and referencing security tokens
• Signature
• Encryption Manifest
• Encrypted Attachments
• Other

15
Simple Example

• Requesting a stock quote
• Security token indicates username
• Signature uses key generated from password

16
Simple Example (1 of 2)

• (001)
• (002) xmlnsds/xmldsig"

• (003)
• (004) .org/rp/"

• (005) http//fabrikam.org/getQuo
  te

• (006) http//fabrikam.org/stocksto

• (007) uuid84b9f5d0-33fb-4a81-b02b-5
  b760641c1d6

• (008)
• (009)
• (010)
• (011) Zoee

• (012)
• (013)
• (014)
• (015) Algorithm".../xml-exc-c14n"/

• (016) Algorithm".../xmldsighmac-sha1"/

17
Simple Example (2 of 2)

• (017) URI"MsgBody"

• (018) Algorithm"http//.../xmldsigsha1"/

• (019) LyLsF0Pi4wP
  U...

• (020)
• (021)
• (022) DJbchm5gK...dsSignatureValue

• (023)
• (024)


• (025) URI"MyID"/

• (026)

• (027)
• (028)
• (029)
• (030)
• (031)
• (032) QQQStockSymbol

• (033)

18
Agenda

• Context for WS-Security
• WS-Security Elements and Example
• TC Charter and Deliverables

19
WS-Security TC Charter
Continue work on the Web service security
foundations published in the WS-Security
specification and under the context of the Web
Services Security roadmap
20
WS-Security TC Scope

• Using XML signature to provide SOAP message
  integrity for Web services

• Using XML encryption to provide SOAP message
  confidentiality for Web services

• Attaching and/or referencing security tokens in
  headers of SOAP messages

• Carrying security information for potentially
  multiple, designated actors

• Associating signatures with security tokens
• Representing specific forms of binary security
  tokens as defined in WS-Security specification.

21
WS-Security TC Deliverables

• Accept as input the Web Services Security
  (WS-Security)

• Produce as output a specification for Web
  Services Security. This specification will
  reflect refinements and changes made to the
  submitted version of WS-Security that are
  identified by the WSS TC members for additional
  functionality within the scope of the TC
  charter.
• Liaise and/or forge relationships with other Web
  services efforts to assist in leveraging
  WS-Security as a part of their specifications or
  solutions.
• Coordinate with the chairs of the other OASIS
  security related groups via the Security Joint
  Coordination Committee.

• Oversee ongoing maintenance and errata of the
  WS-Security specification.

22
Questions
