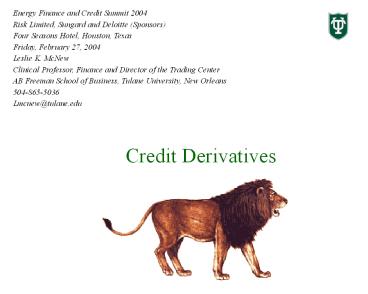

Credit Derivatives

1
Energy Finance and Credit Summit 2004
Risk Limited, Sungard and Deloitte (Sponsors)
Four Seasons Hotel, Houston, Texas
Friday, February 27, 2004 Leslie K. McNew Clinic
al Professor, Finance and Director of the Trading
Center AB Freeman School of Business, Tulane Uni
versity, New Orleans 504-865-5036 Lmcnew_at_tulane.
edu
Credit Derivatives
2
Growth in Credit Derivatives Market
End 2001 1.2 Trillion End 2002 1.5 Trillion
1996
2000
1999
1998
1997
1
3
Growth in Credit Derivatives Market

• Credit Derivatives
• Newest of the derivative markets
• Developed around 1992-1993
• Used to manage and exploit risks/opportunities
  in credit markets

• Risk transferred among participants----off or on
  balance sheet transactions

2
4
Growth in Credit Derivatives Market

• London is the dominant financial center
• Size of the international debt market
• A market-friendly regulatory environment
• Liquid asset swap market
• Derivative strengths

3
5
Definitions
Credit Derivative a credit derivative allows
the holder to isolate and separate credit risk
from market risk, thus allowing this credit r
isk to be either hedged, traded,
or transferred. A premium may be due.
Credit Default Swap enables isolation and
transfer of credit risk without
transferring ownership of the asset
Digital Derivative cash settled transaction
(does not need delivery of underlying asset u
pon settlement) Total Return Swap transfer cred
it risk by swapping an underlying assets
specified total return (capital growth and
interest) between two counterparties, in retu
rn for regular payments of LIBOR spread LI
BOR the London inter-bank offer rate. The
inter-bank rate used when one bank borrows fr
om another. It is also the benchmark used to
price many capital market and
derivative transactions. Credit Spread diffe
rence in yields between an agreed reference
rate and a specific asset in question.
London gilt market US treasury market Of
f-balance sheet instrument or trade does not
have to be admitted to the firms balance shee
t (can be hidden)
4
6
Credit Derivative Trigger Events

• Payment default or bankruptcy/insolvency in the
  case of corporate credits

• Moratorium on payments or the rescheduling of
  payments, as well as payment default

• itself, for sovereign credits
• Chapter 11 or bankruptcy filing by the issuer
• failure to meet payment obligations when due
• rating downgrade below an agreed upon level
• change in the agreed credit spread (over a
  government bond or compared to another

• government bond)
• A materiality threshold (a significant price
  decline) has also to be breached and
  independently agreed.

5
7
Fee Determinants for Credit Derivatives

• credit rating or probable swap counterparty
• maturity
• probability of default
• expected value of the asset (post-default)

Prices from around the time of the California
energy crisis
Basis point conversion to decimal example, 50
bps 50/10,000 .005
6
8
Why Use Credit Derivatives? Protection Buyer

• 4 Main Reasons
• Reduce exposure to a company or bank whose credit
  rating is deteriorating

• To free up credit lines so that higher margin
  businesses may be transacted

• To protect against a downgrading below a
  portfolio managers internal limits

• To reduce credit exposures which have exceeded
  limits, possibly where interest rates or currency
  movements have exceeded expectations

7
9
Credit Default Swap in Energy Market

• Energy Company has a large exposure to Duke due
  to trading activities

• Energy Company wishes to reduce default risk to
  Duke

• Energy Company buys credit derivative from
  Investment Bank to reduce (insure) Duke credit
  risk exposure purchases a DITIGAL instrument

• Investment Bank only pays out notional amount to
  Energy Company if Duke experiences a default
  event (see Triggers)

Energy Company
Energy Company pays 82 basis points to receive,
within 1 year, 10 M from the Investment Bank if
Duke Energy defaults
Receive notional amount of credit protection
If Duke defaults within one year, the Energy
company owns default insurance that will pay
10 M regardless of the amount of the Duke default
10
10
Total Return Swap
Instead of lump sum notional payment in the event
of default, the protection buyer receives a
specified economic value for the reference credit.
Total Return Payer is the Energy Company (X) ---
seller of risk, buyer of protection
Total Return Receiver is the Investment Bank (Y)
buyer of risk, seller of protection
Reference Asset could be bond of another energy
company that Energy Company (X) has credit risk
exposure
Reference Asset

• Energy Company (X) pays any appreciation on the
  capital value of the underlying asset as well as
  any coupons receivable

• Investment Bank (Y) pays Energy Company (X) any
  depreciation of the capital value as well as a
  LIBOR linked floating margin

• Energy Company (X) is guaranteed a specified
  capital value for the underlying, as well as a
  LIBOR linked income for the duration of the swap

• Investment Bank (Y) owns the credit risk, as
  well as any income and any profits generated by
  this asset

• Energy Company (X) retains the ownership of the
  reference asset, and must continue to fund the
  asset (reference asset)

• If there is no credit event, there will be no
  contingent payment

11
11
Total Return Swap
Total Return Payer is the Energy Company (X) ---
seller of risk, buyer of protection
Total Return Receiver is the Investment Bank (Y)
buyer of risk, seller of protection
Reference Asset could be bond of another energy
company that Energy Company (X) has credit risk
exposure

• Why Use Total Return Swaps?
• lock in a specified economic value for the
  duration of the swap

• transfer the market risk of an asset off-balance
  sheet to lower regulatory charges

• used for trading credits on a leverage
  off-balance sheet basis

12
12
Credit Spreads
Credit Spread difference in yields between an
agreed reference rate and a specific asset in
question. London gilt market US treasur
y market

• Example
• T0 Corporate bond trades at 55 basis points
  over gilt

• T1 Corporate bond now trades at 45 basis
  points over gilt

• the credit spread has narrowed (tightened)
• credit quality of bond/bond issuer has improved
• WIDER CREDIT SPREADS IMPLY MORE LIKELY
• CHANCE OF DEFAULT

13
13
Credit Spreads
2 Distinct Versions Credit spread relative to be
nchmark Credit spread between two credit-sensiti
ve assets Easiest way to enter transaction i
s through OPTIONS Credit spread options enabl
e trading/hedging of changes in credit quality of
the specified reference credit
Strike set at a particular credit spread
14
14
Credit Spread Options
Payoff Cspread(T)(K) (spread(T) K) x noti
onal amount x risk factor Where Spread(T) t
he spread for the financial asset over the
risk-less rate at the maturity of the option
K the specified strike spread Notional
amount a contractually specified dollar
amount equal to the amount that needs to be he
dged Risk Factor based on measures of duratio
n and convexity For a description of durati
on, convexity and other financial calculations,
purchase Mastering Financial Calculations, Robe
rt Steiner, Financial Times/Pitman Publishing,
1998, refer to chapter 5 for bond market
calculations, and chapter 9 for options
15
15
Credit Spread Options

• Energy Company X is concerned about a credit
  downgrade of one of its counterparties

• Current counterparty is trading A rating,
  Energy Company X is concerned it will be
  downgraded to a B

• Energy Company X buys downgrade protection in
  the form of a credit spread option

• If the credit spread on its counterparties
  widens, downgrade from A to B, Energy Company
  X receives a payout

• Energy Company X buys a call option on the credit
  spread (widening spread) and pays a premium

In basis points
In basis points
Basis point conversion to decimal example, 50
bps 50/10,000 .005
16
16
Credit Spread Options
Option payout change in credit spread x
notional amount x risk factor Option payout (3
00-150)/10,000 x 1,000 x 1.867 28.00
17
17
First to Default Basket Options Notional Payout
Just as a portfolio manager may purchase
protection on a single name (credit), said
manager may also purchase protection on a basket
of names (credits) two or more.
In the case of the FIRST TO DEFAULT STRUCTURE,
the credits in the basket are protected against
default for a set notional amount. The risk
credit to default triggers the basket payout and
basket termination. At this point, the other
credits are left un-hedged, and most be
re-hedged.
FIRST TO DEFAULT BASKET

Duke Energy Corp
American Electric Power
Sempra Energy
Reliant Energy Inc
El Paso Electric Co
Southern Co
Dynegy Inc
NexCollateral receives 10 M if ONE of the
baskets participants defaults
10 M Notional Total
FIRST TO DEFAULT BASKETS are generally suited for
investment-grade credits with low correlations
and low covariance
18
18
First to Default Baskets vs. Straight Credit
Default Derivatives
COST SAVINGS
FIRST TO DEFAULT BASKETS are generally suited for
investment-grade credits with low correlations
and low covariance
19
19
PRACTICAL EXAMPLES
APPENDIX E - CREDIT RISK LIMITS
Table 1 Portfolio Mix Limits, secured by
parental guarantees
Maximum of
Actual Policy of Midwestern Utility
Outstanding Exposure

Rating
Max. Tenor
By Rating Category
AAA
3 years
N/A
AA
3 Years
N/A
A
3 Years
50
(1)
BBB
2 Years
30
Collateral (security) comes in different formats


Cash


Securities


Treasuries
Can be converted to cash in case of default


Surety Bonds


Letters of Credit


Parental Guarantees
Promise made on behalf of parent to secure
activity undertaken by subsidiary, to a specific
entity (contractual form). At current time,
promise only secures the pre settlement and
settlement risk of actual transactions, no VaR or
liquidated damages. Specific entity usually must
seek legal recourse to recover against this form
of collateral in the case of default.



In Energy industry, large percentage of trading
partners rated BBB or less, and the convention i
s to secure transactions with parental guarantee
s

20
20
PRACTICAL EXAMPLES
Apply Credit Derivatives to Policy Objectives
APPENDIX E - CREDIT RISK LIMITS
Table 1 Portfolio Mix Limits, secured by
parental guarantees
Maximum of
Actual Policy of Midwestern Utility
Outstanding Exposure

Rating
Max. Tenor
By Rating Category
AAA
3 years
N/A
AA
3 Years
N/A
A
3 Years
50
(1)
BBB
2 Years
30

• Problem
• 1. Corporate does not want to have significant
  portfolio exposure

• to BBB risk
• Corporate does not want to have significant
  portfolio exposure

• to parental guarantees as security
• Energy industry, as practice, transacts on
  parental guarantees

• Energy industry participants heavily weighted
  toward BBB

• Need large liquid pool from which to transact to
  make


21
21
PRACTICAL EXAMPLES
Apply Credit Derivatives to Policy Objectives
APPENDIX E - CREDIT RISK LIMITS
Table 1 Portfolio Mix Limits, secured by
parental guarantees
Maximum of
Actual Policy of Midwestern Utility
Outstanding Exposure

Rating
Max. Tenor
By Rating Category
AAA
3 years
N/A
AA
3 Years
N/A
A
3 Years
50
(1)
BBB
2 Years
30
Answer Secure all BBB parental guarantee partici
pants beyond 30 threshold with credit derivative
s Mitigate the portfolio credit risk by
buying protection










22
22
PRACTICAL EXAMPLES
Apply Credit Derivatives to Policy Objectives

• Individual Counterparty Hedge
• Set traditional credit limit
• Purchase protection in form of default credit
  derivative against credit limit (limit and
  notional amount must match)

• Mitigate all credit exposure to counterparty by
  above off-balance sheet transaction (transferred
  risk to AA rated investment bank --- always
  risk that said bank will default)
• Monitor available credit such that it does not
  exceed credit limit

• Charge traders or profit center for cost of
  credit derivative

• 100 compliance with policy while still allowing
  trading liquidity

23
23
PRACTICAL EXAMPLES
Counterparties Over Credit Limit

• Problem/Resolution
• Traders/marketers put deal in system that
  breaches credit limits

• Discipline action required (see policy)
• Company now exposed to greater risk than desired
• Purchase default derivative to cover risk until
  situation can be resolved

• Charge person/group responsible for cost of
  protection (against their P/L)

24
24
PRACTICAL EXAMPLES
Credit in High Volatility Months
Example, summer is high volatility
for power. Keep the deals on the book,
get paid for the extra risk that the
company is taking.
25
25
PRACTICAL EXAMPLES
Credit in High Volatility Months
Total Return Swap
lock in a specified economic value for the
duration of the swap

• Energy Company X will raise credit limits during
  high vol months

• Energy Company X takes on more risk during this
  period and wishes to be compensated for said
  risk

• Total return swap pays Energy Company X a rate
  equal to LIBOR spread, and any depreciation on
  asset (Dynegy)

• Energy Company X pays investment bank any
  appreciation on asset (Dynegy)

• Energy Company X earns a higher rate of return
  during the swap, which compensates it for the
  increased risk that it is assuming

26
26
PRACTICAL EXAMPLES

• Problem
• Rumors in energy industry indicate that problems
  are brewing in California market (possibility of
  credit defaults)

• Energy company X has large position due to
  trading transactions with PGE

• Energy company X wants a credit hedge to offset
  against any cash flow problems PGE may incur
  (credit manager is hearing rumors, and wants some
  protection, but not costly protection
• Energy company X credit manager buys credit
  spread call (credit widening---possibility of
  default greater), struck at current spread level,
  on PGE
• Energy company X credit manager buys call against
  current mark to market position (notional amount
  of call equals current mark to market credit risk
  position with PGE)

27
27
PRACTICAL EXAMPLES
Credit Spreads Against Credit Migration Downward
Current credit spread is 72 bps., and credit
manager sets notional amount at 10 M. Credit
spread widens to 600 bps after 6 months, and the
option pays out over 3 M. If the credit manager
had been wrong on acting on the rumor, the cost
of the option would have been minimal. As it
was, the credit manager acted, and although PGE
did not default, the spread widen to compensate
the credit manager for the extra risk her
portfolio had taken to transact with PGE
Credit spread has widened from 72 bps to 600 bps
after 6 months, and Energy Company X gets out of
option
Payment of premium
Breakeven
28
28
Optimal Credit Protection Column
Parental Guarantees
Payoff based on recovery percentage
Credit Derivatives
All of payoff in event of default situation
Letters of Credit
Credit Portfolio Insurance
29
29
Type in stock ticker (AEP) After stock ticker, sp
ace, type CORP GO Select Corporate Bond desire
d for analysis
Using Bloomberg
Example of a List of Corporate Bonds
30
30
Select Corporate Bond Then, when inside bond, ASW
GO
Using Bloomberg
corporation
31
Good way to get an estimation, actual quotes
differ by 20-50 bps.
31
Using Bloomberg
32
