Automated Source Code Changes Classification

1

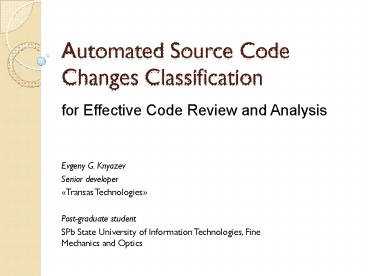

Automated Source Code Changes Classification
for Effective Code Review and Analysis

• Evgeny G. Knyazev
• Senior developer
• Transas Technologies
• Post-graduate student
• SPb State University of Information Technologies,
  Fine Mechanics and Optics

2
Source Code Review

• Informal source code look-through trying to find
  different kind problems in it

3
Source Code Review Helps to

• increase code quality
• find errors on early stages
• know all code of a system
• keep an eye on novices work

4
Source Control System andCode Changes Review

• Source control system keeps development history
• It allows to review only changed code

Source Control System
Change Request (Revision X)

Review
Developer
5
Code Change Review Example
6
Changes Review Task Complexity

• In large project a lot of changes need to be
  reviewed

7
The Solution

• Split changes into classes
• Choose class for review

8
The solution (2)

• Automate changes classification

Source Control System
Automated Changes Classifier
Change
Change Class
Is This Class Interesting ?
Developer
Yes
Review
9
Known Code Changes Classification Methods

• Changes Comments Classification
• bug, fixed a bug fix
• implement, feature new feature
  implementation
• Refactoring Search Using Changes Metrics
• Extract parent class (?DITgt0 ? ?NOMlt0, )
• Move to other class (?DIT0 ? ?NOMlt0, )
• Split method (?NOM lt T, ...)
• Difference Search in Semantic Graphs
• Build code graph before and after the change
• Generate transition script
• Search refactoring templates

10
Changes Metrics Clustering Method Learning Phase
11
Fuzzy Change Metrics Clustering Algorithm
12
Changes Metrics Clustering Method Changes
Classification
13
Changes Metrics

• Calculated as subtraction of revisions metrics
• ?M Mr Mr-1
• CC Cyclomatic Complexity (number of linearly
  independent paths in execution graph)
• CS number of Classes/Structures
• eLOC Effective Lines of Code (without empty and
  comment lines)

14
Metrics Calculation and Clustering of Changes
from Navi-Manager Project
15
Fuzzy Clusters of Revisions Table
16
Method Learning Example

• Project Navi-Manager
• Size of Learning Set 29 changes
• Number of Clusters 4

17
Classification Example
18
Classification Fuzziness

• Change r16833 Deleted an extra commit command
  classified as
• On 2 as refactoring
• On 79 as code deletion
• On 0 as new functionality implementation
• On 20 as bugfix

19
Code Changes Classification in Software
Development Process
20
Changes Control During Important Development
Phases

• Deny potentially destabilizing changes classes

21
Request List of Changes by Class

• For Example request refactorings list done in
  specific version X

Automated Source Code Changes Classifier
Dev Team Leader
Request Refactorings in Version X
List of Refactorings in Version X
List of Changes in
Version X
Source Control System
22
Project Statistics Analysis
23
Achieved Results on Navi-Manager Project

• Effectiveness
• More than 50 time economy on code review
• Development Problems Discover
• Too much bugfixes comparing to new feature
  implementations

24
Automated Changes Classification Tool

• Works with Subversion
• Low depended from program language
• Calculates CC, CS, eLOC metrics
• Discovers change classes
• New feature implementation
• Code deletion
• Refactoring
• Cosmetic Changes
• Bugfixes

25
Future Research

• Method improvements
• Gustavson-Kessel Clustering
• Object and coupling metrics usage
• Refactorings classification
• Application widening
• Usage in development process on constant basis
• Adaptability analysis for different types of
  projects

26
Thank you!

• Any questions?

evgeny.knyazev_at_gmail.com
