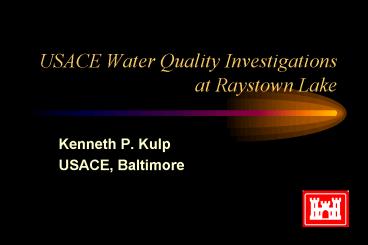

USACE Water Quality Investigations at Raystown Lake

1
USACE Water Quality Investigations at Raystown
Lake

• Kenneth P. Kulp
• USACE, Baltimore

2
Background

• Authorized for construction in 1962
• Construction began in 1968
• Completed in 1973
• Filled to recreation pool elevation in 1975
• Elevation 786 ft

3
Project Purposes

• Flood control
• Recreation
• Water Quality
• Flow augmentation temperature control for
  downstream fisheries

4
Physical Characteristics

• Drainage area - 960 sq. miles
• Length - 30 miles
• Shoreline - 118 miles
• Area - 8,300 acres
• Storage - 514,000 acre feet
• Depth - Mean 61 ft, Max 180 ft
• Hydraulic Residence Time - 233 days

5
Water-Quality Studies

• Pre-impoundment Study (USGS) - 1972
• Post - impoundment Study (USGS) - 1974/76
• Trophic Classification (PADER) - 1985/86
• Detailed Study (USACE PADER) - 1994/95
• Fish Community (USACE USGS) - 1997
• Routine Monitoring (USACE) - 1976 - Present

6
USACE Monitoring Program Methods and Techniques

• Data collected during the growing season
  (April - October)
• Normally sample 3 times per year
• Grab samples at inflow and outflow
• Profiles and discrete depth samples at in-lake
  sites

7
Parameters

• Transparency
• Temperature, pH, D.O., Specific Conductance
• Alkalinity and Acidity
• Orthophosphate, Nitrate N, Ammonia N

8
Routine sampling sites

• RR - Outflow, 1 mile downstream of dam
• R1 - Mile 0, at dam
• R8 - Mile 8.5, near Seven Points Area
• R10 - Mile 13, near mouth of James Creek
• R12 - Mile 18
• R16 - Mile 20.5, at Entriken Bridge
• R18 - Mile 25
• R21 - Inflow, near Saxton

9
(No Transcript)
10
Current Water Quality1994 - 1998

• Varies with depth, location, and time of year
• Ranges from fair to excellent
• Suitable for water-contact recreation
• Capable of supporting a diverse and healthy
  aquatic community
• Primarily degraded by nutrient enrichment
• Low dissolved oxygen

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Trophic Status

• Eutrophic
• Upper lake and embayments
• Mesotrophic
• Mid-lake
• Oligotrophic
• Lower lake

28
Diurnal Investigation

• Conducted at 2 sites in August, 1995
• Embayment near James Creek Launch (J2)
• Near Martys Island (Mile 7.5)
• Depth profiles every 2 hours
• Temperature
• Dissolved Oxygen
• pH
• Specific Conductance

29
Findings - Diurnal Investigation

• Minor changes at both sites
• James Creek
• Temp. - 1.2 deg., D.O. - 1.1 mg/l, pH - 0.4
  units
• Martys Island
• Temp. - 0.8 deg., D.O. - 0.5 mg/l

30
Plankton Studies - 1997 - 98

• Evaluation of phytoplankton and zooplankton
  communities in the lake
• Objectives
• Develop baseline data
• Assist in evaluating trophic status
• Assess food chain dynamics

31
Plankton Study Methods

• Sampled 3 times during the growing season
• 1997 - Stations R1, R8, R16
• 1998 - Stations R1, R8, R10, R16
• Samples collected 1 ft below surface
• Plankton identified and counted
• Metrics calculated
• Density/Abundance - phytoplankton biovolume
• Trophic State Index (TSI)
• Similarity Indices (SI)

32
Plankton Study Findings

• Phytoplankton
• Wide variety of dominants indicative of varied
  environmental conditions
• Based on SI, R1, R8, and R10 similar, R16
  different
• Based on TSI, trophic status is oligotrophic to
  slightly mesotrophic. No trend with location
• Dominant species typically indicative of
  oligotrophic conditions

33
Plankton Study Findings

• Zooplankton
• Densities indicative of slightly mesotrophic
  conditions
• Density of edible forms for fish very low,
  indicative of high concentrations of
  planktivorous fish
• Species varied with location, more eutrophic
  species found at R16

34
Fish Community Investigation

• September 1997
• In cooperation with USGS
• Objectives
• Better understand the aquatic resource
• Add to baseline data
• Access impacts of the lake on downstream fishery

35
Methods - Fish Community Investigation

• Sampled 100 m reach above and below lake
• Two passes using backpack electroshocker
• Fish identified to species, counted, measured,
  and weighted
• Habitat assessment using RBP (EPA)
• Metrics calculated
• Shannon Index, Jaccard Coefficient, Index of
  Similarity, Index of Biotic Integrity (MD), and
  CPUE

36
Results - Fish Community Investigation

• Upstream and downstream communities in fair
  condition and moderately impacted
• Habitat in both reaches is sub-optimal, but
  different.
• Communities are not similar
• Upstream community characteristic of shallow,
  fast moving water
• Downstream characteristic of deeper, slower
  moving water

37
In-lake Fishery

• Sport fish species include
• Striped Bass
• Largemouth Bass
• Smallmouth Bass
• Muskellunge
• Walleye
• Lake Trout
• Atlantic salmon

38
In-Lake Fish Stocking - 1999

• Striped Bass - 100,000
• Walleye - 83,000
• Muskellunge - 8,300
• Lake Trout - 50,000

39
Fishing Tournaments

• 1997
• Black Bass
• 49 Events
• 1711 Anglers
• Striped Bass
• 1 Event
• 17 Anglers

• 1998
• Black Bass
• 77 Events
• 2933 Anglers
• Striped Bass
• 4 Events
• 102 Anglers
