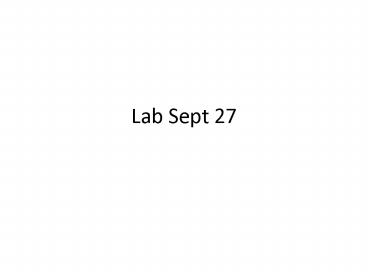

Lab Sept 27

1
Lab Sept 27
2
review

• Fourier splits a signal into components
• Each component
• Basis function
• Coefficient
• Basis function sine wave at particular freq
• Coefficient amplitude and phase

3
review
image taken from wikipedia
4
review
perfect sin waves at diff frequencies and
amplitudes
5
review
perfect sin waves at diff frequencies and
amplitudes
6
review
perfect sin waves at diff frequencies and
amplitudes
7
review
perfect sin waves at diff frequencies and
amplitudes
8
review
perfect sin waves at diff frequencies and
amplitudes
9
review

• Frequency domain graph

10
review

• Frequency domain graph

? Number of cycles per area
11
review

• Frequency domain graph

? 1 cycle. Height gives amplitude
12
review

• Frequency domain graph

? 1 cycle. Height gives amplitude
13
review

• Frequency domain graph

? 2 cycle. Height gives amplitude
14
review

• Frequency domain graph

? 3 cycles. Height gives amplitude
15
review

• Frequency domain graph

? 4 cycle. Height gives amplitude
16
review

• Frequency domain graph

17
review
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
18
review
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
19
Spatial/frequency domain
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
20
Spatial/frequency domain
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
21
Spatial/frequency domain
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
22
Spatial/frequency domain
spatial
frequency
http//local.wasp.uwa.edu.au/pbourke/other/dft/
23
More 2D!

• Spatial domain
• What we are used to

24
More 2D!

• Spatial domain

y
x
Pixel colour
25
More 2D!

• Frequency domain

v
u
Amplitude/phase
26
More 2D!

• Frequency domain

v
u
Amplitude/phase
27
More 2D!

• Frequency domain
• u- freq in x direction
• v- freq in y direction
• amplitude is brightness

v
u
Amplitude/phase
28
2d images..
29
2d images..
30
2d images

• Mixed components?

31
2d images

• Mixed components?

32
Handout quiz!

• Groups!
• Match each spatial graph to its frequency graph
• What is the u, v value of each? Hint, only look
  at spatial graphs for this.

33
Pictures?

• Frequency plot too complex to understand
• But! We can see trends and particular properties

34
http//www.cs.unm.edu/brayer/vision/fourier.html
35
Edge effects

• FFT is periodic
• Assumes image repeats!

36
Edge effects

• FFT is periodic
• Assumes image repeats!

37
Edge effects

• Why only in y direction?
• Spike perpendicular to strong changes and
  features.

http//www.cs.unm.edu/brayer/vision/fourier.html
38
Strong features
http//www.cs.unm.edu/brayer/vision/fourier.html
39
Strong features
http//www.cs.unm.edu/brayer/vision/fourier.html
40
Handout / quiz 2

• Match the image to the frequency graph
