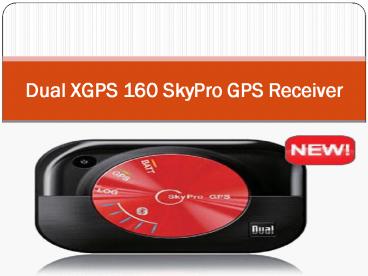

Dual XGPS 160 SkyPro GPS Receiver

1
Dual XGPS 160 SkyPro GPS Receiver
2

• Meet the SkyPro - a brand new GPS Receiver with
  fast signal acquisition and 10Hz positioning
  updates, making it an ideal GPS for pilots, race
  car drivers and other fast moving applications.
  The WAAS receiver is compatible with both GPS
  (USA) and GLONASS (Russia) systems and it
  connects via Bluetooth to up to 5 Apple or
  Android devices.

3

• Just like its predecessor, the popular XGPS150,
  SkyPro is very simple to use. There is a quick
  set up process that includes pairing your tablet
  with the unit. Once this is done, SkyPro will
  automatically connect to the device it was last
  paired with, and you will be able to use it with
  hundreds of apps that require location
  information.

4

• The GPS receiver will run for up to 10 hours on a
  charge, and can be recharged using the included
  12-28VDC cigarette lighter adapter, from any PC,
  or from the USB charger which came with your
  tablet/phone.

5

• This GPS Receiver also comes with a useful GPS
  Status Tool app. (Available free on the iTunes
  App Store). The app allows you to turn on and off
  the automatic route recording feature, and to
  export the stored log file information. The
  Status Tool app also shows detailed information
  from the GPS Receiver including

6

• Your location (or whether the device is still
  determining where you are) How many satellites
  the device sees and the signal strength of each
  satellite The battery level of the GPS
  Receiver, and whether or not it is charging
  Confirmation the GPS Receiver is successfully
  connected to your iPad/iPod touch/iPhone

7

• The SkyPro GPS Receiver also includes a non-slip
  pad for use in a cockpit, car or a boat.Key
  Features High-sensitivity WAAS GPS receiver
  Simultaneous GPS and GLONASS reception Up to 10
  position samples per second Bluetooth wireless
  connectivity to up to 5 devices iPad
  (generations 1 to 4) iPad mini iPod
  Touch (generations 2-5)

8
(No Transcript)
9

• iPhone (all models) Bluetooth-enabled
  smartphones, tablets and laptops (Android, OS X,
  Windows and Surface Devices) Automatic route
  recording Works with most apps that require
  GPS Built-in rechargeable battery lasts 10
  hours USB charging via the included USB cable
  Includes a non-slip dashboard pad Includes
  12-28VDC charging adapter

10
SPECIFICATIONS

• GPS/GLONASS GPS and GLONASS supported
  simultaneously 99 channels SBAS (WAAS, MSAS,
  EGNOS, GAGAN) supported GPS L1
  1598.06251605.375 MHz GLONASS L1
  1598.06251605.375 MHz Accuracy /-2.5m
  (CEP) Fast location acquisition times lt 29
  secs (warm or cold start) Position updates up
  to 10 times per second Maximum speed 1000 kts
  / 1150 mph Maximum altitude 20,000 m / 65,600
  ft

11
Bluetooth

• CSR engine Version 2.1 EDR Bluetooth
  connectivity to up to 5 devices (5 Apple devices,
  5 Android devices, etc.) Bluetooth range 33 ft
  / 10m (open space)

12
Internal Battery

• Full charge lasts for at least 10 hours of
  continuous use (for 1 device) Recharges in 3
  hours Capacity 1400 mAh Plug in to 12VDC
  source for continuous use

13
General

• Supports both NMEA and Apple protocols Small
  and light 2.7" (70mm) wide x 2.2" (55mm) tall
  x 0.8" (22mm) thick 2.5 ounces / 71 grams
  Non-slip pad 4.8" (122mm) wide x 4.2" (107mm)
  tall x 0.9" (25mm) thick Operating temperature
  14F - 140F (-10C - 60C)

14
What's in the box

• The XGPS160 SkyPro GPS Receiver 12-28V
  Cigarette Lighter Adapter Mini USB to USB
  charging cable Non-slip pad Status Tool App
  (free download from the iTunes App Store)
  Owner's manual with warranty information

15

• To know more information, visit us

http//www.ozpilot.com.au/
