Title: Buy Arduino Camera from Robomart


1

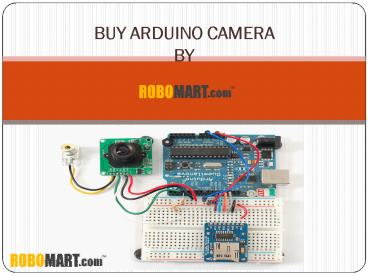

BUY ARDUINO CAMERABY
2
CMOS CAMERA MODULE
  • This is a high-quality color CMOS camera module.
  • Power the module, hook up any display, monitor,
    or LCD screen with an RCA input and get vivid
    color video at 640x480 resolution.
  • Module is easily mountable and has a wide
    operating voltage (5V to 15V). Comes with high
    quality optics, all the on board circuitry to
    output RCA signal, and cable harness.

3
HOW IT LOOKS Product Code RM0670
4
SPECIFICATIONS OF CMOS CAMERA MODULE
  • Pixel 1.3 mega pixel.
  • Resolution 640 x 480 / 1280 x 1024.
  • Color 24 bit.
  • Transmission rate 30/15 fps.
  • Input 5V to 15V.
  • Current 50mA (at 12V).
  • Switchable NTSC and PAL output using a jumper.

5
FEATURES OF CMOS CAMERA MODULE
  • Low voltage suitable for embedded applications.
  • Standard SCCB interface compatible with I2C
    interface.
  • Raw Rgb to RGB (GRB4 22, RGB565/555/444), YUV
    (422) and ycbcr (422)output format support
    VGA,
  • CIF, and from CIF to 40x30 the size.
  • Eliminate light stripes, automatic black level
    calibration image quality control including
    color.
  • Saturation, hue, gamma, sharpness ANTI_BLOOM.
  • ISP has eliminate noise and dead pixel
    compensation function.
  • Support image scaling.
  • The lens is the loss of light compensation.
  • 50/60Hz detection.

6
APPLICATIONS OF CMOS CAMERA MODULE
  • It is used as a camera.
  • AVR/Arduino/Raspberry-pi based camera interfacing
    project.

7
CONTACT US
  • B5, C-Block, Above IOB Bank, Sec-31,
    Noida-201301(UP) India
  • 0120-4317229
  • 91-8744000555
  • admin_at_robomart.com
  • www.robomart.com

8
Thank you!!!
