Physical Layer Testbed Components

1

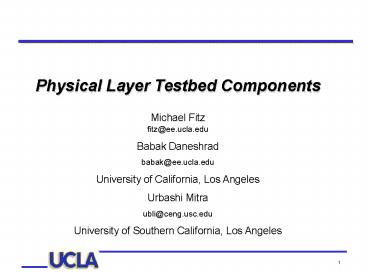

Physical Layer Testbed Components Michael
Fitz fitz_at_ee.ucla.edu Babak Daneshrad babak_at_ee.ucl
a.edu University of California, Los
Angeles Urbashi Mitra ubli_at_ceng.usc.edu University
of Southern California, Los Angeles
2
Overview of Effort

• Narrowband Testbed (Fitz)
• MIMO Wideband Testbed (Fitz/Daneshrad)
• Ultrawideband Testbed (Mitra)
• Note as one would expect testbed network utility
  today is inversely proportional to bandwidth
• The Whynet goal is to bring these capabilities to
  roughly equivalent levels

3
Narrowband Testbed - Executive Summary from
Kickoff Meeting

• Goals in Year 1
• Establish infrastructure based testbed
• Establish ad-hoc long range testbed
• Produce physical layer interface and overview
  document
• MIMO feedback communication experiments
• Eventual network capabilities
• Full infrastructure network (10 nodes)
• Full ad-hoc network (10 nodes)
• Integration with 802.11 network for configuration
  management applications
• MIMO limited (1-2 nodes)

4
Narrowband Network Accomplishments

• API for modem and base stations complete
• Linux based
• Appears as a standard network port
• Demoed during PI meeting
• 5 node network established
• Developed an efficient physical layer
  synchronization architecture for ad-hoc operation
• Bandwidth efficient CPM modulation
• Carrier sense and complete synchronization of phy

5
Narrowband Network System Configuration
6
Narrowband Near Term Goals

• Document the network
• Software interfaces for networking community
• Realistic deployment
• Transfer an FCC license (could use NSF help here)
• Factor building (cover entire West side of LA)
• Write a magazine article to advertise the
  capability and invite the communitys
  participation

7
MIMO Wideband Testbed - Executive Summary from
Kickoff Meeting

• Functional in Year 2
• Nodes for MIMO enable network testing
• Produce physical layer interface and overview
  document
• MIMO feedback communication experiments
• Eventual network capabilities
• Full ad-hoc network (10 nodes)

8
Wideband Network Accomplishments

• Established an automated infrastructure for
  realistic channel data acquistion
• Established a testbed for .11n applications
• Calibrated and tested wideband radios/modems at
  2.4GHz and 5.4GHz
• Performed an extensive field test at 5.4GHz

9
Goal is to Automate Radio Testing

• Automated to minimize labor in testing
• Remotely accessible
• Acquire data remotely
• Control experiment remotely
• Share data across the internet
• Construction must be by an untrained labor force
• NSF does not give much money

10
Solution - Lego Robot
11
Measurement Setup

• Remote terminal could be anywhere
• Demoed at PI meeting

12
Remote PHY Testing - Channel Emulator

• 4 Channels were able to be purchased
• Future proposals for more channels in the works
• Demoed running 2x2 at the PI meeting

13
Asteriod The Phase-1 Testbed
Graphical User Interface (GUI)
14
Practical Impairments Calibration-
Calibration to 25 dB SNR floor- Fix known issues
to deliver a stand alone robust platform
15
Testbed calibration in perfect timing mode
Implementation Loss with Perfect timing
Implementation Loss with Non-Perfect timing
16
Most Recent Measurement Campaign- Inside same
room- Between 2 rooms- From Lab to Hallway-
Inside of cubicle area- Results to be added to
WHYNET repository
17
Capacity curves in EE54-114
Keep received power Constant for all cases By
referring back to the Tx.
Theoretical channel Capacity
Capacity measured using slicer SNR
18
MIMO2x2 Overhead analysis
As training symbols and continuous pilots
increase SNROUT increases, but throughput drops
due to increased overhead.
19
Wideband Goals

• Automated test environment
• Robots
• Channel emulator
• Make this environment available on the web
• FPGA/DSP platform
• Algorithm development and testing
• ASIC/FPGA platform
• Networking development and testing

20
Ultrawideband Radios - Executive Summary from
Kickoff Meeting

• Functional Point to Point Year 2
• Physical layer experiments
• Point to point networking with interference
• Eventual network capabilities
• Stationary local area networking
• Limited network scenarios

21
Second derivative of Gaussian pulse as tx template

• Left Measured template in anechoic chamber
• Right Measured received signal due to a single
  template in the typical environment.
• Note to the very dense multipath effects on the
  received signal
• Note to the differentiation effect of
  transmission in the single template

22
WHYNET test bed

• UWB physical layer simulation
• Link with network simulator (NS) environment
• C programming
• Different settings and parameter selection
• Simulate different typical environments
• (IEEE 802.15 four UWB channel models)
• Different parameter selection in transmitter,
  receiver and employed techniques
• Wireless development kits (WDK) from
  XtremeSpectrum

23
Channel models and timing recovery

• Channel model (IEEE 802.15)
• CM1 LOS, 0-4m channel measurement
• CM2 NLOS, 0-4m channel measurement
• CM3 NLOS, 4-10m channel measurement
• CM4 Extreme NLOS multipath, 25 nsec rms delay
• Synchronization levels
• UWB Frame timing recovery
• Symbol timing recovery

24
Mode parameters block diagram
De-spreading RAKE receiver/ TR receiver
(standard/optimized) Decoder
IEEE UWB channel model (CM1/CM2/CM3/CM4) Narrow
band interference Gaussian Noise Propagation
effects on template waveform
Sync. symbols Error correction codes Spreading
codes (TH/DS) No. of frames/bit
Template waveform Power/Energy
UWB Frame maker
Receiver front-end
Modulator (PAM/PPM)
CHANNEL
Detector/decoder
Data blocks to higher layer
Data blocks From higher layer
Effects of antenna on template Channel
estimation Clean algorithm/efficient search
algorithms Synchronization
25
UWB Future Goals

• Majid to add

26
Some basic parameters (adjustable)

• Nsy Number of data symbols/observed interval
• Nd Number of transmitted symb/data symb
• Tsam Template sampling time
• Nu Number of users
• Ts Symbol time
• Nf Number of frames/symb
• Nc Number of chips/symb
• Nh Time hopping seq. max value
• Nr Number of reference symbs
• Delta-samTime of RAKE fingers
• Alpha Fraction of transmitted energyspent for
  training and data symbs
• Np period of spreading sequence (DS case)
• Bcode Block code being used

27
Using Testbeds in the Classroom
28
EE233B Wireless Communications Research

• Simulation Component
• Students simulate a complete end to end QAM
  system with DFE and smart antenna processing
• Experimental Component
• Experimental system transmits 10 Mpbs real time
  and incorporates both DFE and smart antenna
  system
• Students carry out field measurement campaign and
  collect data
• Analysis and Conclusions
• Compare filed data and simulation data
• Draw conclusions and explain discrepancies

29
EE233A Wireless Communication Theory

• Used the narrowband infrastructure to teach
  wireless communication theory
• Gave the students journal papers and they were
  required to implement the papers algorithm in a
  real-time system
• EX - BLAST
• 4bits/antenna
