Rutgers UniversityWebb Research Corporation

1

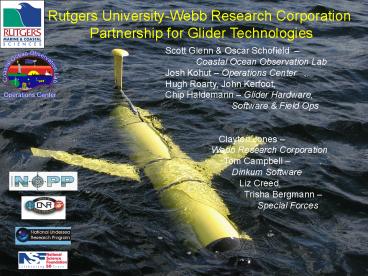

Rutgers University-Webb Research Corporation
Partnership for Glider Technologies
Scott Glenn Oscar Schofield
Coastal Ocean Observation Lab Josh Kohut
Operations Center Hugh Roarty, John Kerfoot,
Chip Haldemann Glider Hardware,
Software Field Ops
Clayton Jones Webb
Research Corporation Tom
Campbell Dinkum
Software Liz Creed,
Trisha Bergmann
Special
Forces
2
A Look Back
By Tommy Dickey UCSB
If I were to choose a single phrase to
characterize the first century of modern
oceanography, it would be a century of
under-sampling.
Walter Munk, 2000
3
U.S. Commission on Ocean Policy Final Report
September, 2004
Chapter 27 Enhancing Ocean Infrastructure and
Technology Development

• A robust infrastructure with cutting-edge
• technology forms the backbone of modern
• ocean and coastal science and effective
• resource management and enforcement.
• 3 Major Components for Oceans Coasts
• Facilities land based structures
• (labs, monitoring stations)
• and remote platforms
• (ships, aircraft, satellites,
  submersibles).
• Hardware research equipment, sensors
• instrumentation, information technology.
• Technical Support expert human resources
• to operate, maintain and use for
• monitoring, research, modeling, resource
• assessments, education enforcement.

4
U.S. Commission on Ocean Policy Final Report
September, 2004
Recommends Creating Virtual Marine Technology
Centers
Link existing capabilities, researchers and
students. Scientists and engineers work
collaboratively to solve fundamental
oceanographic questions. Large numbers of
platforms and sensors coordinated for
interdisciplinary research. Individuals not
required to acquire and master increasingly
complex instrumentation. Incubators for
innovation and new technologies, multi-purpose
focus enhances education. Located at existing
universities, science centers, etc. Recommendatio
n 27-6 NOAA should establish 4-6 national
virtual marine technology centers at existing
institutions to provide coordinated access,
through electronic means, to cutting-edge,
large-scale research technologies.
5
Rutgers University Coastal Ocean Observation
Lab Operations Center
CODAR Network
Cable
Glider Fleet
X-Band
L-Band
Mission Sustained Operations of Key Observing
Technologies for Scientific Research, Technology
Development, Education and Outreach
6
Rutgers University Glider Testbed Activities
Operational testing of new hardware and
software Continuous Feedback to Webb Research
Software Prototype Development and Testing
Procomm to Z-Modem Iridium Comms GRCS to
Dockserver Automated System Monitoring
Automated Decision Making Data Processing
Web-based displays for adaptive sampling
Assimilation forecast models by NRL, NAVO
Assimilation into performance prediction models
SAIC, Metron Sensor Software Improvement and
Testing CTD Thermal lag, SAM,
Hyperspectral spectrophotometer Training of
operators RU, NAVO Guidance to Webb customers
for Field Operations Development of a broader
user community
7
Slocum Electric Glider

Science Bay Specs. Length 30 cm Diameter 21.3
cm Max. Payload Weight 4 kg
Glider Specs. Length 1.5 m Hull Diameter 21.3
cm Weight 52 kg
8
(No Transcript)
9
Deployments and recoveries from a variety of
vessels
10
Communication
Each glider is equipped with two bi-directional
communication links, located in the tail.
FREEWAVE A high frequency radio (RF)
communication link (Freewave Technologies) allows
for high speed, line of sight data transmission
and a repeater can be used to increase the
distances of communication IRIDIUM Satellite
telephone link (Iridium Satellite LLC) also
provides global communication coverage.
ARGOS ARGOS transmitter is also located in the
tail and broadcasts GPS coordinates to locate the
glider in case of an emergency.
11
FreeWave Communications
Command and Control Center
Data Visualization
Dockserver
FreeWave Antenna
Modem Bank
GUI Realtime Tracking
LINUX Servers
Iridium Communications
Antenna
Phone
Antenna Cable
Serial Cable Phone to Laptop
12
Webpage/gui
Dockserver Remote Glider Control
Data Products http//marine.rutgers.edu/kerfoot/
auv_data/
Glider Tracking GUI Realtime Visualization
13
Mail box 2 Thinking using its own data
Automated Control Smart Flight Software
-Using agent oriented programming make Glider
fleets smart by optimizing their sampling based
on what data is delivered from the observatory.
Mail box 3 Thinking using other real-time data
14
Future steps - New sensors
Fluorescence kinetics Photosynthetic rates,
quantum yields Are the nepheloid layers dominated
by living material?
Radiant light field Underwater visibility
models What can we see?
Above water measurements Air-sea temp.
difference, radiant heating
Other Payload Bay Sensors Wave
Accelerometer Oxygen Optodes ADCPs
15
RU-COOL GLIDER FLEET STATISTICS11/01/2005 1400
GMT
KILOMETERS FLOWN 14119.91 CALENDAR DAYS
483 GLIDER DAYS 683
16
NJSOS Endurance Line 2003 - Present
KILOMETERS FLOWN 8289.62 CALENDAR DAYS
336 GLIDER DAYS 382
17
Oct. 03
Jun. 04
Mar. 04
Mar. 04
Jul. 04
Nov. 03
Apr. 04
Aug. 04
Nov. 03
Sep. 04
Dec. 03
Apr. 04
Sep. 04
Jan. 04
May. 04
Jan. 04
May. 04
Sep. 04
Feb. 04
Jun. 04
Oct. 04
Feb. 04
Jun. 04
18
RIDER IN THE STORM
16-Sep-2004 150053 - 23-Sep-2004 115727
Temperature
Depth-Averaged Currents Surface Currents
bb532
bb(532)/c(532)
7410
7400
7350
7340
7330
7320
7310
19
NJSOS Optical Backscatter Cross-Sections
110
20
EcoHAB (Ecology of Harmful Algal Blooms) 2003-2004
KILOMETERS FLOWN 586.03 CALENDAR DAYS 34 GLIDER
DAYS 36
21
Hyperspectral Absorption Spectra Measured from a
Glider
22
CBLAST 2003 - Present
Chlorophyll a
KILOMETERS FLOWN 822.35 CALENDAR DAYS 45 GLIDER
DAYS 55
ASIT Tower
Optical backscatter _at_ 532nm
ROMS
Optical backscatter _at_ 660nm
Glider
23
Nearshore Application

• Mine Counter Examples

-Science drivers What regulates the presence and
spatial extent of nepheloid layers? How does the
presence feed back on benthic and water column
processes?
24
MIREM (MIne Readiness and Effectiveness Measuring
Program) 2003 2005
KILOMETERS FLOWN 17.73 CALENDAR DAYS 5 GLIDER
DAYS 5
Coastal Minewarfare depth regimes
Salinity
bb532nm
25
MIREM
26
EDDIES Sargasso Sea - 2005
KILOMETERS FLOWN 789.78 CALENDAR DAYS 36 GLIDER
DAYS 36
27
SHAREM 150 SMART SEARCH - 2005
KILOMETERS FLOWN 1992.49 CALENDAR DAYS
27 GLIDER DAYS 78
28
Smart Search/SHAREM 150 March 24, 2005 -Glider
Mission Planning
- Four Gliders fly to eddy center from corners.
- One held in reserve as spare or for special
features.
29
Smart Search/SHAREM 150- Glider Tracks and

Temperature Field

April 5-21, 2005
30
Model Tuning
Large amount of in situ data allowed tuning of
MODAS to better resolve relevant oceanographic
features than ever before.
Sargasso Sea Front
Sargasso Sea Front
Sargasso Sea Front
Cold Core Eddy
Warm Core Remnant
Warm Core Remnant
Warm Core Remnant
Cold Core Eddy
Cold Core Eddy

• Standard Parameters
• Satellite data only
• Loosely defined Sargasso Sea Front.
• Weak, misplaced cold core eddy.
• Nonexistent warm core remnant.
• Weak current velocities.

• Standard Parameters
• Satellite and in-situ data
• Increased detail in Sargasso Sea Front.
• Weak, correctly placed cold core eddy.
• Weak warm core remnant.
• Stronger current velocities.

• Tuned Parameters.
• Satellite and in-situ data.
• Undulating detail in Sargasso Sea Front.
• Strong, correctly placed cold core eddy.
• Turbulent warm core remnant.
• Strongest current velocities.

31
AOPEX - 2004
KILOMETERS FLOWN 102.62 CALENDAR DAYS 10 GLIDER
DAYS 10
Laboratorie d Oceanographie de
Villerfanche Herve Claustre Andre Morel Marcel
Babin David Antione European Space
Agency Calibration of ESA For Ocean Color and
Understanding the role Of Moroccan Dust
32
GLOBEC Baltic Sea - 2005
KILOMETERS FLOWN 97.63 CALENDAR DAYS 7 GLIDER
DAYS 7
With Wolfgang Fennel
33
Liverpool Bay Coastal Observatory - 2005
KILOMETERS FLOWN 232.02 CALENDAR DAYS 7 GLIDER
DAYS 7
Proudman Lab John Howarth
34
Shallow Water 05/06
KILOMETERS FLOWN 813.12 CALENDAR DAYS 18 GLIDER
DAYS 36
35
LATTE 2004 Present
KILOMETERS FLOWN 650.83 CALENDAR DAYS 32 GLIDER
DAYS 34
36
CARBON IS PROVIDED TO THE SHELF FROM NURMEROUS
RIVERS FED BY BIG WATERSHEDS
37
Freshwater Plume Moves Out Across the Shelf
Hudson Shelf Valley
38
Freshwater Plume Moves Out Across the Shelf
Water Mass Boundaries (Oliver et al.,
2004) April 13, 2005
-NJ highway transports carbon, fish larvae, etc.
39
LaTTE 2005 -Post Injection 2 Final shipboard
survey After luring the Cape Hatteras offshore.
The survey began on the Highway. We were near
the glider when it surfaced. We saw currents
ripping southward in a 10 m thick layer of
freshwater along the highway -- perhaps the most
significant freshwater transport we saw all
week. Perhaps the most perplexing to me
is the Highway and why there has been a lack of
a strong coastally trapped flow this week.
--- Bob Chant aboard the Cape Hatteras, April
21, 2005
40
Future Plans
Deployments with Multiple Glider Types ONR
Glider Consortium
Seaglider
Slocum
Spray
Establish a Slocum Glider Technology Center at
Rutgers - ONR Support with State Match
NOAA/NURP Support EPA/NJDEP
Support Establish a Glider Training Center
-NAVO, NRL, USNA, NURP Evolve International
Partnerships Norway, Germany, France,
England
