Audio Jack Card Reader

1
LINEA PRO 5 1D BARCODE SCANNER, MAG STRIPE ,
APPLE I-PHONE5

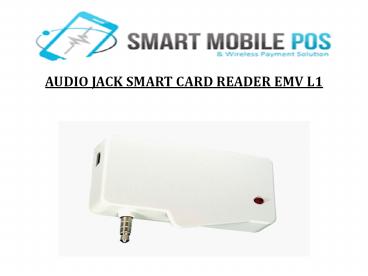

AUDIO JACK SMART CARD READER EMV L1

2
DESCRIPTION

• Audio jack smart card reader EMV L1 for iPhone
  and Android
• Our secure chip card reader is with audio jack
  adapter and is compatible with iphone and
  Android.
• We can provide an SDK developmet kit for
  integration into your own application. Product is
  developed successfully and available now.

3
FEATURES

• Manual-insert IC Card
• Support ISO 7816, EMV 2000 and PBOC2.0 CPU Card
• Support Memory Card
• Audio-jack interface
• Battery power
• Small in size

4
SPECIFICATIONS
Sr. No. Particular Detail
1 Power Supply Internal Voltage 3.3V 5V
2 Battery Rechargeable Li-ion 3.7V/1300 mAh
3 MCU 32-bit RAM, Cortex, M3 Based Micro Controller
4 Communication USB interface between Linea pro 6 iPhone5/iPod5
5 Buttons Scan and Status Button
6 Magnetic Stripe 3 track bi-directional reading capabilities
7 Bluetooth Communication(optional) Bluetooth 2.0, Class 2 and distance up to 10 metre.
8 LEDs 4 LEDs for battery Status
9 Audio Indicator Buzzer
5
