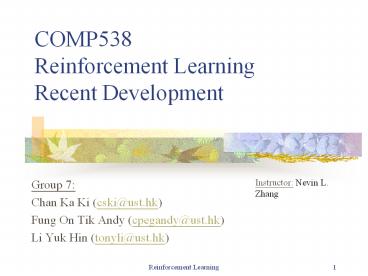

COMP538 Reinforcement Learning Recent Development

1
COMP538Reinforcement LearningRecent Development

• Group 7
• Chan Ka Ki (cski_at_ust.hk)
• Fung On Tik Andy (cpegandy_at_ust.hk)
• Li Yuk Hin (tonyli_at_ust.hk)

Instructor Nevin L. Zhang
2
Outline

• Introduction
• 3 Solving Methods
• Main Consideration
• Exploration vs. Exploitation
• Directed / Undirected Exploration
• Function Approximation
• Planning and Learning
• Directed RL vs. Undirected RL
• Dyna-Q and Prioritized Sweeping
• Conclusion on recent development

3
Introduction

• Agent interacts with environment
• Goal-directed learning from interaction

Environment
4
Key Features

• Agent is NOT told which actions to take, but
  learn by itself
• By trial-and-error
• From experiences
• Explore and exploit
• Exploitation agent takes the best action based
  on its current knowledge
• Exploration try to take NOT the best action to
  gain more knowledge

5
Elements of RL

• Policy what to do
• Reward what is good
• Value what is good because it predicts reward
• Model what follows what

6
Dynamic Programming

• Model-based
• compute optimal policies given a perfect model of
  the environment as a Markov decision process
  (MDP)
• Bootstrap
• update estimates based in part on other learned
  estimates, without waiting for a final outcome

7
Dynamic Programming
8
Monte Carlo

• Model-free
• NOT bootstrap
• Entire episode included
• Only one choice at each state (unlike DP)
• Time required to estimate one state does not
  depend on the total number of states

9
Monte Carlo
10
Temporal Difference

• Model-free
• Bootstrap
• Partial episode included

11
Temporal Difference
12
Example Driving home
13
Driving home

• Changes recommended by Monte Carlo methods

• Changes recommended
• by TD methods

14
N-step TD Prediction

• MC and TD are extreme cases!

15
Averaging N-step Returns

• n-step methods were introduced to help with TD(l)
  understanding
• Idea backup an average of several returns
• e.g. backup half of 2-step and half of 4-step
• Called a complex backup
• Draw each component
• Label with the weights for that component

16
Forward View of TD(l)

• TD(l) is a method for averaging all n-step
  backups
• weight by ln-1 (time since visitation)
• l-return
• Backup using l-return

17
Forward View of TD(l)

• Look forward from each state to determine update
  from future states and rewards

18
Backward View of TD(l)

• The forward view was for theory
• The backward view is for mechanism
• New variable called eligibility trace
• On each step, decay all traces by gl and
  increment the trace for the current state by 1
• Accumulating trace

19
Backward View

• Shout dt backwards over time
• The strength of your voice decreases with
  temporal distance by gl

20
Forward View Backward View

• The forward (theoretical) view of TD(l) is
  equivalent to the backward (mechanistic) view for
  off-line updating

21
Adaptive Exploration in Reinforcement Learning
Relu Patrascu Department of Systems Design
Engineering University of Waterloo Waterloo,
Ontario, Canada relu_at_pami.uwaterloo.ca
Deborah Stacey Dept. of Computing and Information
Science University of Guelph Ontario,
Canada dastacey_at_uoguelph.ca
22
Objectives

• Explains the trade-off between exploitation and
  exploration
• Introduces two categories of exploration methods
• Undirected Exploration
• ?-greedy exploration
• Directed Exploration
• Counter-based exploration
• Past-Success directed exploration
• Function approximation Backpropagation algorithm
  and Fuzzy ARTMAP

23
Introduction

• Main problem How to make the learning process
  adapt to the non-stationary environment?
• Sub-Problems
• How to balance exploitation and exploration when
  the environment change?
• How can the function approximators adapt the
  environment?

24
Exploitation and Exploration

• Exploit or Explore?
• To maximize reward, a learner must exploit the
  knowledge it already has
• Explore an action with small immediate reward,
  but may yield more reward in the long run
• An example Choosing the job
• Suppose you are working at a small company with
  25,000 salary
• You have another offer from an enterprise but
  only start at 12,000
• Keep working on the small company may guarantee
  you have stable income
• Work on an enterprise may have more opportunities
  for promotion, which increase the income in long
  run

25
Undirected Exploration

• Undirected Exploration
• No biased
• purely random
• Eg. ?-greedy exploration
• it explores it chooses equally among all actions
• likely to choose the worst appearing action as it
  is to choose the next-to-best

26
Directed Exploration

• Directed Exploration
• Memorize exploration-specific knowledge
• Biased by some features of the learning process
• Eg. Counter-based techniques
• Favor the choice of actions resulting in a
  transition to a state that has not been
  frequently visited
• The main idea is encourage the learner to explore

• parts of the state space that have not been
  sampled often
• parts that have not been sampled recently

27
Past-success Directed Exploration

• Based on ?-greedy exploration
• Bias to adapt the environment from the learning
  process
• Increase exploitation rate if receives reward at
  an increasing rate
• Increase exploration rate when stop receiving
  reward
• Average discounted reward
• Reflects amount and frequency of received
  immediate rewards
• The further back in time, the less effect on
  average reward

28
Past-Success Directed Exploration

• Average discounted reward defined as
• Apply it on ?-greedy algorithm

where ? ? (0,1 is the discount factor rt the
reward received at time t
29
Gradient Descent Method

• Why use a gradient descent method?
• RL applications use table to store the value
  functions
• Large number of states causes practically
  impossible
• Solution use function approximator to predict
  the value
• Error backpropagation algorithm
• Catastrophic Interference
• cannot learn incrementally in non-stationary
  environment
• acquire new knowledge forget much of its previous
  knowledge

30
Gradient Descent Method
Initialize w arbitrarily and e 0 Repeat (for
each episode) Initialize s Pass s through each
network and obtain Qa a ? arg maxa Qa With
probability ? a ? a random action ? A(s) Repeat
(for each step of episode) e ? ??e ea ? ea
?wQa Take action a, observe reward, r and next
state, s ? ? r Qa Pass s through each network
and obtain Qa a ? arg maxa Qa With probability
? a ? a random action ? A(s) ? ? ? ?Qa w ? w
??e a ? a until s is terminal
where a ? arg maxa Qa means a is set to the
action for which the expression is maximal, in
this case the highest Q ? is a constant step
size parameter named the learning rate ?wQa is
the partial derivative of Qa with respect to the
weights w ? the discount factor e the vector of
eligibility traces ? ? (0, 1 is the eligibility
trace parameter
31
Fuzzy ARTMAP

• ARTMAP - Adaptive Resonancy Theory mapping
  between input vector and output pattern
• a neural network specifically designed to deal
  with the stability/plasticity dilemma
• This dilemma means a neural network isn't able to
  learn new information without damaging what was
  learned previously, similar to catastrophic
  interference

32
Experiments

• Gridworld with non-stationary environment
• Learning agent can move up, down, left or right
• Two gates must pass through one of them from
  start state to goal state
• First 1000 episodes, gate 1 open and gate 2 close
• 1001-5000 episodes, gate 1 close and gate 2 open
• To test how well the algorithm adapt to the
  changed environment

33
Results

• Backpropagation algorithm
• After 1000th episode
• average discounted reward drops rapidly and
  monotonically
• Surges to maximum exploitation
• Fuzzy ARTMAP
• After 1000th episode
• Reward drops in a few episode and goes back to
  high values
• A temporary surge in exploration

34
Planning and Learning
Objectives

• Use of environment models
• Integration of planning and learning methods

35
Models

• Model anything the agent can use to predict how
  the environment will respond to its actions
• Distribution model description of all
  possibilities and their probabilities
• e.g.,
• Sample model produces sample experiences
• e.g., a simulation model, set of data
• Both types of models can be used to produce
  simulated experience
• Often sample models are much easier to obtain

36
Planning

• Planning any computational process that uses a
  model to create or improve a policy

• We take the following view
• all state-space planning methods involve
  computing value functions, either explicitly or
  implicitly
• they all apply backups to simulated experience

Simulated Experience
37
Learning, Planning, and Acting

• Two uses of real experience
• model learning to improve the model
• direct RL to directly improve the value function
  and policy
• Improving value function and/or policy via a
  model is sometimes called indirect RL or
  model-based RL. Here, we call it planning.

38
Direct vs. Indirect RL

• Indirect methods
• make fuller use of experience get better policy
  with fewer environment interactions

• Direct methods
• simpler
• not affected by bad models

But they are very closely related and can be
usefully combined planning, acting, model
learning, and direct RL can occur simultaneously
and in parallel
39
The Dyna-Q Architecture(Sutton 1990)
40
The Dyna-Q Architecture (Sutton 1990)

• Dyna use the experience to build the model (R,
  T), uses experience to adjust the policy and user
  the model to adjust the policy
• For each interaction with environment,
  experiencing lts, a, s, rgt
• use experience to adjust the policy
• Q(s,a) R(s,a) ? r ? MaxaQ(s, a)
  Q(s,a)
• use experience to update a model (T, R) Model
  (s,a) (s, r)
• use model to simulate the experience to adjust
  the policy a ? Rand(a), s ? Rand(s) (s, r) ?
  Model(s, a) Q(s,a) R(s,a) ? r ?
  MaxaQ(s, a) Q(s,a)

41
The Dyna-Q Algorithm
42
Dyna-Q Snapshots Midway in 2nd Episode
43
Dyna-Q Properties

• Dyna algorithm requires about N times the
  computation of Q learning per instance
• But it is typically vastly less than that for
  naïve model-based method
• N can be determined by the relative speed of
  computation and of the taking action
• What if the environment is changed ?
• Change to harder or change to easier.

44
Blocking Maze
The changed environment is harder
45
Shortcut Maze
The changed environment is easier
46
What is Dyna-Q ?

• Uses an exploration bonus
• Keeps track of time since each state-action pair
  was tried for real
• An extra reward is added for transitions caused
  by state-action pairs related to how long ago
  they were tried the longer unvisited, the more
  reward for visiting
• The agent actually plans how to visit long
  unvisited states

47
Prioritized Sweeping

• The updating of the model is no longer random
• Instead, store additional information in the
  model in order to make the appropriate choice of
  updating

• Store the change of each state value ?V(s), and
  use it to modify the priority of the predecessors
  of s, according their transition probability
  T(s,a, s)

s1
s4
? 10
s2
s5
? 5
s3
Priority High Low
48
Prioritized Sweeping
49
Prioritized Sweeping vs. Dyna-Q
Both use N5 backups per environmental interaction
50
Full and Sample(One-Step)Backups
51
Summary

• Emphasized close relationship between planning
  and learning
• Important distinction between distribution models
  and sample models
• Looked at some ways to integrate planning and
  learning
• synergy among planning, acting, model learning

52
RL Recent Development Problem Modeling
Model of environment
Known Unknown
Completely Observable
Partially Observable
53
Research topics

• Exploration-Exploitation tradeoff
• Problem of delayed reward (credit assignment)
• Input generalization
• Function Approximator
• Multi-Agent Reinforcement Learning
• Global goal vs Local goal
• Achieve several goals in parallel
• Agent cooperation and communication

54
RL Application
TD Gammon

• Tesauro 1992, 1994, 1995, ...
• 30 pieces, 24 locations implies enormous number
  of configurations
• Effective branching factor of 400
• TD(?) algorithm
• Multi-layer Neural Network
• Near the level of worlds strongest grandmasters

55
RL Application

• Elevator Dispatching
• Crites and Barto 1996

56
RL Application

• Elevator Dispatching
• 18 hall call buttons 218 combinations
• positions and directions of cars 184 (rounding
  to nearest floor)
• motion states of cars (accelerating, moving,
  decelerating, stopped, loading, turning) 6
• 40 car buttons 240
• 18 discretized real numbers are available giving
  elapsed time since hall buttons pushed
• Set of passengers riding each car and their
  destinations observable only through the car
  buttons

Conservatively about 1022 states
57
RL Application

• Dynamic Channel Allocation Singh and Bertsekas
  1997
• Job-Shop Scheduling Zhang and Dietterich 1995,
  1996

58
Q A
