Other Topics

1

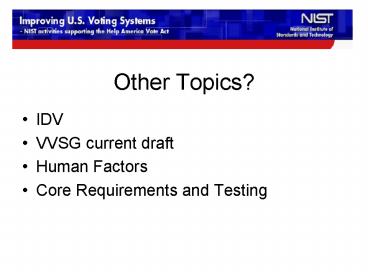

Other Topics?

• IDV
• VVSG current draft
• Human Factors
• Core Requirements and Testing

2
IDV
3
Topics

• IDV Review
• IDV in the EAC VVSG
• IDV Research Issues
• Next Steps

4
Review What is IDV?

• IDV Independent Dual Verification
• Voting systems that create one or more records of
  ballot choices that are
• Also verified by the voter (along with voting
  systems electronic record)
• Once verified, cannot be changed by the voting
  system
• Useful in efficient comparisons with voting
  systems electronic record
• Efficiently handled, resistant to damage,
  accessible
• VVPAT is one example using paper as 2nd record

5
Why is IDV important?

• 2nd record essential for meaningful audits and
  recounts
• 2nd record essential because voting systems are
  computers, which can
• Be very difficult to assess and test for accuracy
• Fail for a myriad of unknown reasons
• Be compromised or attacked

6
EAC VVSG and IDV

• The VVPAT requirements in the EAC VVSG are an
  instantiation of IDV
• IDV discussion contained in appendix D
• Begins with core IDV definitions
  (characteristics)
• Lists more specific definitions for
• Split process
• Witness
• Cryptographic
• Op scan

7
IDV in the marketplace now

• 2 witness systems available
• 4 VVPAT systems (25 states now require a
  verified paper trail)
• Some ballot marking/op scan systems are
  split-process
• 1 cryptographic systems available
• None these systems meet all IDV definitions but
  are mostly in IDV

8
IDV Issues

• Usability of multiple representations in
  comparisons and audits
• Usability for both voters and election officials
• Accessibility of multiple representations
• Interoperability of record formats to facilitate
  3rd party audits, IDV add-ons (e.g., Witness
  devices)

9
Core Requirements and Testing
10
Profiles

• Profile specialization of a standard for a
  particular context, with constraints and
  extensions that are specific to that context.
  (Glossary def. 2)
• Formalize profiles for categories
• Add profiles for supported voting variations and
  optional functions
• Types of independent dual verification
• Defined in conformance clause (Sec. 4.2)
• Extensible (e.g., this states profile)

11
Compliance points

• Identified, testable requirements
• Getting there
• Extricate compound requirements from one another,
  make separate compliance points
• Clarify general requirements via sub-requirements
  that are profile- and/or activity-specific
• Refactor repeating, overlapping requirements

12
Implementation statement

• Vendor identifies profiles to which the system is
  believed to conform
• Applicable test cases are identified by profiles
• Certification is to those profiles only

13
Issues

• Sorting out will take time
• Identification, referencing and indexing of
  compliance points require a robust document
  production system
• Versioning of standard

14
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
  (section 4.2.2)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification
• Test protocols
• Casting, counting, and reporting requirements
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

15
Definition

• Profile (1) Subset of a standard for a
  particular constituency that identifies the
  features, options, parameters, and implementation
  requirements necessary for meeting a particular
  set of requirements. (2) Specialization of a
  standard for a particular context, with
  constraints and extensions that are specific to
  that context.
• (1) ISO 8632 (Computer Graphics Metafile)

16
Profiles in implementation statement

• An implementation statement shall identify
• Exactly 1 profile from group 1
• Exactly 1 profile from group 2
• All applicable profiles from group 3
• Profile group 1 product classes, taxonomy A
• Precinct count
• Central count

17
Structure of profiles

• Profiles form a classification hierarchy
• Profiles may subsume other profiles (e.g.,
  paper-based subsumes marksense and punchcard, and
  all systems subsumes everything)
• Profiles may be declared to be mutually
  exclusive, or not, as appropriate (e.g.,
  paper-based and electronic overlap in the case of
  marksense)
• Constraint in all cases, that which conforms to
  a subprofile also conforms to the subsuming
  profile
• Anything conforming to a profile of a standard
  conforms to that standard

18
The hierarchy so far
Voting systems
Split precincts
IDV

Ranked order voting
- Disjoint -
All those optional features
VVPAT
End-to-end (crypto)
Straight-party voting
- Disjoint -
Witness
Split process
Punchcard
- Disjoint -
DRE
Precinct count
Marksense
Central count
19
Profiles in compliance points

• Restricts applicability of compliance point to a
  precisely specified subset of voting systems
• Requirement 4.4.3.5-1.2  Systems conforming to
  the DRE profile shall maintain an accurate Cast
  Vote Record of each ballot cast.
• Requirement 4.4.2-2.13.1  In systems conforming
  to the Provisional / challenged ballots and DRE
  profiles, the DRE shall provide the capability to
  categorize each provisional/challenged ballot.

20
Profiles in conformity assessment

• Like compliance points, test cases and expert
  reviews are associated with specific profiles or
  combinations of profiles
• Only those conformity assessment activities
  indicated for the profiles claimed in the
  implementation statement are applicable

21
Profiles and traceability

• Using the profiles mechanism, jurisdictions may
  formally define their own specializations of the
  standard, provided that they do not conflict with
  the standard (that which conforms to a subprofile
  must conform to the subsuming profile)
• Conformance to the jurisdictions profile is
  well-defined because the conformance clause is
  included by reference, as are all of the
  applicable compliance points

22
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
  (sections 4.3.1.1 and 4.3.4.1.1)
• Methods for conformity assessment
• Logic verification
• Test protocols
• Casting, counting, and reporting requirements
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

23
What they are

• Mostly, requirements on the form (not function)
  of source code
• Some requirements affecting software integrity,
  implemented as defensive coding practices
• Error checking
• Exception handling
• Prohibit practices that are known risk factors
  for latent software faults and unverifiable code
• Unresolved overlap with STS.

24
Motivation

• Started in 1990 VSS, expanded in 2002, expanded
  more in IEEE P1583 5.3.2b
• TGDC Resolution 29-05, Ensuring Correctness of
  Software Code (part 2)
• Enhance workmanship, security, integrity,
  testability, and maintainability of applications

25
2002 VSS / VVSG 1 status

• Mixture of mandatory and optional
• Vendors may substitute published, reviewed, and
  industry-accepted coding conventions
• Incorporated conventions have suffered from rapid
  obsolescence and limited applicability
• Some mandatory requirements had unintended
  consequences

26
Recommended changes

• Expand coding conventions addressing software
  integrity
• Start with IEEE requirements
• Make defensive coding requirements (error and
  range checking) more explicit (Sec. 4.3.1.1.2)
• Require structured exception handling
• Clarify length limits (modules vs. callable
  units)
• Delete the rest require use of published,
  credible coding conventions

27
Credible industry-accepted

• Coding conventions shall be considered credible
  if at least two different organizations with no
  ties to the creator of the rules or to the vendor
  seeking qualification independently decided to
  adopt them and made active use of them at some
  time within the three years before qualification
  was first sought.

28
Issues (1)

• Definition of credible is problematic
• General prescriptions for how to write code
  versus open-ended expert review
• Performance requirement shall have high
  integrity is too vague, not measurable
• 2002 VSS, P1583 5.3.2b include prescriptions
• STS favors open-ended expert review
• Compromise conservative prescriptions followed
  by STS review

29
Issues (2)

• Public comment, April 14 The NASED Technical
  Committee has previously ruled that assembler
  code is permitted as long as the code meets all
  other requirements. TBD need to get a copy of
  that ruling, determine if it covers tabulation
  code, and if so, why.
• C doesnt have structured exception handling
• Delete integrity requirements, etc. if
  published, credible replacements are found

30
Non-issues

• Assembly language in hardware-related segments
  and operating system software
• Grandfathering of stable code part of general
  grandfathering strategy
• COTS or slightly modified COTS part of COTS
  strategy, driven by security requirements, T.B.D.

31
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification
• Test protocols
• Casting, counting, and reporting requirements
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

32
Conformity assessment overview

• Reviews
• Logic verification
• Open-ended security review
• Accessibility, usability reviews
• Design requirement verification
• Tests
• Test protocols
• Performance-based usability testing
• Environmental tests

33
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification (sections 4.5.2, 5.1.2, 5.3,
  6.3.1)
• Test protocols
• Casting, counting, and reporting requirements
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

34
What it is

• Formal characterization of software behavior
  within a carefully restricted scope
• Proof that this behavior conforms to specified
  assertions (i.e., votes are reported correctly in
  all cases)
• Complements falsification testing

35
Motivation

• TGDC Resolution 29-05, Ensuring Correctness of
  Software Code
• Higher level of assurance than functional testing
  alone
• Clarify objectives of source code review

36
How it works

• Vendor specifies pre- and post-conditions for
  each callable unit
• Vendor proves assertions regarding tabulation
  correctness
• Testing authority reviews, checks the math, and
  issues findings
• Pre- and post-conditions correctly characterize
  the software
• The assertions are satisfied

37
Issues

• Training required
• Limited scope limited assurance unlimited
  scope impracticable
• Overlaps with security reviews

38
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification
• Test protocols (section 6.4)
• Casting, counting, and reporting requirements
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

39
What it is

• General test template
• General pass criteria
• Collection of testing scenarios with
  implementation-specific behavior parameterized or
  abstracted out
• Functional tests, typical case tests, capacity
  tests, error case tests
• Performance-based usability tests might be
  integrated, T.B.D. (Template may differ)

40
Motivation

• TGDC Resolution 25-05, item 4 (test methods)
• TGDC Resolution 26-05, Uniform Testing Methods
  and Procedures
• Improved reproducibility

41
Changes from current

• Augments implementation-dependent, white box
  structural and functional testing
• Raises the baseline level of testing that all
  systems must pass
• Error rate, MTBF estimated from statistics
  collected across run of entire test suite

42
Issues

• Implementation-dependent white box testing poor
  reproducibility, but hardly redundant
• Testing combinations of features requires
  extensive test suite
• Typical case tests need input on what is typical

43
Todays agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification
• Test protocols
• Casting, counting, and reporting requirements
  (sections 4.4.2 and 4.4.3)
• Process model
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

44
Origins

• Mostly derived from 2002 VSS
• Refactored requirements to clarify and reduce
  redundancy
• Separated election administration concerns (best
  practices, Sec. 4.6)
• Added precision

45
Motivation

• TGDC Resolution 25-05, Precise and Testable
  Requirements

46
Significant changes

• In casting and counting, specified functional
  requirements for the many voting variations
  (optional profiles)
• In reporting, significantly revised requirements
  on the content of reports
• Accuracy of reported totals now defined by logic
  model

47
Reporting issues

• Cast, read, and counted three concepts, not two
• Reporting levels tabulator, precinct, election
  district, and jurisdiction (state)
• 2002 VSS unclear on what levels are required
• Generic facility to define arbitrary reporting
  contexts is not required
• Manual / optional processing of ballots with
  write-in votes outside the system,
  unverifiable. Can these possibly conform to the
  write-ins profile?
• Define unofficial

48
Agenda

• Standards architecture (profiles, compliance
  points, formalized implementation statements)
• Software integrity and coding conventions
• Methods for conformity assessment
• Logic verification
• Test protocols
• Casting, counting, and reporting requirements
• Process model (section 4.5.1)
• Performance and workmanship requirements
• Issue paper
• Research papers on VVSG maintenance and
  information sharing
• Future work

49
What it is

• A formal model of the elections process in both
  graphical and textual representations
• An identification of the dependencies among
  activities and objects
• Informative, not normative

50
Motivation

• TGDC Resolution 33-05, Glossary and Voting
  Model
• Complements glossary to further clarify
  vocabulary
• Helps to specify intended scope of requirements

51
Origins

• Review of previous work
• Input from CRT subcommittee
• Reconciliation of conflicting vocabulary and
  models
• Elaboration as needed

52
Language

• Graphical representation is activity diagram as
  defined in Unified Modeling Language version 2.0
• Textual representation is based on Petri Net
  Linear Form

53
Diagram Register voters Input Registration
database original Output Voter
lists Registration database original
-gtltForkNodegt -gt(Register new voters)
-gtltJoinNode jgt, -gt(Update voter
information) -gtltjgt, -gt(Purge
ineligible, inactive, or dead voters)
-gtltjgt ltjgt -gtRegistration database
updated -gt(Generate voter lists) -gtVoter
lists.
54
Issues

• Vocabulary is still evolving
• Probably never match any states processes
  perfectly

55
Accessibility, Usability and Privacy Requirements
56
Accessibility and usability are qualities of a
voting system

• Accessibility refers to the degree to which a
  system is available to, and usable by,
  individuals with disabilities.
• HAVA also includes alternative language access
  for voters with limited English proficiency as
  required by the Voting Rights Act.

• Usability means that voters can cast valid votes
  as they intended, quickly, without errors, and
  with confidence that their ballot choices were
  recorded correctly.
• It also concerns the setup, operation and
  maintenance of voting equipment by poll workers
  and election officials.

57
Voting systems must be usable and accessible for
everyone

• The VVSG usability and accessibility section
  focuses on the voting process, and on voters.
• Future work shouldfocus on other users
• Election officials
• Poll workers

58
Language in HAVA guided our work

• That system be accessible for individuals with
  disabilities, including non-visual accessibility
  for the blind and visually impaired, in a manner
  that provides the same opportunity for access and
  participation (including privacy and
  independence) as for other voters. -- 301
  (a)(3)(A)
• At least one voting system equipped for
  individuals with disabilities must be used at
  each polling place for federal elections held on
  or after January 1, 2006. --. 301 (a)(3)(B).
• And provide alternative language accessibility
  as already required by section 203 of the Voting
  Rights Act. -- 301 (a)(4).

59
Resolutions

• Ballot design, instructions and error messages
  are a critical part of the voting experience.
  They are of particular importance for people with
  cognitive disabilities (8-05)
• Setting performance, rather than design,
  standards will encourage innovation to address
  the complex, interlocking requirements for
  accessibility, functionality, security and trust.
  (5-05)

• Human factors and privacy rely on both having
  well designed systems, and the effective
  deployment of those systems in the polling place
  (3-05)
• Human abilities exist on a wide spectrum. Strong
  universal usability requirements make all voting
  systems not only more usable, but accessible to
  more people. (6-05)

60
Our Practical Approach

• Accessibility requirements were a top priority
  under HAVA (2-05)
• Other human factors and privacy requirements
  cover aspects of accurately capturing indication
  of a voters choice (4-05)
• All requirements involving human interaction must
  ensure that basic usability, accessibility, and
  privacy are maintained. (9-05)
• The standards themselves must be usable. Voting
  system standards should be written in plain
  language understandable by both test experts and
  by voting officials who are not experts in human
  factors or design. (10-05)
• Voting machines must be available to validate
  conformance tests and establish performance
  benchmarks. (11-05)

61
Usability should be part of all design stages
During design and development
Summative testing as part of qualification
For each election
Evaluate the product usability throughout the
development process
Evaluate the finished product against usability
requirements to measure its success against human
performance
Ensure that the ballot design and use of the
system in the polling place continue to meet
requirements
62
Even the best standards have limitations.

• A standard should ensure a base level of
  usability, accessibility, and privacy.
• Good design and election procedures support and
  extend standard requirements

63
VVSG 2.2.7 requirements maintain or upgrade VSS
2002

• Comprehensive accessibility requirements and
  recommendations that point the way to future
  requirements
• First usability requirements for voting systems,
  upgraded from informative appendix
• New privacy requirements focused on the
  voter-equipment interface
• Other elements
• Recommendation that vendors present report of
  summative usability tests for both general and
  accessible voting systems
• Work to clarify ambiguous requirements and fill
  gaps
• Reflect what is readily achievable with current
  technology.
• Some human factors requirements in section on
  VVPAT

64
Research is currently under way at NIST

• Usability performance benchmarks
• Plain language guidance for ballots,
  instructions, error messages
• Guidance for ballot design
• Usability of standards

65
VVSG Section 2.2.7

• 3. Usability
• 3.1 Usability testing
• 3.2 Functional
• 3.3 Cognitive
• 3.4 Perceptual
• 3.5 Interaction
• 4. Privacy
• 4.1 Voting station configuration
• 4.2. Anonymity for alternate formats

• 1. Accessibility
• 1.1 General accessibility
• 1.2 Visual
• 1.3 Dexterity
• 1.4 Mobility
• 1.5 hearing
• 1.6 speech
• 1.7 Cognitive
• 2. Alternate languages

66
VVSG current draft
67
Human Factors VVSG

• 4 Areas
• Accessibility
• Usability
• Limited English Proficiency
• Privacy
• Based on current state of the art

68
Human Factors Setting the stage for VVSG 2007

• Require more advanced accessibility but still in
  industry state of the art
• Synchronized audio and video
• Performance measures for usability

69
VVPAT

• VVPAT not mandatory. These requirements are for
  States that choose to use VVPAT.
• Requirements address
• Operations
• Auditability
• Privacy

70
Independent Dual Verification Setting the stage
for VVSG 2007

• Multiple records of ballots for verification
• Several types currently being studied
• Split process
• Witness
• End-to-end (cryptographic)
• VVPAT

71
Wireless

• Control identify usage
• Encrypt and authenticate
• Function without wireless
• Protect against wireless-based attack

72
Software Distribution Setup Validation

• Help ensure correct version of voting software is
  used
• Help ensure voting software is set up correctly
• Use National Software Reference Library
  www.nsrl.nist.gov
