DATABASES AND DATA WAREHOUSES

1

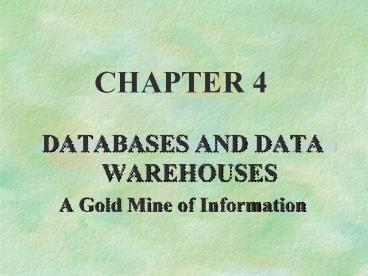

CHAPTER 4

• DATABASES AND DATA WAREHOUSES
• A Gold Mine of Information

2
Opening case Using database and data warehouse
instead of shopping carts

• Mervyn Co.
• Situations
• spend hours calculating
• Solutions
• Data warehouse---gtdata mining tool
• results
• 10 time gathering data , 90 acting
• look on line and see product info. by
  units,dollars,single store, season,region, zone
• less than 1 minute versus an hour

3
Today, Organizations Need...
Introduction
4-2

• Information to compete effectively
• Information just to stay alive in the information
  age
• Information organized in such a way that you can
  easily and quickly get to it
• Information-processing tools that help you work
  with information

4
YOUR FOCUS IN THIS CHAPTER
Introduction
4-3

• The Difference Between Logical and Physical Views
  of Information
• Databases and Database Management Systems
• How You Can Develop Database Applications
• Data Warehouses and Data Mining Tools

5
THREE THINGS ORGANIZATIONS DO WITH INFORMATION
Information Revisited
4-4

• 1.Process information in the form of transactions
• 2.Use information to make a decision
• 3.Manage information while its used

6
PROCESSING INFORMATION IN THE FORM OF TRANSACTIONS
Information Revisited
4-5

• Such as payroll processing, order processing, and
  handling your registration requests for classes.
• This is called ONLINE TRANSACTION PROCESSING
  (OLTP) - the gathering of input information,
  processing that information, and updating
  existing information to reflect the gathered and
  processed information.
• Operational databases and DBMS support OLTP.

7
USING INFORMATION TO MAKE A DECISION
Information Revisited
4-6

• For answering such questions as How many
  senior-level marketing majors have not taken
  statistics?
• This is called ONLINE ANALYTICAL PROCESSING
  (OLAP) - the manipulation of information to
  support decision making.
• H-E-B Grocery Co.
• Data warehouses support OLAP.

8
MANAGING INFORMATION WHILE ITS USED
Information Revisited
4-7
Bank of American 1986 15GB 5 times a day
2430 for each
2000 800GB 2000times daily 24

• Tasks of managing information
• Determining who can view or use information
• Specifying how to back up information
• Identifying what storage technologies to use

Most importantly, managing information includes
organizing it so that people can logically use it
without having to know anything about its
physical structure. The difference between
logical and physical is key.
9
Information Revisited
4-8

• In managing information, physical deals with the
  structure of information as it resides on various
  storage media.
• Logical deals with how knowledge workers view
  their information needs, and includes such terms
  as
• CHARACTER - our smallest unit of information.
• FIELD - group of related characters.
• RECORD - group of related fields.
• FILE - group of related records.
• DATABASE - group of logically associated files.
• DATA WAREHOUSE - information from many databases.

10
DATABASE
Databases
4-9
a collection of information that you organize and
access according to the logical structure of that
information.

• A database is actually composed of two parts
• 1. the information itself
• the files that are logically associated
• 2. the logical structure of the information
• called the data dictionary

11
A Database Is a Collection of Information
Databases
4-10

• Most databases contain two or more files with
  related information.
• The Inventory database (Figure 4.4, page 125)
  contains two files - Part and Facility.
• These two files are logically related because
  parts are stored in facilities and because you
  would use both of these files to manage your
  inventory.

12
A Database Contains a Logical Structure
Databases
4-11

• You organize and access a database by its logical
  structure, not its physical position.
• DATA DICTIONARY - contains the logical structure
  of information in a database.
• The data dictionary contains the logical
  properties that describe information in a
  database.
• See Figure 4.5 (page 126) for the data dictionary
  of the Percentage Markup field in the Inventory
  database.

13
A Database Has Logical Ties Among the Information
Databases
4-12

• A PRIMARY KEY is a field in a database file that
  uniquely describes each record.
• A FOREIGN KEY is a primary key of one file that
  also appears in another file. So, foreign keys
  specify how files are logically related.
• For example, the Part and Facility files are
  logically related. So, in Figure 4.4 you can see
  that Facility Number (the primary key for the
  Facility file) exists in the Part file (where
  its a foreign key).

14
A Database Contains Built-in Integrity Constraints
Databases
4-13

• An INTEGRITY CONSTRAINT is a rule that helps
  assure the quality of the information in a
  database.
• A registration database at your school includes
  integrity constraints concerning prerequisites
  for certain classes.
• Our Inventory database includes an integrity
  constraint that says a part in the Part file
  cannot be assigned to a facility that does not
  exist in the Facility file.
• Eg Ritz-Carlton guest preference database

15
DATABASE MANAGEMENT SYSTEM (DBMS)
Database Management Systems
4-14
the software you use to specify the logical
organization for a database and access it.

• A DBMS contains 5 software components
• 1. DBMS engine
• 2. Data definition subsystem
• 3. Data manipulation subsystem
• 4. Application generation subsystem
• 5. Data administration subsystem
• see figure4.6

16
DBMS ENGINE--Logical to physical bridge most
important
DBMSs
4-15
accepts logical requests from the various other
DBMS subsystems, converts them to their physical
equivalent, and actually accesses the database
and data dictionary as they exist on a storage
device.

• Recall that
• PHYSICAL VIEW deals with how information is
  physically arranged, stored, and accessed on some
  type of secondary storage device.
• LOGICAL VIEW focuses on how you need to arrange
  and access information to meet your particular
  business needs.

17
DB and DBMS provide two advantages in separating
logical from physical view of info.

• DBMS handles all physical tasks---gtyou can
  concentrate solely on your logical info. Needs
• different knowledge worker logically view info.
  in different ways


18
DATA DEFINITION SUBSYSTEM-defining the logical
structure of a database
DBMSs
4-16
helps you create and maintain the data dictionary
and define the structure of the files in a
database.

• You use this subsystem to define the information
  logical structure or properties when you first
  create a database.
• Once you created a database, you use this
  subsystem to define new fields, delete fields, or
  change field properties.
• Figure 4.5 (page 126) contains this subsystem
  screen for the Part file.

19
Logical Structures(properties)

• Name
• type
• form
• default value
• validation rule
• Is an entry required?
• Can there be duplicates?

20
DATA MANIPULATION SUBSYSTEM --Mining and changing
info. in a database
DBMSs
4-17
helps you add, change, and delete information in
a database and mine it for valuable information.

• This subsystem is most often the primary
  interface between you as a user and the
  information contained in a database.
• Tools in this subsystem include views, report
  generators, query-by-example tools, and
  structured query language.

21
DATA MANIPULATION TOOLS
DBMSs
4-18

• VIEW - allows you to see the content of a
  database file, make whatever changes you want,
  perform simple sorting, and query to find the
  location of specific information. See Figure 4.7
  page 137.
• REPORT GENERATOR - helps you quickly define
  formats of reports and what information you want
  to see in a report. See Figures 4.8 and 4.9 page
  138.

22
DATA MANIPULATION TOOLS
DBMSs
4-19

• QUERY-BY-EXAMPLE (QBE) TOOL - helps you
  graphically design the answer to a question.
  Figure 4.10 (page 138) shows the QBE for
  displaying the names and phone numbers of
  facility managers in charge of parts that cost
  more than 10.
• STRUCTURED QUERY LANGUAGE (SQL) - a standardized
  fourth-generation language found in most database
  environments. SQL is the same as QBE, except
  that you perform a query by creating a
  statement(sentences-based) instead of pointing,
  clicking, dragging(graphics-based).

23
APPLICATION GENERATION SUBSYSTEM
DBMSs
4-20
contains facilities to help you develop
transaction-intensive applications. This
subsystem includes

• Tools for creating data entry screens (See Figure
  4.12 page 139 for an example)
• Programming languages specific to a particular
  DBMS
• Interfaces to commonly used programming languages
  that are independent of any DBMS.

24
DATA ADMINISTRATION SUBSYSTEM
DBMSs
4-21
helps you manage the overall database environment
by providing facilities for

• Backup and recovery
• Security management
• Query optimization
• Reorganization
• Concurrency control
• Change management

Team work Refining information privileges during
University Registration
Project on your own DBMS Support for OLTP,OLAP
and information management
25
Which database model to adopt?

• hierarchical
• network
• relational --the most widely used
• object-oriented--the newest

26
THE RELATIONAL DATABASE MODEL
Database Models
4-22
a database model that uses a series of
two-dimensional tables or files to store
information.

• This is the most popular model.
• Each table is called a RELATION.
• A relation contains information about a
  particular ENTITY CLASS (a concept - people,
  places, or things - about which you wish to store
  information and that you can identify with a
  unique key). Instance is an occurrence of an
  entity class that can be uniquely described

27
Database Models
4-23

• Figure 4.14 (page 144) shows a relational
  database for a video rental store.
• The entity classes are Customer, Video, Video
  Rental, and Distributor.
• Notice how these tables are related to each other
  through the use of foreign keys.
• In the Video Rental relation, youll find a
  primary key that uses more than one one field to
  create a unique description. This is called a
  COMPOSITE PRIMARY KEY.
• A primary key that uses only one field is called
  an ATOMIC PRIMARY KEY.
• Eg Palo Alto Childrens hospital

28
THE OBJECT-ORIENTED (O-O) DATABASE MODEL
Database Models
4-24
a database model that brings together, stores,
and allows you to work with both information and
procedures that act on the information.

• An OBJECT-ORIENTED DATABASE MANAGEMENT SYSTEM
  (O-O DBMS) is the DBMS software that allows you
  to develop and work with an O-O database.

29
Database Models
4-25

• This model takes advantage of the concept of an
  OBJECT - a software module containing information
  that describes an entity class along with a list
  of procedures that can act on the information
  describing the entity class.
• Figure 4.15 (page 146) shows the same video
  rental store using the O-O database model.
• Notice that the objects (entity classes) - which
  include Customer, Video Rental, Video, and
  Distributor - contain both information and
  procedures for working with that information.
• Advantages(key features) See Appendix C for more
  on objects
• more closely models how an organizations works
• reuse

30
DEVELOPING YOUR OWN DATABASE
Developing Databases
4-26

• Being able to develop your own database is a part
  of knowledge worker computing.
• Building a database for your personal needs
  includes the following 4 steps
• 1. Defining entity classes and primary keys
• 2. Defining relationships among entity classes
• 3. Defining information (fields) for each
  relation
• 4. Using a data definition language to create the
  database

31

• You own a small business and are interested in
  tracking employees by the department in which
  they work, job assignment, and the number of
  hours assigned.
• Each of your employees can be assigned to only
  one department, but a department may have many
  employees (a department, however, may not have
  any employees assigned to it). Each employee can
  be assigned to any number of jobs and a job can
  have many employees assigned to it, but its not
  necessary that any employees be assigned to a
  certain job.
• Follow along as we build the database to support
  the report in Figure 4.16 on page 148.

32
1 - DEFINING ENTITY CLASSES AND PRIMARY
KEYS--the most important
Developing Databases
4-27

• From the report in Figure 4.16, you can identify
  the entity classes as Employee, Department, and
  Job.
• Now, for each entity class, you must define a
  primary key that provides a unique description.
  These include
• Employee entity class - Emp ID (e.g., 2345 for
  Smith)
• Department entity class - Dept (e.g., 15)
• Job entity class - Job (e.g., 14 for Acct)

33
2 - DEFINING RELATIONSHIPS AMONG ENTITY CLASSES
Developing Databases
4-28

• For this step, use an ENTITY-RELATIONSHIP (E-R)
  DIAGRAM, a graphical method of representing
  entity classes and their relationships.
• See Figure 4.17 (page 148) for the initial E-R
  diagram of our database and a listing of E-R
  diagram symbols.

34
Developing Databases
4-29
EMPLOYEE
DEPARTMENT
M1

• An Employee must be assigned to a Department.
• An Employee cannot be assigned to more than one
  Department.
• A Department may have many Employees assigned to
  it.
• A Department is not required to have any
  Employees assigned to it.

35
Developing Databases
4-30

• After building the initial E-R diagram, you must
  follow the process of normalization.
• NORMALIZATION is a process of assuring that a
  relational database structure can be implemented
  as a series of two-dimensional tables.
• Normalization includes the following 3 steps
• 1.Eliminate repeating groups or MM relationships
• 2.Assure that each field in a relation depends
  only on the primary key of that relation
• 3.Remove all derived fields from the relations.

36
Developing Databases
4-31

• The first rule of normalization states that no
  MM relationships can exist.
• There is an MM between Employee and Job.
• Find repeating ways in two ways.
• You eliminate this by creating an INTERSECTION
  RELATION - a relation you create to eliminate a
  repeating group.
• An intersection relation will have a composite
  primary key that consists of the primary key
  fields from the two intersecting relations.
• In Figure 4.18 (page 150), we created an
  intersection relation called Employee-Job to
  eliminate the MM relationship.

Teamwork Building an E-R Diagram for the video
rental store
37
3 - DEFINING INFORMATION (FIELDS) FOR EACH
RELATION
Developing Databases
4-32

• In this step, you follow rules 2 and 3 of
  normalization.
• Your goal here is two-fold
• 1.Make sure that the information in each relation
  is indeed in the correct relation
• 2.Make sure that the information cannot be
  derived from other information.

38
Developing Databases
4-33

• To determine if information is in the correct
  relation, ask
• does this piece of information depend only on the
  primary key for this relation?
• If the answer is yes, the information is in the
  correct relation.
• In the Employee relation (Figure 4.20 page 152),
  we currently store Dept Sup. Does Dept Sup
  depend only on Emp ID?
• The answer is no - Dept Sup depends on Dept, so
  it should be in the Department relation.

39
Developing Databases
4-34

• Derived information - information that can be
  mathematically determined from other information
  - should not be stored in your database.
• For example, Emp is a field in the Department
  relation.
• However, we can simply count the number of
  occurrences of each Dept in the Employee relation
  and determine the number of employees.
• So, we remove Emp from the database.

40
4 - USING A DATA DEFINITION LANGUAGE TO CREATE
THE DATABASE
Developing Databases
4-35

• The final step is to actually create the
  relations you identified in steps 1-3.
• You do this with a data definition language.
• This step includes
• Developing a data dictionary
• Defining the various relations
• Defining primary keys and relationships

41
(No Transcript)
42
(No Transcript)
43
DATA WAREHOUSE and DATA MINING TOOLS

• question such as
• how many size 8 shoes did we sale last month
  in Southeast and Southwest region,compared with
  the same months over the last 5 years?
• For your organization to succeed (to
  survive),users must have
• 1) a way to easily develop the logical structure
  of such questions
• 2) the needed information presented to them
  quickly without sacrificing the speed of
  operational systems and databases

44
DATA WAREHOUSE
Data Warehouses
4-36
a logical collection of information - gathered
from many different operational databases - that
supports business analysis activities and
decision-making tasks. Data warehouses

• are a logical extension of databases
• support OLAP
• are among the newest and hottest buzz words and
  concepts in the IT field.
• Represent a different way of thinking about
  organizing and managing information

45
DATA WAREHOUSE FEATURES
Data Warehouses
4-37

• Data warehouses combine information from
  different databases (See Figure 4.22 )
• Data warehouses are multi-dimensional
• As opposed to 2 dimensions in the relational
  model
• containing lays of columns and rows,multidimension
  al representation of information is Often
  called hyper cubes (See Figure 4.23) summary of
  information,
• a data dictionary maintain the logical structure
  of information and two important
  characteristics(origin and method)
• Data warehouses support decision making
• While databases support OLTP, data warehouses
  support OLAP

46
DATA MINING TOOLS
Data Warehouses
4-38
the software tools you use to query information
in a data warehouse.

• Data mining tools includes(see figure 4.24)
• QUERY-AND-REPORTING TOOLS - QBE tools, SQL, and
  report generators.
• INTELLIGENT AGENTS - various artificial
  intelligence tools that form the basis for
  information discovery in OLAP.
• MULTIDIMENSIONAL ANALYSIS (MDA) TOOLS -
  slice-and-dice techniques that allow you to view
  multidimensional information from different
  perspectives.
• Eg North Memorial Medical Center
  ---ForestTrees

47
IMPORTANT CONSIDERATIONS IN USING A DATA WAREHOUSE
Data Warehouses
4-39

• Do you need a data warehouse?
• Expense,no need(ROLAP),support-strapped..
• Do you already have a data warehouse?
• Who will the users be?
• Mastercard
• How up-to-date must the information be?
• What data mining tools do you need?

48
MANAGING THE INFORMATION RESOURCE
Managing Information
4-40

• How will changes in technology affect organizing
  and managing information?
• Environment Canadas Ice Services
• What types of database models and databases are
  most appropriate?
• Functional requirements types of database
• Who should oversee the organizations
  information?
• CEOData administration database
  administration

49
OVERSEEING YOUR ORGANIZATIONs INFORMATION
Managing Information
4-41

• CHIEF INFORMATION OFFICER (CIO) is the IT
  manager who directs all IT systems and personnel
  while communicating directly with the highest
  levels of the organization.
• DATA ADMINISTRATION plans for, oversees the
  development of, and monitors the information
  resource.
• DATABASE ADMINISTRATION is responsible for the
  more technical and operational aspects of
  managing information in databases.

50
MANAGING THE INFORMATION RESOURCE
Managing Information
4-42

• Is information ownership a consideration?
• What are the ethics involved in organizing and
  managing information?
• How should databases and database applications be
  developed and maintained?

51
TO SUMMARIZE
4-43

• How we view information
• The physical view of information deals with how
  information is physically arranged, stored, and
  accessed on some type of secondary storage
  device.
• The logical view of information focuses on how
  you need to arrange and access information to
  meet your particular business needs.
• A database is a collection of information that
  you organize and access according to the logical
  structure of that information.
• The data dictionary contains the logical
  structure of information in a database.

52
TO SUMMARIZE
4-44

• A database management system is the software you
  use to specify the logical organization for a
  database and access it.
• Popular database models include the relational
  model and the object-oriented model.
• The four steps of developing a personal database
  application include
• 1. Define entity classes and primary keys
• 2. Define relationships among entity classes
• 3. Define information (fields) for each relation
• 4. Use a data definition language to create the
  database

53
TO SUMMARIZE
4-45

• Data warehouses are a logical collection of
  information - gathered from many different
  operational databases - that supports business
  analysis activities and decision-making tasks.
• Data mining tools - the software tools you use to
  query information in a data warehouse - include
  query-and-reporting tools, intelligent agents,
  and multidimensional analysis (MDA) tools.
