Title: Humerus


1

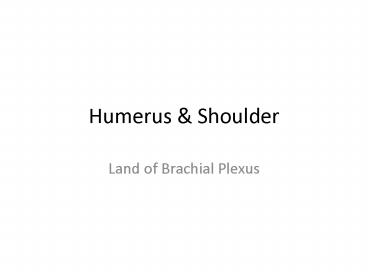

Humerus Shoulder
  • Land of Brachial Plexus

2
Brachial Plexus Straddles the Shoulder and
Humerus
3
External appearance
Infraspinatus
Middle Deltoid
Pec Major
Triceps
Post. Deltoid
Teres Major
Biceps
Latissiums dorsi
Ant. Deltoid
4
Rip off the skin
5
2 Layer
Biceps LH
Subscap
Pect Minor
Biceps SH
Coracobrachialis
Serratus Ant
6
2 Layer
Supraspinatus
Infraspinatus
Teres minor
Teres major
Lat
Long Head Triceps
Lateral Head Triceps
7
Shoulder
8
Bones Ligaments
9
Humerus
10
Diagram Brachial Plexus
11
Triangles and Spaces
12
Triangles and Spaces
  • Quadrangular Space
  • Borders Humerus, Tri-LongHead, Teres Major,
    Teres Minor
  • Contents Axillary nerve, posterior humeral
    circumflex artery
  • Triangular Space
  • Borders Teres Major, Teres Minor, TriLongHead
  • Contents Circumflex Scapular Artery
  • Triangular Interval
  • Borders Humerus, Tri-LongHead, Teres Major
  • Contents Radial Nerve, Deep Brachial Artery

13
Axillary Nerve
14
Injuries the Brachial Plexus
  • Proximal Humerus Fx
  • Rotator cuff tear
  • Others of interest
  • Bursitis
  • Impingement
  • Clavicle Fx
  • AC Separation
  • GH Dislocation
  • Hills-Sachs/Bankart
  • Biceps Tendonitis
  • Biceps Tendon Rupture
  • SLAP

15
Anatomical vs. Surgical Neck
  • Anatomical
  • through the physis
  • Surgical
  • weak point

16
Axillary Nerve
17
Surgical Neck Fx
  • Trauma
  • Axillary/Radial Nerve injury
  • Neer classification
  • based on parts(shaft, head, GT, LT) displacement
    gt10mm or gt45 degree angulation. (Neer CS II,
    JBJS 197052A1077).
  • The neck-shaft inclination angle averages 145
    degrees. The humeral head is retroverted an
    average of 30 degrees.
  • Primary blood supply to humeral head
  • Ascending (arcuate) branch of anterior humeral
    circumflex artery
  • Runs in the bicipital groove. (Jaberg, JBJS
    74A5081992) Less significant supplies include
    the posterior humeral circumflex artery and small
    vessels entering through the rotator cuff
    insertions.

18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
Rotator Cuff Tear
  • Supraspinatus is most common
  • Etiology Impingement (75)
  • Instability (15)
  • Trauma (10)Wheeless
  • ROM is reduced
  • Supraspinatus is first 15 deg of abduction of
    shoulder
  • OBriens, Neer

22
Bursitis
23
Impingement
24
Acromion Types
25
Impingement Evaluation
  • Impingement Sign (Neer)
  • Forward Flex greater than 90 deg.
  • Hawkins Sign
  • Forward Flex 90 deg, elbow 90 deg., IR
  • OBriens
  • Forward Flex 90 deg, max IR, Ad flex
  • XR Trauma series then MRI

26
(No Transcript)
27
Clavicle Fx
28
Clavicle Fx
29
AC Separation
30
GH Dislocation
31
GH Dislocation
  • TUBS (Trauma, Unilateral, Bankart, Surgery)
  • gt90 are anterior
  • Jobe (relocation) test 90 deg abd, full ER,
    posterior force on humeral head relives
    apprehension
  • XR Trauma Series (AP,L, Y)
  • Lateral can be done with w/ Axillary View
  • AMBRI (Atraumatic, Multidirectional, Bilateral,
    Rehab-responsive, Inferior capsule Repair)
  • XR Trauma Series
  • Sulcus Sign Arm to side, inferior traction
    increased acromiohumeral sulcus

32
Bankart
  • Anterior-Inferior glenoid tear

33
Hills-Sachs
  • Posterior Lateral depression fx of humeral head
    from impact into Glenoid

34
SLAP
  • Superior Labrum, Anterior to Posterior
  • Repeated overhead motion, around biceps tendon
  • OBriens is the best test

35
Biceps Tendonitis/Subluxation
  • Speed Test Resistance to Forward Flexion
  • Yergason Resistance to Supination

36
Biceps Tendon Rupture
  • Proximal Long Head of the Biceps

37
Take Home
  • Websites
  • www.wheelessonline.com
  • www.eorif.com
  • Supraspinatus is the most commonly torn Rotator
    Cuff muscle
  • Watch for Axillary and Radial Nerve injury in
    surgical neck fx
  • Biceps Tendonitis is pretty common
