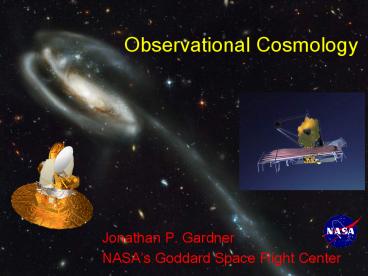

Observational Cosmology

1
Observational Cosmology

• Jonathan P. Gardner
• NASAs Goddard Space Flight Center

2
Wilkinson Microwave Anisotropy Probe
Gary Hinshaw, WMAP Co-I
University of Edinburgh, September 3, 2004
3
Hubble Space Telescope
4
James Webb Space Telescope
5
Astronomical Search For Origins
First Galaxies
Big Bang
Life
Galaxies Evolve
Planets
Stars
6
Beginnings are Important (Origins)
David Jonathan Gardner, June 16, 2005
David Jonathan Gardner, June 16, 1998
... So Are Changes(Evolution)
7
The First 13.7 Billion Years
Dark Matter/Dark Energy
Galaxies Evolve
Planets, Life Intelligence
First Galaxies
Atoms RadiationCMB
Particle Physics
Big Bang
Now
3 minutes
380,000 years
400 million years
1 billion years
7 billion years
13.7 billion years
8
Edwin P. Hubble(the man, not the telescope)

• Classification of Galaxies
• The Spiral Nebulae are Island Universes
• The Universe is Expanding

Edwin P. Hubble, 1889-1953
Which is further away?How can you tell?
9
The Hubble Sequence

• Hubble classified nearby (present-day) galaxies
  into Spirals and Ellipticals.

• The Hubble Space Telescope extends this to the
  distant past.

10
Measuring Distances
Cepheid Variable Stars known period-luminosity
relation.
Astronomers can measure distances if they know
the intrinsic luminosity.
Suitable for nearby galaxies
Supernovae known maximum luminosity. Suitable
for distant galaxies.
11
Hubble Discovers the Universe
Cepheids in the Andromeda galaxy showed it is 8
times further than the most distant star in our
Galaxy. ? Island Universes!
Hubble at Mount Wilson telescope
Planetary Nebula are within our Galaxy.
12
Doppler Shift
13
Hubbles Law
Velocity in Kilometers per Second
14
Looking Backwards in Time
Far, Far Away means Long, Long Ago

• Distance Light travel time Seeing the past.

1 Billion light years away 1 Billion years ago
Time
1 Million light years away, 1 Million years ago
Distance
Here Now
15
The First Nano-Second
16
How much of the Universe can we see?
17
The Horizon Problem
Why is the cosmic microwave background
temperature so uniform on scales 2?
T
T
O (10
)
-5


1
2
T
T
T
T
1
2
1
2
D c/H
o
q 2

MAP990008
18
The Flatness Problem
Why is the universe anywhere close to W 1 now?

0
W 1 is an unstable stationary point.

0
Density 1ns after BB
447,225,917,218,507,401,284,015 gm/cc
Scale Factor a(t)
447,225,917,218,507,401,284,016 gm/cc
447,225,917,218,507,401,284,017 gm/cc
0
5
10
t Gyr
MAP990007
19
Curved Space-Time
Flat, or Euclidean Space
Negative Hyperbolic Space
Positive Spherical Space
3D Figures by Stuart Levy of the University of
Illinois, Urbana-Champaign and by Tamara Munzer
of Stanford University for Scientific American.
2D Figures by Ned Wright, UCLA
20
Inflation and a Flat Universe
21
The Structure Problem
Clumpy distribution
of galaxies -
how did this happen?
Smooth 3K
Cosmic microwave
background radiation
MAP990012
22
Inflation solves the problems
Later, the regions re-enter the horizon.Quantum
fluctuations become galaxies
Before Inflationcausally connected quantum
fluctuations.
After Inflation,previously connected regions are
outside the horizon.
Predictions Universe is flat. Fluctuations are
correlated on different scales.
23
The First Three Minutes
24
Synthesis of Light Elements

• Light elements, D, He, Li produced 3 minutes
  after Big Bang.
• One free parameter in predicted abundances
  baryon/photon ratio
• (note baryons atoms)
• Baryon/photon ratio now measured by CMB
  (discussed later).
• Predicted abundances may now be confronted with
  observed abundances (grey boxes). Some tensions.

25
The First 380,000 Years
Wayne Hu and Martin White, Scientific American,
February 2004
26
Why Bright Clumps?Remnants of Primordial
Oscillations
Gravity tries to make matter fall into potential
wells
Radiation pressure pushed back...
Oscillations results
Imprint of event imparted on photons...
27
Sound Waves in the Plasma
28
Baby Picture of the Universe
29
WMAP shows the Universe is Flat
Dark Matter
Baryons
Flatness
30
The First 400 Million Years
3s
2s
Cooling with atoms
1s
Cooling with H2
Barkana Loeb 2001, Physics Reports, 349, 125
31
The First Galaxies

• What did the first galaxies to form look like?
• They are very distant, and very faint.

32
Infrared Light

• Light from the first galaxies is redshifted from
  the visible into the infrared.

• Most of the Suns energy is visible light

• Infrared is heat radiation

33
Deepest View(s) of the Universe

• 1995 Hubble Deep Field
• 10 days exposure, small area
• 1998 Hubble Deep Field South
• Repeat in another field
• 2003 Great Observatories Origins Deep Survey
• 30x area
• infrared with Spitzer, X-ray with Chandra
• 2004 Hubble Ultra-Deep Field
• 30 days exposure, more sensitive camera
• 1996-2006- Follow-up observations

Hubble Ultra Deep Field
34
Hubble Ultra Deep Field
35
Finding distant galaxies

• UV radiation shortward of Lyman limit at 912Å is
  absorbed by inter-galactic medium.
• This break is redshifted through successive
  filters

• Visible light technology (CCDs) ends at 1
  micron, so finding galaxies at z6 requires
  infrared.

36
History of star-formation in the Universe
Star-formation density
Bouwens et al. 2005, astro-ph/0509641
37
Prospects for future study at high-z

• Hubble (2.4m diameter warm telescope)
• Reaches to z6, with claims to 7 or 8.
• New camera to be installed in next servicing
  mission may reach to magnitudes of 28.5 (15 nJy)
  in the NIR.
• No longer has sensitive spectroscopic capability
  in opt-NIR.
• Spitzer (0.85m diameter cold telescope)
• Reaches to z6 (same galaxies as HST).
• Reaches magnitudes of 26.6 in near- to mid-IR.
• Ground-based observations (10m warm)
• Limited by atmosphere

38
How to win at Astronomy
1010
Photographic electronic detection
108
Telescopes alone
HST
CCDs
Big Telescopes with Sensitive Detectors in Space
106
Sensitivity Improvement over the Eye
Photography
1796
1926
104
1665
102
1610
Rosses 72
Mount Wilson 100
Mount Palomar 200
Soviet 6-m
Shorts 21.5
Herschells 48
Slow f ratios
Huygens eyepiece
Galileo
1600
1700
1800
1900
2000
Adapted from Cosmic Discovery, M. Harwit
Year of observations
39
HST vs. JWST - temperature
-225 Celsius,-370 Fahrenheit
Room Temperature
40
HST vs. JWST - orbit
How will JWST get there?
375 miles up
Second Lagrange Point,1,000,000 miles away
Ariane 5
41
HST vs. JWST - size
How do you put a 6.5 meter mirror in a 5 meter
rocket?
2.4 meter diameter
6.5 meter diameter
42
The First 1 Billion Years
43
When was re-ionization?
Fan et al. 2001, AJ, 122, 2833
Fan et al. 2001, AJ, 122, 2833
Kogut et al. 2003, ApJS, 148, 161
44
The First 7 Billion Years
M81 by Spitzer
45
Distant Galaxies are Train Wrecks

• Trace construction of Hubble sequence

• How do train wrecks become spirals and
  ellipticals?

By Merging!
46
Galaxy Mergers
47
The Last 7 Billion Years
48
(No Transcript)
49
The Next 20 Years

• What is the cause of inflation?
• What is the dark energy?

In other words

• How did the Universe begin?
• How will it end?

50
Can We Prove Inflation?

• Gravity waves propagating during inflation leave
  a mark on the polarization of the CMB.
• CMB Polarization mission
• Currently being studied.

51
What is the Dark Energy?

• Hypothesized by Einstein, discovered in 1998,
  confirmed in 2003.
• 3 potential Nobel Prizes
• Cosmological Constant breaks standard model of
  particle physics
• Quintessence means new physics
• Modification of General Relativity
• NASA-DOE Joint Dark Energy Mission
• Currently being studied.

52
Observational Cosmology

• Jonathan P. Gardner
• NASAs Goddard Space Flight Center
