Title: TMT IWG


1

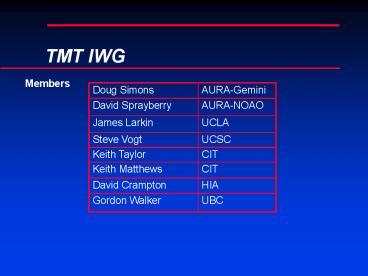

TMT IWG
  • Members

2
IWG Charge (L. Stepp, Oct 30, 2003)
  • Develop plans for all TMT instrument development
    activities including initial plans for interim
    activities from November 2003 through March 2004,
    based on the guidelines listed in Attachment 1
  • Assess impact of instrument requirements and
    designs on the telescope and adaptive optics
    systems
  • Coordinate all TMT Instrument development
    activities
  • Work closely with the Adaptive Optics Working
    Group
  • Advise the Science Advisory Committee regarding
    instrumentation issues
  • Provide periodic progress reports to the ISG, as
    requested

3
IWG Meetings
  • Telecons every 1-2 weeks since Nov
  • Two physical meetings
  • Tucson, Dec 16, 2003
  • Santa Cruz, Mar 17, 2004
  • Joint meetings with SAC
  • Tucson, Dec 17, 2003 (AO issues)
  • UCLA, Jan 13, 2004 (MIR issues)
  • UCSC, Mar 18, 2004 (WFOS HROS)
  • Vancouver, Apr 26, 2004 (MCAO MOAO)

4
Global Comments
  • WFOS
  • Larger f/ratios ( f/15) tend to limit WFOS field
    size
  • Largest field (all-reflective) WFOS instruments
    prefer RC
  • But an attractive (albeit smaller field)
    all-refractive design prefers Gregorian
  • Some other instruments may be just as problematic
    (or be impacted by telescope design) as WFOS,
    e.g.,
  • MIR
  • ExAO instrument
  • MOAO
  • Some simple, non AO, instruments should be built
    for first light
  • to produce science in poor seeing and full moon
    conditions
  • Need to consider detector procurement early
  • potentially huge gains to be realized

5
MIR - Why Its So Hard
  • The atmosphere, even at the best ground based
    sites, presents major challenges
  • Telescope emissivity dominates in the
    scientifically fruitful 10 µm window
  • The 20 µm window is mostly closed
  • Imaging requires chopping
  • not considered further
  • not in SRD
  • see Simons Sprayberry slides from Jan 13

Telescope emissivity ? 10 ? 3
Emission
Wavelength (µm)
Transmission
Wavelength (µm)
Figure courtesy Univ. of Florida
6
MIR Telescope Optical System Low emissivity
essential
  • Cass preferred
  • Slow beam preferred
  • Baffles need to be designed so they cannot be
    seen from instruments perspective
  • Change baffles between optical/IR configurations?
  • Narrow secondary support structure to minimize
    diffraction component in background
  • M2 supports and drive electronics are hidden
    behind mirror and cooled via water/power lines
    that fit behind vanes
  • Undersized secondary, preferably with central
    hole so imager views cold sky
  • Secondary acts as entrance pupil in the optical
    system

Old NIRI/Gemini Pupil Image
7
MIR Coatings Cleaning
  • Low emissivity telescope coatings required
  • Currently 4 emissivity on G-S with silver M2
    and Al M1 coatings
  • Protected silver on the primary and secondary?
  • Aggressive and regular mirror cleaning procedure
  • CO2 or laser cleaning?

8
MIR Telescope Enclosure Mount
  • For thermal control reasons, need telescope
    enclosure and structure to have low emissivity to
    rapidly equilibrate with surroundings (Lowmit
    paint)
  • Also desirable to have -
  • Low thermal mass of telescope structure
  • Low wind cross-section of telescope mount to
    minimize wind shake and maximize wind flushing
  • Capable of relatively fast mount offsets over
    30-60 arcsec to support efficient nod cycles
  • Very important to maximize open shutter
    efficiency of system

9
MIR Telescope Motions
  • Chopping not required for MIR spectroscopy
  • due to array detectors
  • Nodding is required
  • 5-10sec timescales
  • distance 0.25 along slit
  • distance
  • accuracy
  • May be implications for wavefront sensors
  • Scan mode required
  • create data cube by stepping telescope
  • small (0.025) steps while guiding
  • Non-sidereal rates required
  • to track asteroids for calibration
  • Likely need queue based system to exploit best
    mid-IR conditions (20 µm particularly)

10
MIR Facilities
  • Extensive grade-5 helium distribution system
    needed
  • Facility instrument handling equipment, lab
    space, vacuum systems, etc.
  • Large capacity air conditioning system to preset
    air temperature within the dome for predicted
    evening value

11
MIR Summary
  • Mid-infrared instrumentation has a broad range of
    potential observatory impacts
  • Baffling
  • Dynamic performance of telescope mount
  • Mirror coatings cleaning procedures
  • Wavefront sensor control systems
  • Etc. (even the paint)

For details on MIR see Simons and Richters
slides from Jan
12
HROS (MTHR)
  • RC and Gregorian telescope design OK
  • not sensitive to f/ratio (f/15 nominal)
  • ADC and image rotation internal to instrument
  • Huge, requires tennis court sized Nasmyth
  • 12m 16m area with fixed gravity
  • separate level of Nasmyth platform?
  • Mass
  • Fibre mode desirable?
  • If yes, then should be located close to minimize
    losses
  • No new technologies
  • Good candidate for first light instrument
    (natural seeing, any conditions)
  • Could build minimalist version first
  • Descope options exist

For details see Vogt slides from Mar
13
HROS (MTHR Concept)
14
NIR Deployable IFU
  • Deployable 1-5 micron instrument.
  • Up to 5 arcmin diameter field correction in
    each element.
  • Coarse sampling (0.05).
  • R5000 over broad band.
  • 20 deployable units of 20x20 elements.
  • 2K detector each
  • Telemetry may be sufficient for PSF.
  • Issues
  • must demonstrate that MOAO works in real
    conditions
  • open-loop, off-null operation
  • space requirements?
  • wavefront sensing schemes?
  • What will delivered PSF be?
  • Knowledge of PSF available from AO system?
  • Wavefront error budgets?
  • how partitioned between AO and instrument?

15
MCAO On-axis IMAGER
  • Monolithic 1-5 or 1-2.5 micron wavelength.
  • Fine Sampling 0.005
  • Small single field of view 10
  • High stability precision relative astrometry
  • Few moving parts.
  • On-board active alignment and focus.
  • Requires very early sampling of the focal plane
    to preserve high Strehl.
  • Could also serve as part of extreme-AO instrument
  • Need parallel imaging capability for PSF.
  • Will probably be detector limited.
  • 30 field of view is reasonable.
  • 30 at 0.005 is only 6000x6000 pixels.
  • Also, given the plate scale and typical pixel
    size (18 microns), the camera focal ratio is
    reasonable (F/25).
  • 4096x4096 arrays with 9 micron pixels may be
    possible soon
  • 2 or 3 side buttable.
  • What will delivered PSF be?
  • Knowledge of PSF available from AO system?
  • Wavefront error budgets?
  • how partitioned between AO and instrument?

16
MCAO On-axis IFS
  • Requirements
  • 0.8-2.5 mm (goal of 5 mm)
  • R4000 (OH lines, kinematics)
  • R10,000 for UV lines from z6-10 Echelle Mode
    (20,000-100,000)
  • Broad band coverage in each spectrum (2000-4000
    spectral elements)
  • Spatial sampling 0.005 for Nyquist at J
  • Problem pixel math
  • 10 at 0.005 sampling 2000x2000 field
    elements
  • R4000 for broad band with 2 pixels per element
    2000 pixels per spectrum
  • Efficiency factor 1.1 to 2 pixels
  • Total 9-16 billion pixels!
  • 4000 of todays largest detectors!

Compromises are needed with MIFS field of
view/configuration. Most science can be preserved
with smaller field of view (0.5)
17
MIFS Example configuration
  • Central 100x100 lenslets feeding 9 modules with
    R4000 (0.5x0.5).
  • Adjacent 5x20 lenslets feeding echelle
    (0.025x0.100).
  • Other lenslets feed imager (10x10)
  • Imager used for active alignment
  • Other configurations could have
  • coarser scale in outer region or
  • deployable regions for astrometry.

18
MCAO IFS ISSUES
  • Compromises are needed with MIFS field of
    view/configuration.
  • Wavelengths 2.5micron bring penalty (below)
  • Detector Performance and Cost
  • Detector dark current Background in 0.005,
    dispersed to R5000 is two orders of magnitude
    below existing detector dark currents between OH
    lines.
  • 1-5 micron devices may have significantly higher
    dark current and read noise over 1-2.5 micron
    devices.
  • Lose significant sensitivity in 1-2.5 microns
    region.
  • Caveat latest Rockwell 1-5 micron detectors
    claim good performance.
  • Same questions re PSF, error budgets from AO

19
WFOS concepts
  • Many similar problems with all designs
  • Size of CaF2 refractive elements?
  • need large beam to get resolution requested
  • Size of beamsplitters and filters?
  • Efficiency of AR and reflective coatings?
  • 0.31-1.1microns
  • Efficiency and size of VPH gratings?
  • may need VPH gratings to get spectra resolution
  • Incorporate ability to nod shuffle
  • Nods 30sec
  • ideally with
  • Must synchronize nods, WFS, CCD controller
  • Require large ADC
  • Require large mask maker, mask storage

20
Future Work
  • WFOS
  • Continue exploring design space to establish what
    is really feasible in a single concept
  • VPH grating development
  • Size of refractive elements and filters (for HROS
    too)
  • MOAO
  • conceptual design(s) of complete MOAO dIFU
  • partition WFE with AO system
  • MCAO IFS
  • reduce field or examine alternate configurations
    for IFS
  • conceptual design
  • partition WFE with AO system
  • ExAO
  • explore impacts and requirements on telescope
  • add ExAO aficionado, e.g., James Graham
