Machine Languages

1

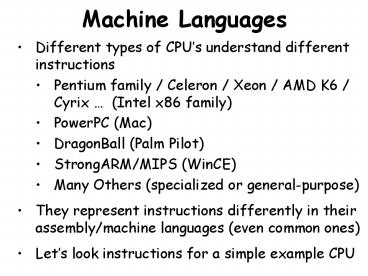

Machine Languages

• Different types of CPUs understand
  differentinstructions
• Pentium family / Celeron / Xeon / AMD K6 / Cyrix
  (Intel x86 family)
• PowerPC (Mac)
• DragonBall (Palm Pilot)
• StrongARM/MIPS (WinCE)
• Many Others (specialized or general-purpose)
• They represent instructions differently in their
  assembly/machine languages (even common ones)
• Lets look instructions for a simple example CPU

2
An Example CPU

• Well look at a toy CPUs Machine Language
• Our CPU has
• 8 Registers each holds 16 bits (2 bytes)

3
Our Example CPU

• Well look at a toy CPUs Machine Language
• Our CPU has
• 8 Registers each holds 16 bits (2 bytes)
• Our RAM
• Reads and writes (loads and stores) in blocks of
  16 bits (2 bytes)
• Has 28 256 addresses
• Total Memory 2562 512 bytes

4
Writing it down

• We are going to be looking at lots of
  16-bitsequences.
• E.g. 0110110010100101
• It can be tiring/confusing to read so many bits.
• So we use Hexadecimal representation of data and
  instructions

5
Recall Hexadecimal
6
Hex Shorthand
e.g.
0110 1100 1010 0101
7
Hex Shorthand
e.g.

• 0110 1100 1010 0101 6 C A
  5

8
Machine Core

• Everything is in binary (hex)

Registers
R0 0000 R1 0CA8 R2 A9DB R3 0705 R4 1011 R5
90A0 R6 0807 R7 00A0
9
Representing Instructions

• Machine instructions will also be representedby
  16 bits.
• Well divide those bits up into groups
• The first 4 bits are called the Op-Code
• Tells what type of instruction it is.
• How many possibilities does 4 bits give us?

6 C A 5
10
Instructions

• 16 possible Op-Codes
• Well only look at a fewin detail

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
11
Halt Instruction

• Opcode 0 Halt
• This just tells the machineto stop.
• Other 12 bits are ignored. So
• All have same effect.

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
0 0 0 0
0 F F F
0 9 A C
12
Data Instructions

• Opcode B Load Direct / Address
• Sets a Register to a fixedSpecified Value
• Encoding
• Effect Register A becomesthe specified value

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
B regA value (8 bits)
13
Arithmetic/Logic Instructions

• Opcode 1 Add
• Adds contents of two registerstogether and puts
  result in thirdregister
• Encoding
• Effect Register A becomesRegister B Register C

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
1 regA regB regC
14
Adding Numbers

• Simple Program to calculate1 2 3 4 5 6
  21 15 (hex)

10 Load R0 ? 01 (always 1) 11 Load R2 ?
00 (running total) 12 Load R1 ? 01
(current number) 13 Add R2 ? R2 R1
(R21) 14 Add R1 ? R1 R0 (R12) 15 Add
R2 ? R2 R1 (R23) 16 Add R1 ? R1 R0
(R13) 17 Add R2 ? R2 R1 (R26) 18 Add
R1 ? R1 R0 (R14) 19 Add R2 ? R2 R1
(R2A) 1A Add R1 ? R1 R0 (R15) 1B Add
R2 ? R2 R1 (R2F) 1C Add R1 ? R1 R0
(R16) 1D Add R2 ? R2 R1 (R215) 1E halt

• Algorithm Initialize the current number to 1.
• Keep incrementing the current number by 1 until
  it reaches 6, and keep adding it to a running
  total

15
Arithmetic/Logic Instructions

• Opcode 2 Subtract
• Similar to Add
• Encoding
• Effect Register A gets the
  value of Register B - Register C

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
2 regA regB regC
16
Control Instructions

• Opcode 6 Jump if Positive
• Jump to a different placein memory if Register
  is 0
• Encoding
• Effect If Register A 0,Go To Instruction at
  specifiedaddress (I.e. change IP to address)

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
6 regA address (8 bits)
17
How to Simplify the Program

• Wrote the same instruction pairs 6 times
• What if we were adding from 1 to 15000?
• Can we reduce this?
• Solution Loops
• Implemented with jump (or branch) instructions
• Conditionally change IP to jump back to earlier
  point in program

18
Adding Numbers Revisited

• Use a Loop, with a simple jump instruction, to
  calculate 1 2 3 4 5 N

10 Load R1 ? 0006 (N is 6) 11 Load R2
? 0000 (running total) 12 Load R0 ?
0001 (always 1) 13 Add R2 ? R2 R1
(add in N) 14 Sub R1 ? R1 - R0 (N
N-1) 15 Jump to 13 if (R10) (If N isnt
0 yet, go back) 16 halt (N
is now 0, and R2 12N)

• Notice Decrements, instead of incrementing,
  current number

19
Advanced Control Instructions

• Opcode 7 Jump and count (backwards)
• Jump to a different place in
  memory if Register value is 0,AND decrement
  Register by 1
• Encoding
• Effect If Register A 0,Go To Instruction at
  specifiedaddress and set A A - 1

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
7 regA address (8 bits)
20
Adding Numbers Revisited

• Alternate Loop using Jump Count for1 2 3
  4 5 N

10 Load R1 ? 0006 (N) 11 Load R2 ?
0000 (running total) 12 Add R2 ? R2
R1 (add in N) 13 If (R10), Jump to 12
(If N isnt 0 yet, and decrease R1 Let
NN-1, and go back) 14 halt
(N is now 0, and R2 12N)

• No need for R0, which stored increment/decrement
  size of 1, and no need for subtract
  instruction these are incorporated in JumpCount
  instruction

21
Memory Instructions

• Opcode 9 Load (from memory)
• Load from Memory into Register
• Encoding
• Effect Load data from RAM atspecified address
  intoRegister A

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
9 regA address (8 bits)
22
Memory Instructions

• Opcode A Store (into memory)
• Store Register into Memory
• Encoding
• Effect Store contents ofRegister A into
  memoryat specified address

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
A regA address (8 bits)
23
Memory Instructions Indirect

• Opcode 9 Load (from memory)
• Load from Memory into Register
• Encoding
• Effect Load from RAM ataddress BC into
  Register A

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
9 regA regB regC
24
Memory Instructions Indirect

• How can CPU tell these apart?
• Sneaky trick
• CPU has 8 Registers,so only need 3 bits to
  specifyRegister A
• Use extra bit to tell which type of LOAD

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
9 regA address (8 bits)
9 regA regB regC
25
Hacks

• This is called a HACK!
• Hacks are terrible! (not all)Generally should be
  avoided.
• Sadly, they are everywhere.
• Some people get perversepleasure out of hacks.
• Hacks are a major source of bugs!

0 halt 1 add 2 subtract 3 multiply 4 bus
output 5 jump 6 jump if positive 7 jump
count 8 bus input 9 load A store B load
direct/addr. C NAND D AND E Shift Right F
Shift Left
26
A Virus!

• Copies itself on top of other programs!

10 Load R1 ? 0006 (Length of
Virus) 11 Load R2 ? 001F (Memory
Location to copy self To -1) 12 Load R3 ? 000F
(Memory Location to copy self From
-1) 13 Load R0 ? AddressR3R1 (Load last
instruction from source) 14 Store
AddressR2R1 ? R0 (Store to last instr in
destination) 15 If (R10), Jump to 13 (If
havent copied whole virus, and decrease R1
decrease R1, and go back) 16 halt
(Virus has replicated) ...
__________________________________________________
____________ 20 . . . .
(Program about to be destroyed.) 21 . . . .
...
27
Summary

• We have looked at a typical Machine Languageand
  how instructions are represented.
• Halt Instruction
• Data Instructions
• Arithmetic/Logic Instructions
• Control Instructions
• Memory Instructions

28
Summary (cont.)

• We saw a few simple examples of programsyou can
  write in Assembly Language.
• You now have a pretty solid understandingof how
  computers really work !
• But you dont want to write programs in Assembly
  Language
• Modern programming. Writing programs in
  high-level languages.
• Start with traffic light example, in software
  rather than in hardware

29
Writing a Program in a High-level Language

• Figure out what you want to do
• Understand the rules that guide the process you
  are automating
• Make sure that your rules are complete
• Translate the rules into the computer language
• Build structures to hold your data
• Build tools to manipulate the structures
• Make sure that the program does what the rules say

30
Elements of Programming

• We looked at machine language
• Single instructions that tell the hardware what
  to do
• Primitive
• Arithmetic, simple branching, communication with
  memory
• We built state machines
• States using memory
• Transitions modeling tasks
• A hardwired program

31
Elements of Programming

• Weve seen
• Truth tables
• Logic gates
• States and transitions in a state machine
• Machine language
• Now, higher level programming language

32
To build a computer program

• Figure out what you want to do
• Understand the rules that guide the process you
  are automating
• Make sure that your rules are complete
• Translate the rules into the computer language
• Build structures to hold your data
• Build tools to manipulate the structures
• Make sure that the program does what the rules say

33
Figuring out the rules

• For traffic lights
• We stored data that told us the current color of
  lights
• We read input from sensors
• We had rules that told us whether to change state
• We had rules that told us how to change state

34
Traffic Light Behavior
Otherwise
IF A1 AND B0
Light A
Always
Always
IF A0 AND B1
Otherwise
Light B
35
Turn Memory, Inputs and Outputs Into Variables

• Store data to tell current color of lights
• Dim LightA, LightB as Integer
• 0 for red, 1 for yellow, 2 for green
• Read input from sensors
• Dim SensorA, SensorB as Integer
• tell if cars are waiting

36
Turn Rules Into Statements

• Decide whether to change state
• If LightA 0 And LightB 2 And SensorA 1 And
  SensorB 0 Then
• here we want to specify that the colors change
• If LightA 2 And LightB 0 And SensorA 0 And
  SensorB 1 Then
• again, we want to specify that the colors change

37
Build shell of program

• Dim LightA, LightB as Integer
• Dim SensorA, SensorB as Integer
• If LightA 2 And LightB 0 And SensorA 0 And
  SensorB 1 Then
• ChangeGreenToYellow(LightA)
• ChangeYellowToRed(LightA)
• ChangeRedToGreen(LightB)
• If LightA 0 and LightB 2 And SensorA 1 And
  SensorB 0 Then
• ChangeGreenToYellow(LightB)
• ChangeYellowToRed(LightB)
• ChangeRedToGreen(LightA)

38
Some Rules

• Statements have to be in blocks
• How does the computer know that the instructions
  are
• If LightA 2 And LightB 0 And SensorA 0 And
  SensorB 1 Then
• ChangeGreenToYellow(LightA)
• ChangeYellowToRed(LightA)
• ChangeRedToGreen(LightB)
• And not
• If LightA 2 And LightB 0 And SensorA 0 And
  SensorB 1 Then
• ChangeGreenToYellow(LightA)
• ChangeYellowToRed(LightA)
• ChangeRedToGreen(LightB)

39
Some Rules

• Statements have to be in blocks
• If LightA 2 And Light B 0 And SensorA 0 And
  SensorB 1 Then
• ChangeGreenToYellow(LightA)
• ChangeYellowToRed(LightA)
• ChangeRedToGreen(LightB)
• End If
