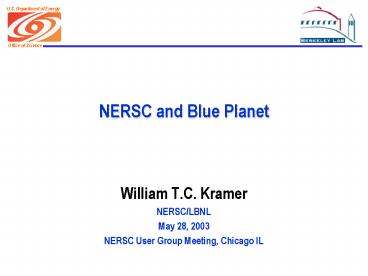

NERSC and Blue Planet

1
NERSC and Blue Planet

• William T.C. Kramer
• NERSC/LBNL
• May 28, 2003
• NERSC User Group Meeting, Chicago IL

2
What is Blue Planet

• Blue Planet is a science driven design
  process to develop systems that are
  simultaneously more effective for science and
  sustainable and cost effective for vendors.
• White Paper uses IBM as an example of what can be
  done with this process
• Can be applied to a number of vendors
• Blue Planet is a new concept for a sustainable
  computer architecture more effective for science
  and engineering applications
• A specific implementation leveraging the IBM
  roadmap that better balances scientific
  processing needs and the commercial viability
• Described as a ultrascale scale system on the
  order of the Earth Simulator
• http//www.nersc.gov/news/blueplanet.html
• and
• http//www.nersc.gov/news/ArchDevProposal.5.01.pdf


3
Signposts of Change in HPC

• In early 2002 there were several signposts that
  signal a fundamental change in HPC in the US.
  For NERSC they were
• Poor benchmarks for the NERSC workload for our
  latest procurement (March 2002)
• Impressive early performance results of the Earth
  Simulator System (April 2002)
• Increasing indications that commodity clusters
  will not be as easy, scalable or cost-effective
  as first projected.
• Lack of progress in computer architecture
  research evident at Petaflops Workshop (WIMPS,
  February 2002)
• Detailed evaluation of current and future
  processors and systems
• System designers did not truly understand current
  and future scientific applications
• Design target codes are not current and future
  methods

4
The Conclusion

• The community has pursued the logical extreme of
  the COTS systems
• The commodity building block was the
  microprocessor, but is now the entire server
  (SMP).
• Communications and memory bandwidth are not
  scaling with peak processor power.
• Near football-field size computers consuming
  megawatts of electricity.
• DOE Office of Science is the natural leader to
  address this and is making it a priority
• This is happening against the backdrop of
• Decreasing interest in HPC by some U.S. vendors
• Further consolidation/reduction of the number of
  vendors
• Reduced profitability and reduced technology
  investments
• New ways to define commodity
• So, we are in the middle of a fundamental change
  of the basic premises of the HPC market in the
  U.S.

5
The Divergence Problem

• The requirements of high performance computing
  for science and engineering and the requirements
  of the commercial market are diverging.
• The commercial-clusters-of-COTS-SMPs approach is
  no longer sufficient to provide the highest level
  of performance
• Lack of memory bandwidth
• High interconnect latency
• Lack of interconnect bandwidth
• Lack of high performance parallel I/O
• High cost of ownership for large scale systems

6
The Divergence Problem

• In response, NERSC, ANL, IBM developed a Science
  Driven Computer Architecture proposal.
• Includes a new architecture co-defined with IBM
  called Blue Planet
• "Creating Science-Driven Computer Architecture
  A New Path to Scientific Leadership -
  http//www.nersc.gov/news/ArchDevProposal.5.01.pdf

• Expanding this process with other vendors

7
Overall Goals

• Restore American leadership in capability
  scientific computing by 2005
• Define a sustainable path for efficient
  scientific computing
• Focus on achieving high sustained performance
  rather than peak
• The first step in a long term strategy
• Petaflop peak by the end of the decade with 40
  sustained
• An initial system with 2x sustained performance
  over the ES at 50 the cost
• On at least a modest number of strategic large
  applications
• Sustained performance of 30-40 on key benchmarks
• Needs to be 4X peak performance of the current ES
  (assume Moore's law performance scaling)
• 160TF peak performance
• Phased delivery plan with the final system
  available in 2H05,1Q06
• Assumes a significant funding profile can be
  developed
• Low risk (build off existing roadmap to the
  extent possible)
• Full strategy has multiple solutions proposed
• ANL with Blue Gene/L and ORNL with Cray X1
• Proposed to be a cooperative development effort
  between NERSC and IBM

8
Approach

• Study applications critical to DOE Office of
  Science and others. For example
• Material Science
• Combustion simulation and adaptive methods
• Computational astrophysics
• Nanoscience (new drugs and also new microchip
  technologies)
• Biochemical and Biosciences (protein
  folding/interactions)
• Climate modeling
• High Energy Physics (particle accelerators and
  astrophysics)
• Multi-grid Eigen solvers and LA methods
• Identify key bottlenecks found in these critical
  applications
• Outline a high level approach to address the
  challenges
• Follow-up meetings for detailed drill down by the
  IBM computer scientists and application
  scientists at NERSC
• Iterate on proposed solution

9
Other Ideas for Consideration

• Finely tuned libraries for FFT, FMA, Matrix ops
  (ESSL, PESSL)
• Hardware acceleration engines for performance
  critical ops especially when software tuning is
  inhibited by other constraints
• MPI Lite (avoid some of the performance
  inhibiting semantics that are seldom used)
• Trade-offs would be ordering rules and maybe
  repeatability of results
• Hardware acceleration engines for MPI (in
  processor adapter)
• Unified Parallel C programming model and other
  new languages
• Microkernel OS on compute nodes
• Other OS enhancements for HPC
• E.g. no paging of well behaved applications
• better hooks for daemon control
• Advanced Cooling to address floor space
• New CPUs clock is limited by packaging and
  cooling not chip technology
• Compiler technologies for Viva, VMX, etc.

10
New Class of Computer Architectures for Science

• Sustained cooperative development of new computer
  architectures
• Engaging the scientists with the developers
• A focus on sustained performance of scientific
  applications not on peak performance
• Addressing the key bottlenecks of bandwidth and
  latency for memory and processor interconnection
• A new investment in the computer science research
  and scientific research communities
• Cost Matters
• If effective scientific supercomputing is only
  available at high cost, it will have impact on
  only a small part of the scientific community.
• So, we need to leverage the resources of
  mainstream IT companies like IBM, HP and Intel.
• And our national science policy should motivate
  them to participate durably.

11
Full IBM Blue Planet System Components

• New IH Wide Node - 8 CPUs per node
• POWER5 GS Processor - 2.5GHz
• Single core MCM
• 2048 node system (8 Nodes per frame)
• 16K processors _at_ 10GF per CPU 160TF Peak
• Virtual Vector Architecture - VIVA
• Federation Switch - 3 stage topology
• 8GB/s per server for the uni direction
  communication bandwidth.
• 40-50 TF Sustained on 2-3 selected applications
• 256 TB of memory 16GB per CPU
• May reduced to 128TB of memory if it can sustain
  full memory BW
• 2.5PB disk in I/O system approximately 48 IO
  nodes
• Approximately 600 Frames
• 256 compute racks, 250 Disk racks, 160 Switch
  racks
• 12,000-15,000 Sq Feet 5-7 MWatts Power
• Scientists will focus on application optimization

12
Blue Planet A Conceptual View

• Increasing memory bandwidth single core
• 8 single CPUs are matched with memory address bus
  limits for full memory bandwidth
• Increasing switch bandwidth 8-way nodes
• Decreased switch latency while increasing span
• Enabling vector programming model inside each SMP
  node
• Sustained performance on science applications at
  a sustainable cost and development model

13
Issues Under Study

• Issues Covered
• Memory Bandwidth
• Especially for small scattered accesses
• MPI communication latency
• Protocol path length overhead hurts performance
• Example UPC very sensitive to this overhead
• MPI Collective Communication Performance
• MPI IO Performance
• MPI scaling to a large number of tasks
• New Issues
• Microkernel option
• VIVA follow-up with the Compiler team

14
Progress Already

• Additional changes Power 5 CPU
• Scaling the switch larger than first planned
• Software performance changes
• Close to committing small, more memory intensive
  node

15
Progress and Status

• LLNL/ASCI has become very interested in Blue
  Planet
• 8 meetings with IBM and LLNL to develop the
  ideas and narrow down design choices
• CPU Design
• Node Design
• Switch/Interconnect
• Software
• System Level
• Libraries
• Special devices
• Modeling Performance

16
Node Discussion

• Large SMP vs Small SMP
• Impacts switch scaling and hence cost
• Partitioned vs Not partitioning
• Impacts memory latencies and switch scaling
• MCM based vs DCM based nodes
• Impacts cost and performance
• Memory Latency
• Performance sensitivity
• Memory Bandwidth
• Streams performance sensitivity
• Cost

17
Interconnect Discussion

• Importance of Bisection bandwidth
• Collectives vs point to point
• Application classification
• Fat Tree (multi stage networks) vs 3D mesh
  designs
• Is a 3D mesh or hypercube based approach cost
  effective?
• Sensitivity to communication patterns
• Need to model the communication patterns to
  corresponding bottlenecks
• What to prioritize
• Global bandwidth versus local bandwidth
• Infiniband switch costs
• Depends on the scale of the system

18
Progress Already

• System Software
• Next on the list start consideration
• Currently IBM is most interested in limited full
  blown system software
• Studying Microkernel and minimum OSs
• Modeling
• IBM Research, NCAR, SDSC, PERC, NERSC, LLNL
• Developing tools and methods

19
Other Progress

• Other sites very interested
• Over 30 sites asked IBM for briefing
• A number have asked to participate in discussions
• Blue Planet is the basis for several other
  activities
• A lot of the basis for recent White Paper for
  HECRTF
• Continued discussions with DOE/SC
• Having depth discussions with SGI, Intel, Cray
  and HP
• SGI has some interesting plans based on DARPA
  HPCS
• Considering holding a workshop on Blue Planet

20
Summary

• Think of Blue Planet as a new process as well as
  a single instantiation of a computer architecture
• Waiting for vendors to produce a product, and
  then evaluating and purchasing will only increase
  the divergence
• Products are already designed to a different
  design point
• Ideas for new, sustainable architectures are
  sparse
• Commodity clustering has more than reached its
  limits of effectiveness
• Need a modified approach to improve this
  situation for capability science
• Lou Gerstners book title was Who said Elephants
  Cant Dance. Blue Planet is a collaborative
  effort by some users and some parts of IBM, Cray,
  SGI, and other vendors to do do some fancy
  dancing for Scientific computing.
