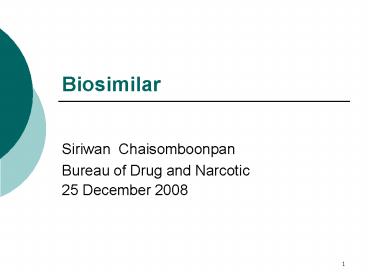

Biosimilar

1
Biosimilar

• Siriwan Chaisomboonpan
• Bureau of Drug and Narcotic
• 25 December 2008

2
Outlines

• What is a biological medicine?
• What is a biopharmaceutical medicine?
• What is a biosimilar medicine?
• What is the importance of biosimilar?
• Which are the related guidelines?

3
What is a biological medicine ?

• Is a medicine whose active substance is made by
  or derived from a living organism.
• Example such as insulin can be produced by a
  living organism.

4
What is a biopharmaceutical medicine?

• Biopharmaceutical
• - A drug created by means of biotechnology,
  especially genetic engineering.
• - A pharmaceutical inherently biological in
  nature and manufactured using biotechnology.

5
How biopharmaceuticals made?

• Develop host cell
• Establish a cell bank
• Protein production
• Purification
• Analysis
• Formulation
• Storage and handling

6
Develop host cell

• Identify the human DNA sequence for the desired
  protein
• Isolate the DNA sequence
• Select a vector to carry the gene
• Insert the gene into the genome of a host (a
  suitable bacterial or eukaryotic cell)
• The exact DNA sequence and the type of host cell
  used will significantly influence the
  characteristics of the product

7
Establish a cell bank

• A cell bank is then established, using an
  iterative and elaborate cell screening and
  selection process, yielding a unique master cell
  bank.
• No two master cell banks are exactly alike.

8
Protein production

• The conditions under which cells are cultured can
  affect the nature of the end product.

9
Purification

• Any change in the purification process can affect
  the clinical characteristics of the product.

10
Analysis

• Protein molecules are analyzed for uniformity in
  terms of structure and potency.
• A wide variety of analytical tools is used to
  examine
• 3D structure/Aggregation/
• Isoform profile, including glycosylation
  patterns/ Heterogeneity/Potency

11
Analysis (cont.)

• These tests remain limited in their ability to
  detect all product characteristics that may
  affect clinical efficacy and safety.

12
Formulation

• Formulation is a key step in stabilizing the
  protein.
• The components of the formulation, and the
  process used, can significantly affect the
  products behavior in patients.

13
Storage and handling

• Biopharmaceuticals are very sensitive to
  temperature changes and/or shaking.
• Strict storage and handling conditions are
  therefore essential for maintaining product
  integrity and stability.
• Poor adherence to (cold) storage requirements can
  affect clinical efficacy and safety.

14
Manufacturing low molecular weight drugs

• Low molecular weight drugs are made by adding
  and mixing together known chemicals and reagents,
  in a series of controlled and predictable
  chemical reactions.
• This is organic chemistry

15
Differences in manufacturing

• The manufacturing process for a biopharmaceutical
  is far more complex than that for a low molecular
  weight drug.
• For biopharmaceuticals, much more than for low
  molecular weight drugs, the quality of the end
  product (including therapeutic efficacy and
  safety) is depended on the manufacturing process.

16
Quality of products

• Each of these stages can have a major influence
  on the characteristics of the biopharmaceutical
  end product.
• These differences clearly apply to biosimilars as
  well as to original biopharmaceuticals.

17
What is a biosimilar medicine?

• Is a medicine which similar to biological
  /biopharmaceutical medicine that has already been
  authorized (the biological/ biopharmaceutical
  reference medicine).
• The active substance of a biosimilar is similar
  to the one of biological/ biopharmaceutical
  reference medicine.
• Used in the same dose to treat the same disease.

18
What is a biosimilar medicine? (cont.)

• Similar biotechnology medicinal products a new
  type of generic biopharmaceutical approval in the
  EU.
• It is similar but not identical.

19
What is the importance of biosimilar?

• Biopharmaceuticals represent one of the
  fastest-growing segments of pharmaceutical
  industry.
• By 2010 they are expected to represent 50 of the
  market.
• Patent of original product expired.
• Increase opportunity to healthcare services,
  decrease expenditures.

20
Other related terms

• Biogeneric
• Follow-On Protein
• Follow-On Biologic

21
Basic to view and define biosimilar

• Entity-Based (including Product Process)
• Regulatory-Based (under an abbreviated testing
  and/or filing scheme)
• Market-Based (same manufacturers, different trade
  name)

22
Entity-Based

• Based on consideration of their
• Chemical and/or biological source
• Identity (structure)
• Activities
• Manufacturing process
• Specification
• Predictions of product safety and efficacy based
  on knowledge of one or more similar products.

23
Example Process Product

• Cheddar cheese and red wine from different
  manufactures are unique (e.g. in flavor or
  texture).
• But they may be treated as the same (generic
  equivalent) and be assigned the same generic
  product name.

24
Related Guidelines

• European Medicines Agency Evaluation of Medicines
  for Human Use

25
EMEA Guidelines

• Similar biological medicinal products, Oct 2005
• Similar biological medicinal products containing
  biotechnology-derived proteins as active
  substance Quality Issues, Feb 2006
• Manufacturing process, comparability to reference
• Suitability of analytical method, physicochemical
  properties, biological activity, purity and
  impurities, specification

26
EMEA Guidelines (cont.)

• Similar biological medicinal products containing
  biotechnology-derived proteins as active
  substance Non-Clinical and Clinical Issues, Feb
  2006
• Non clinical data in vitro, in vivo studies
  (Pharmacodynamic effect, toxicity)
• Clinical studies Pharmacokinetic,
  Pharmacodynamic, Efficacy trials

27
Non-Clinical and Clinical Issues, Feb 2006 (cont.)

• Clinical safety and pharmacovigilance requirement
• Immunogenicity
• Factor affecting immunogenicity
• Consequences of an immune response
• Principle for evaluation of immunogenicity
• Testing
• Evaluation of the clinical significance of the
  observed immune response

28
Annex Non-Clinical and Clinical Issues

• Recombinant Erythropoietin
• Recombinant Human Soluble Insulin
• Recombinant Granulocyte-Colony Stimulating Factor
• Somatropin

29
Conclusions

• The manufacturing process for biopharmaceuticals
  (and biosimilars) is far more complex than for
  low molecular weight drugs (and generics).
• Any (minor) change made at any stage may have a
  critical effect on the clinical efficacy and
  safety.
• Major manufacturing changes include
• producing a biosimilar
• opening/starting a new production site
• scaling-up to meet market demands
• The process is the product

30
Points to consider

• Can a new manufacturer produce a biosimilar that
  is similar enough to the original
  biopharmaceutical to be considered the same?
• How can the level of similarity be established
  without access to the bulk material?
• Are there risks associated with currently
  undetectable differences?
• How similar is similar enough?

31
References

• Basant Sharma, PhD Manufacturing differences
  between biopharmaceuticals and low molecular
  weight drugs 2005.
• EMEA Guideline on Similar Biological Medicinal
  Product 2005-2006
• EMEA Question and Answers on biosimilar
  medicines 2006
• WWW.nature.com/naturebiotechnology
