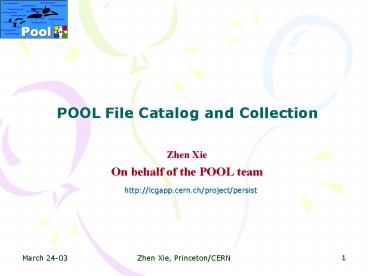

POOL File Catalog and Collection

• Zhen Xie
• On behalf of the POOL team

http//lcgapp.cern.ch/project/persist
2
Thanks to the following developers for providing
data and comments for this talk M.Girone,
J.Wojcieszuk (File Catalog) I.Papadopoulos,
H.Schmuecker (Collection)
3
Overview

• File Catalog component
• keep track of files (physical location and
  description)
• resolve logical file reference (FileID) into a
  physical file
• Collection component
• keep track of a large set of objects and their
  description
• entry point to access data via logical grouping

4
Static Relationships
Production manager
File Catalog
Storage components
Collections
ref
run
evt

1
1
POOL

1
2
5
Dynamic relationships - read
storage components
user application
collection
file catalog
PFN
object
read
read via collection
6
Dynamic relationships write
storage components
user application
collection
file catalog
register/lookup (PFN)
write
fileID
define collection
(attributespec)
create collection
register/lookup (PFN)
fileID
fill collection
(ref, attribute)
7
File Catalog-schema
Logical Naming
Object Lookup
Physical Filename 2
Logical Filename 2
Physical Filename m
Logical Filename n

• FileID unique, immutable identifier of the file
• Physical File Name (PFN) identifies the physical
  location of the file,
• e.g. lx01.cern.ch/data/tt.root
• Logical filenames are supported but not required

8
File Catalog-implementation

• XML catalog
• disconnected
• 20K entries
• MySQL catalog
• local cluster
• 1M - 10M entries
• EDG-RLS based catalog
• on the grid
• large

9
File Catalog - features

• Transaction control
• C API command-line tools
• File registration, lookup
• File administration operations
• e.g. add replica, renamePFN
• Iteration over catalog
• Cross catalog operations
• e.g. append XML to MySQL catalog
• Import, extract catalog fragment
• Query user defined file meta data
• Graphic user interface
• Performance scalability improvement

10
File Catalog-use case
Grid catalog
11
File Catalog-performance (preliminary)

• XML tested up to 50K entries
• start time
• new catalog 10ms
• catalog with 20K entries 6s
• registerPFN lt0.3ms/entry
• MySQL tested up to 1M entries
• up to 300 concurrent clients, commit every 100
  entries or less frequent
• registerPFN lt1.5ms/entry
• EDG-RLS based catalog (see Mr J.Caseys talk)
• registerPFN 6ms/entry (autocommit)

Pentium III-1.2GHz free memory-220MB PFN-200
char FileID-36 char
12
Explicit Collection

• Explicit list of object references
• Allow iteration over large set of objects
• Queryable if associated with object meta data
• Like ntuple with object reference
• Allow accessing data via logical association

13
Explicit Collection-features

• Transaction control
• Meta data definition
• Collection creation, population
• Iteration
• Query
• MySQL implementation
• Root implementation

14
Hierarchical Collection

• Collection of collections
• Leaf collections are explicit object collections
• Allow complex user selection on collection and
  object meta data
• all events with gt4 selected electrons from runs
  with working ECAL and selected calibration,
  alignment setup
• Currently in prototyping phase

ref
collection
object metadata
collection metadata
15
Implicit Collection

• Collections defined by physical containment of
  the objects
• e.g. all objects in container A of database B
• Expose physical clustering of objects through the
  collection interface by storage components
• To be implemented in POOL

16
Summary

• File Catalog
• achieved cross-file navigation
• grid-aware (via EDG-RLS), but also preserving
  grid-decoupled modes
• on-going integration with LHC experiment software
  and production for LCG-1
• Collection
• achieved accessing objects by explicit MySQL
  collection
• there are pending design and implementation
  issues
