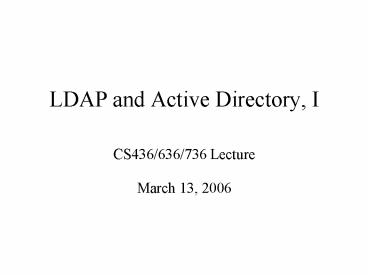

LDAP and Active Directory, I

1

• LDAP and Active Directory, I
• CS436/636/736 Lecture
• March 13, 2006

2
References, I

• Active Directory, Allen and Lowe-Norris,
  O'Reilly, 2/e, ISBN 0-596-00466-4
• LDAP Programming with Java, Weltman and Dahlbura,
  AW, ISBN 0-201-65758-9
• Wikipedia
• http//en.wikipedia.org/wiki/LDAP

3
References, II

• Shipley presentation on Security (1999)
• http//www.blackhat.com/presentations/bh-usa-99/Pe
  terS/shipley-99.ppt
• Kevin Wanner presentation on LDAP
• Netscape Worldwide Professional Services
  Developed For New York State Office for
  Technology, March 17th, 199
• http//www.oft.state.ny.us/ldap/LDAPOverview/index
  .htm
• Jason Heiss talk Kerberos and LDAP
• http//www.ofb.net/jheiss/krbldap/kerberos_and_ld
  ap.ppt
• Openldap.org

4
Three related protocols

• DNS IP, hostname and domain name lookup
• LDAP v3 Authorization (and authentication)
• Kerberos 5 Authentication

5
Why A Directory?

• Paper directories out of date by the time
  published. Need an online directory, but. . .
• Every application needed and provided own
  directory (N1 Directory Problem) -
  synchronization problematic
• International Telecommunications Union (ITU,
  formerly CCITT) develops X.500 directory standard
• But X.500 bloated, cumbersome, and lacking APIs
• Ref Wanner talk

6
DAP, LDAP, X.500

• X.500 directory model (OSI)
• DAP is directory service for this
  (heavy/impractical?)
• LDAP is simplified strategy (used/practical)
• LDAP comes from work at the University of
  Michigan, including model implementations
• UMICH refers people now to openldap.org
• LDAP v3 tech spec defined in RFC 3377
• Ref Wikipedia and others

7
Why LDAP?

• Tim Howes at the University of Michigan developed
  LDAP as a lightweight directory access protocol
  to access X.500 directories.
• LDAP has caught on independently of X.500 in the
  Internet community adding standardized
• Information Model (how the information looks)
• APIs (how applications get the information)
• Replication (how servers share information)
• Access Control (who can see what information)

8
LDAP model

• Distinguished names (DNs)
• Collection of attributes that have a name
• LDAP collects DNs as entries in its architecture
• DN is unambigous
• Attributes have defined names such as CN for
  common name
• Schemas control the entire process of LDAP
  entries
• Schemas can be extended dynamically
• Ref Shipley 1999, and others

9
LDAP Provides

• Unified sign on (one id and password for all
  applications)
• Single sign on (sign on to network once to use
  all applications -- needs PKI)
• PKI certificate repository
• Address Book (White Pages Service)
• Organizational Chart (Yellow Pages Service)
• Access control and authentication for
  applications
• Ref Wanner talk

10
LDAP Information Management

• Self
• Users can update their own entries
• Replication
• Supplier servers which master the data can push
  directory information to consumer servers
• Synchronization
• Directory information can be pulled from one
  server (e.g., agency server) and push into
  another (e.g., NYT server)
• Servers can be LDAP to LDAP or Legacy to LDAP
• Agents for this will be bundled in upcoming
  Meta-Directory
• Ref Wanner talk

11
Strengths/Limitations

• LDAP is well suited for
• Information that is referenced by many entities
  and applications
• Information that needs to be accessed from more
  then one location
• Roaming, e.g. by Road Warriors
• Preference information for web portals
• Information that is read more often than it is
  written
• LDAP is not well suited for
• Information that changes often (it is not a
  relational database)
• Information that is unstructured (it is not a
  file system)
• Ref Wanner talk

12
Alphabet Soup

• LDAP
• Lightweight Directory Access Protocol
• SASL
• Simple Authentication and Security Layer
• GSSAPI
• Generic Security Services Application Programming
  Interface
• PAM
• Pluggable Authentication Module
• NSS
• Name Service Switch
• Ref J. Heiss Talk more in part II of this
  presentation

13
Distinguished Names

• Each object in the LDAP directory has a DN
• uidjheiss,oupeople,dcexample,dccom
• cnusers,ougroup,dcexample,dccom
• Notice that the DNS name is example.com for the
  domain
• OU is organizational unit (key container privs)
• Each domain subdomain could create a tree
  structure in LDAP (engr.example.com,
  sales.example.com, pre.engr.example.com,
  support.engr.example.com, etc)

• Ref J. Heiss Talk

14
Sample DIT

• Branched by agency
• Agencies in this example have branches
  containing
• Groups which contain people
• People in the organization
• Resources such as printers and conference rooms
• Applications (where application specific info.
  could be maintained)
• Ref Wanner talk

15
Sample User Object

• Objects contain attributes, e.g.,
• uid (user ID)
• cn (common name)
• sn (surname)
• mail (e-mail address)
• Attributes can be multi-valued, e.g., givenname
  of both James and Jim
• This object contains
• white-pages information
• X.509 certificate for PKI
• Ref Wanner talk

16
Directory Information Flows

• Ref Wanner talk

17
OIDs / Priv Ent Nums / IANA.org

• Entites have to register at IANA.org (or ANSI) to
  have unique numbers for building LDAP schema
  entries
• IANA's root is 1.3.6.1.4.1
• Microsoft uses 1.3.6.1.4.1.311
• UAB uses 1.3.6.1.4.1.7341
• www.iana.org/assignments/enterprise-numbers
• Companies build hierarchies of their own control
  under these root numbers

18
OUs

• A key container concept in LDAP
• Can hold things like sets of users or computers
• Common organizational unit, container plus
  security boundary
• OU is used widely in LDAP and AD
• Container abstraction is a subset of OU, used
  less often
• OU is a security boundary, can have group
  policies (cf, Allen Lowe-Norris, p.19)

19
Schemas

• LDAP uses schemas to define what attributes an
  object can and must have
• posixAccount object class corresponds to an entry
  in a passwd file
• posixGroup corresponds to a group
• The same object can implement multiple object
  classes
• uidjheiss,oupeople,dcexample,dccom might be a
  posixAccount, inetOrgPerson and pilotPerson

• Ref J. Heiss Talk

20
Schema Examples

• attributetype ( 0.9.2342.19200300.100.1.1
• NAME ( 'uid' 'userid' )
• DESC 'RFC1274 user identifier'
• EQUALITY caseIgnoreMatch
• SUBSTR caseIgnoreSubstringsMatch
• SYNTAX 1.3.6.1.4.1.1466.115.121.1.15256 )
• objectclass ( 1.3.6.1.1.1.2.0 NAME 'posixAccount'
  SUP top AUXILIARY
• DESC 'Abstraction of an account with POSIX
  attributes'
• MUST ( cn uid uidNumber gidNumber
  homeDirectory )
• MAY ( userPassword loginShell gecos
  description ) )

• Ref J. Heiss Talk

21
LDIF Example User

• dn uidjheiss,oupeople,dcexample,dccom
• objectClass person
• objectClass inetOrgPerson
• objectClass posixAccount
• commonName Jason Heiss
• mail jheiss_at_example.com
• homePhone 111-222-3333
• givenName Jason
• surname Heiss
• uid jheiss
• userPassword KERBEROSjheiss_at_EXAMPLE.COM
• loginShell /bin/bash
• uidNumber 500
• gidNumber 100
• homeDirectory /home/jheiss

• Ref J. Heiss Talk

22
LDIF Example Group

• dn cnusers,ougroup,dcexample,dccom
• cn users
• objectClass posixGroup
• userPassword crypt
• gidNumber 100
• memberUid jheiss
• memberUid bob

• Ref J. Heiss Talk

23
What is OpenLDAP?

• Open Source LDAP v3 implementation
• Slapd standalone server daemon
• Slurpd replication daemon
• Libraries including Java libraries
• Included in major Unix distributions (such as
  SuSE10.0)
• Ref http//www.openldap.org/
• Software version 2.3.20 as of today

24
What is Active Directory 2003?

• Microsoft directory services
• Uses LDAP
• Uses Kerberos 5
• Uses DNS (not WINS)
• Scalable and available architecture
• Extends significantly but does not replace common
  X.500 schema elements

25
AD 2003

• Replaces AD 2000
• Provides upgrade paths from AD 2000 and Windows
  NT4 Domain Controllers (PDCs)
• Uses LDAP, DNS, and Kerboros 5 in combination to
  manage servers, people, devices, etc in large
  Windows environments
• Compare pGina http//sourceforge.net/projects/pgi
  na/

26
Summary

• Triumvirate LDAP, DNS, Kerberos
• Implementation examples AD, OpenLDAP
• Addresses Authentication and Authorization duals
• OpenLDAP can use weaker authentication (e.g.,
  Unix passwords)
• Tree-based data good for some things, databases
  for others
