Title: Enhanced State Estimation by Advanced Substation Monitoring


1

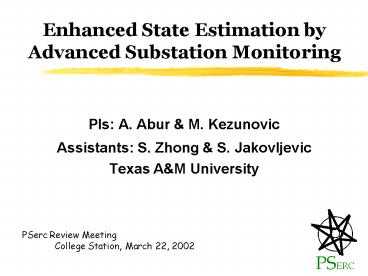

Enhanced State Estimation by Advanced Substation
Monitoring
  • PIs A. Abur M. Kezunovic
  • Assistants S. Zhong S. Jakovljevic
  • Texas AM University

PSerc Review Meeting College
Station, March 22, 2002
PSERC
2
Outline
  • Introduction
  • Statement of Work
  • Project Status
  • Computer Demos
  • Conclusions

3
Introduction
  • Project Objectives
  • Improved state estimation
  • Utilization of substation IEDs
  • Technical Approach
  • Merge information from substation into central
    state estimation
  • Expected Results
  • Prototype software for demonstration of the
    concepts

4
Statement of Work
  • Two stage state estimator
  • Formulation, implementation testing
  • Substation state estimator
  • Matlab based simulator development
  • Three phase estimation
  • Study effects of unbalances on the state
    estimate develop new solution algorithm
  • Documentation of results

5
Project Status
  • Prototype two-stage state estimator is
    implemented and being tested.
  • Substation state estimator is implemented in
    Matlab and being tested.
  • A new three phase estimator algorithm is
    developed and a prototype is implemented.
  • Utility data for testing are missing.
  • Actual topology error scenarios are missing.

6
Computer Demos
CB/Switch Status Info
Suspect Topology Error ?
1.Stage State Estimator
Analog Measurements
N
2.Stage State Estimator
Y
Substation Measurements
Next Scan
Estimated Status of CB/Switches
Substation State Estimator
7
Computer Demos
  • Processing of Substation Measurements
  • Verification of circuit laws
  • Symmetrical components and balanced voltages
    check
  • Branch status determination
  • Consistency check of branch current values and
    topology data
  • Time series consistency check
  • Use of Matlab/Simulink
  • Time domain simulator
  • Multi or single phase models
  • Consistent with the external operating
    conditions

Substation Measurements
Substation State Estimator
8
Computer Demos
CB/Switch Status Info
Suspect Topology Error ?
1.Stage State Estimator
Analog Measurements
N
  • LAV Estimator
  • Automatic rejection of BD
  • Normalized residuals of rejected measurements
  • Selection of suspect substations

Next Scan
9
Computer Demos
  • Modified LAV Estimator
  • Substation Model with CBs
  • Flows through CBs
  • Zero injections at inter. nodes

CB/Switch Status Info
Analog Measurements
2.Stage State Estimator
X
Substation Measurements
Estimated Status of CB/Switches
Augmented State
10
Conclusions
  • Substation measurement processor is a valuable
    tool to enhance the SE and to monitor other
    substation functions.
  • Topology error identification is demonstrated via
    the prototype software.
  • Substation and central SE should still be
    integrated.
  • Actual scenarios and network data are missing for
    testing the software.
  • New 3-phase estimator can be implemented by using
    existing 1-phase estimators.
